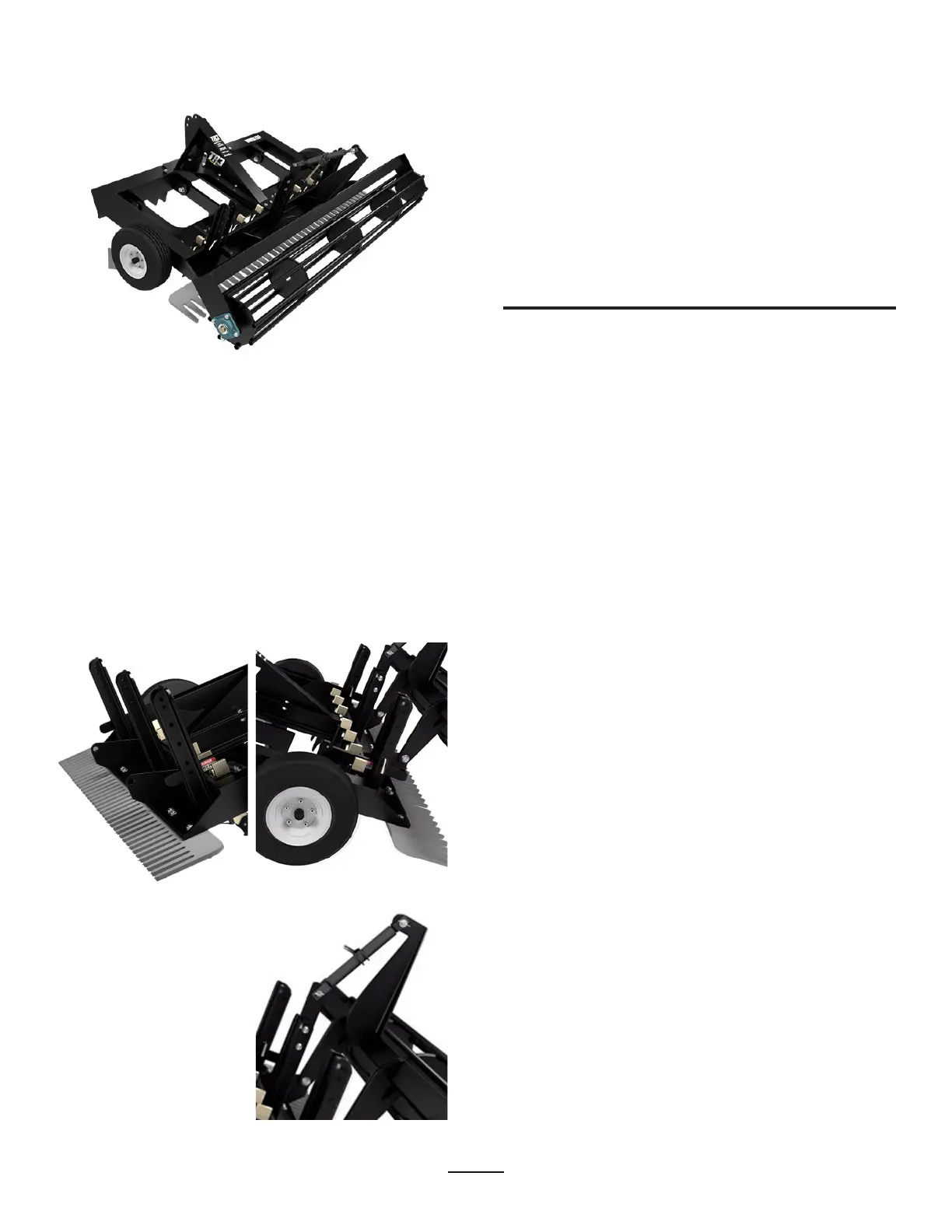

Attaching & Using The TR3
Rolling Basket
Adjusting The Rolling Basket For Use
Step 1:
Make sure the TR3 is setup for normal operation and is
located in an area with a flat hard surface for making
adjustments, refer to section “Attaching and Setting up
the TR3” above for information on setting up the TR3
Step 2:
Next you will attach the Rolling basket starting with the
bottom arms of the Rolling Basket. The bottom arms
of the Rolling basket will connect to the TR3 using the
pre- welded ears located on the back of the TR3 above the
Finish Rake. Secure the Rolling Basket to the TR3 using
the provided hardware.
The ratcheting top link bracket may need to be extended
to allow the bracket to be secured to the TR3. Use the
center handle on the ratcheting top link to extend out
the top link until the bracket is able to be secured the to
center top mast on the TR3.
Step 4:
Adjust the Rolling basket using the center handle for the
ratcheting top link until the rolling basket is sitting off the
ground and is ready for transport. The operational depth
of the rolling basket will need to setup with the TR3 with
the Rolling Basket in the arena.
Step 3:
Now attach the ratcheting
top link bracket on the
Rolling Basket to the TR3.
The ratcheting top link
bracket will attach to the
TR3 using the center mast
on the back of the TR3. Use
the provided hardware to
secure the ratcheting top
link to the center mast.
Step 1:
With the TR3 in the arena, and the Rolling Basket raised to
clear the ground; lower the TR3 down until the wheels are
resting on the surface of the arena.
Step 2:
Using the tractor pull the TR3 forward about 3- 5’ to allow
the TR3 contact points to fully rest against the surface. This
will allow the leveling blade, scarifiers, and finish rake to
all make contact with the surface.
Step 3:
Using the ratcheting top link between the TR3 and the
Rolling Basket, adjust the Rolling Basket until it rest firmly
against the surface of the Arena. **Note to Operator –
Adjust the Rolling Basket so it makes firm contact to the
arena surface, but does li the TR3 o the surface of the
arena.
Step 4:
With the Rolling Basket adjusted to sit firmly on the surface
of the arena, use the tractor to pull the TR3 with the
Rolling Basket adjusted forward 3- 5’.
Step 5:
Check the arena surface behind the TR3 to ensure the
desired results are achieved. The Rolling Basket may need to
be adjusted further to allow for more cushion/ compaction
as desired. Use the ratcheting top link to adjust the Rolling
Basket until the desired results are achieved.
NOTE: Always adjust the Rolling Basket after making
any changes to the setup of the TR3 to ensure the
Rolling Basket is setup for the desired results after
every adjustment.
How to attach the TR3 Rolling Basket
