Ability AI-Vue VS1NL70 Quick Start Guide

AI-Vue Camera Quick Start Guide
4

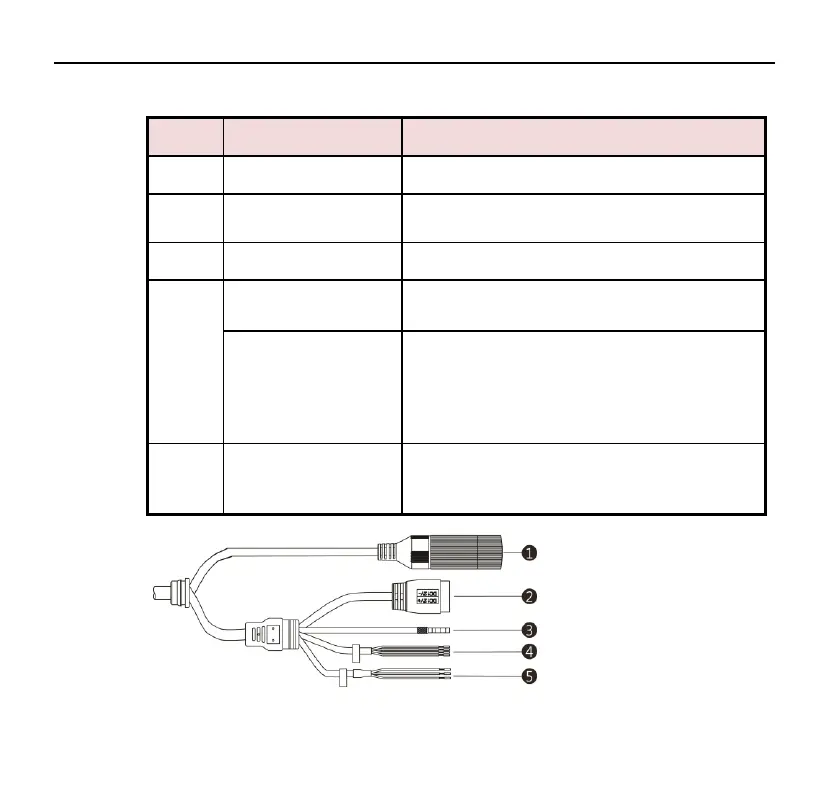

1.4 Cable
No
Item
Description
1
LAN/POE
Ethernet/POE connection. This interface
supports POE.
2
DC 12V+ / DC 12V –
AC 24V + / AC 24V -
Power input interface. DC 12V（9.0V～15.0V）
and AC 24V（18.0V～29.9V）
3
GND
Ground interface of an IPC
4
ALARM_OUT
ALARM_REF
Alarm output and reference interfaces. The
interface work together to form the alarm output.
ALARM_IN
GND
Alarm input interface. There may be multiple
alarm interfaces. For a given number of
interfaces, n, they are numbered (for example:
ALARM_IN0, ALARM_IN1, …,ALARM_INn).
Each one connects to the GND connection to
form a single alarm input.
5
AUDIO IN/
AUDIO OUT/
AUDIO_GND
Audio input/output interface and audio ground
interface.
※ Cable interface
