2.6 Camera mounting

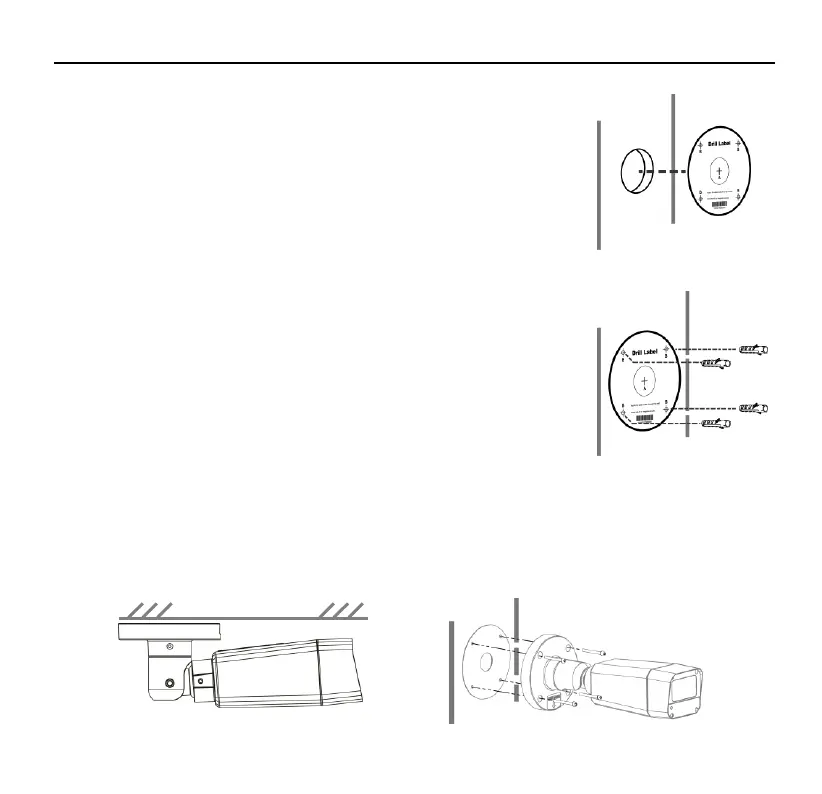

Step 1:
Confirm that the cable outlet on the wall is large enough for the pigtails
to pass through. Affix the drilling sticker to the camera installation
position and ensure that the center of the sticker matches the cable
outlet on the wall.
Step 2:
Use an 5mm drill bit to drill four 35mm deep holes in the positions
marked by the drilling sticker. Use a hammer to carefully drive the
white plastic expansion tubes into the holes.
Step 3:
Connect the external cabling to camera pigtails, insulate the connections (see Cable
Connections), and feed the cabling through the cable entry on the wall. Fasten the tapping
screws. Make sure the cable outlet at the camera base is installed facing downwards and is
sealed with waterproof glue to prevent water from getting into the camera.
