10
7.1 Installing the mounting plate DA104
The operator is installed on the transom, with the main switch located towards the hinge side of the door.
Use the mounting plate DA104 with the door operator ensuring the installation base is level. Securely fi x the
mounting plate to the transom. Minimum requirement for wall profi le is 5 mm (steel).

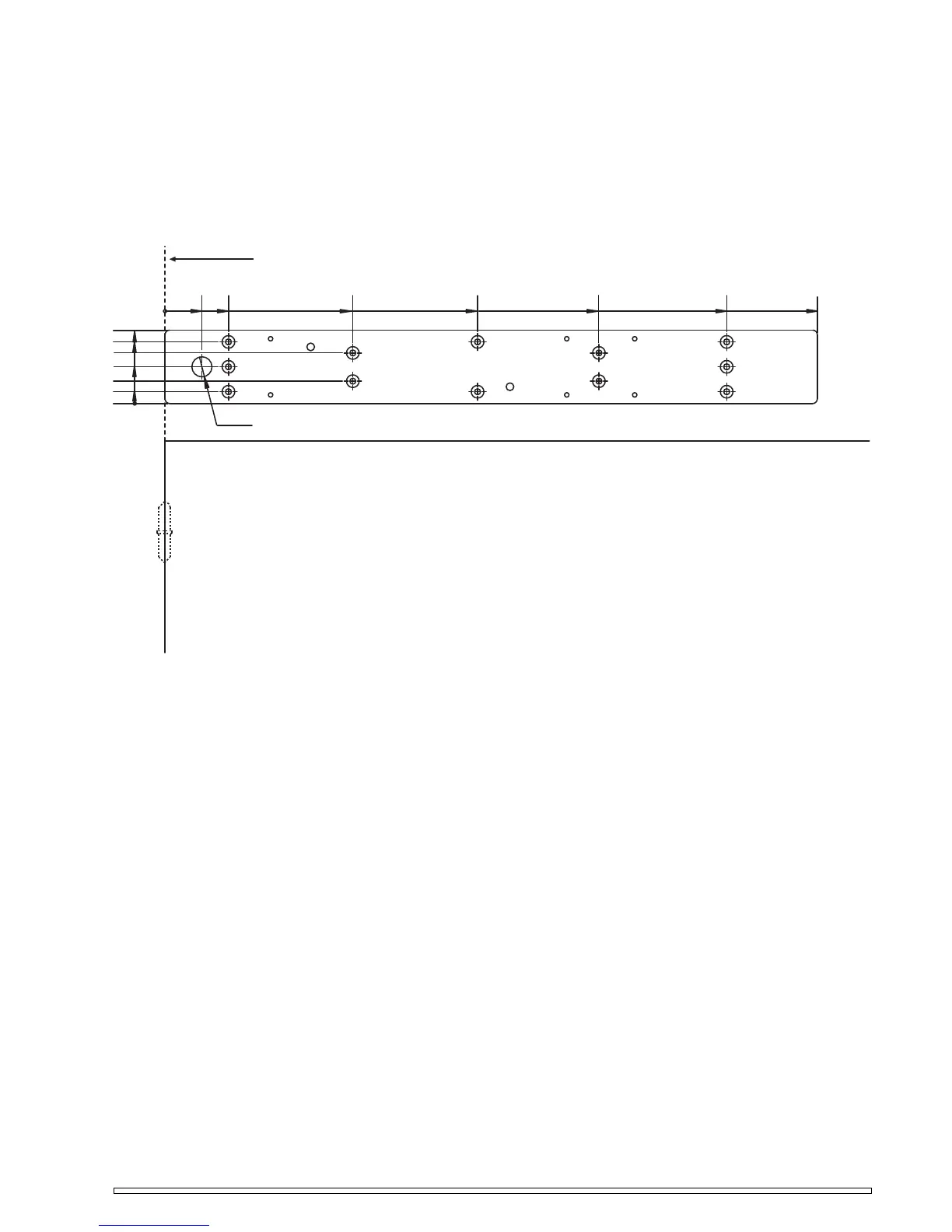

Installation measurements for the standard arms DA147, DA148 and sliding arm DA149 to the closing side.
Ø 22,2
0
68
40,7
0
70
345
207,5
482,5
620
720
81
40,5
13
26,7
54,3
Hinge line
