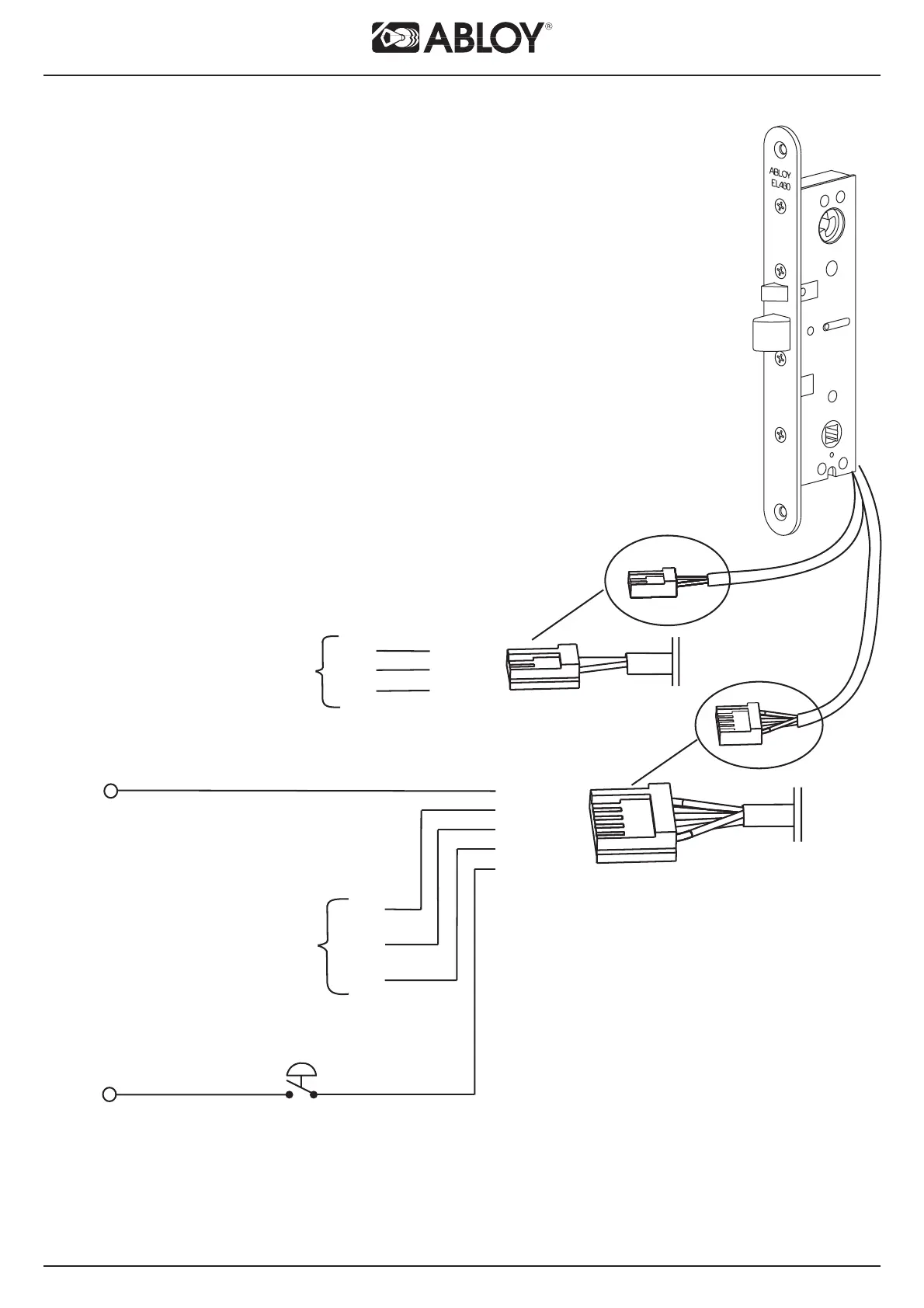

WIRING DIAGRAM
ABLOY
®
EL480, EL482 SOLENOID LOCK
LOCK CASE INCLUDES PROTECTION DIODES
red
black
yellow
blue
green
12 (-10%) - 24 (+15%) V DC STAB
+
-
OPEN/LOCKED
NO
C
NC
CONNECTION CABLE EA210 / EA220
brown
orange
grey
NO
NC
C
NO
C
NC
=
=
=
Handle down
Common
Handle not down
C
NC
NO
=
=
=
Common
Bolt deadlocked
Bolt not deadlocked
MAXIMUM VALUES FOR MICRO SWITCHES:
0.4 A 30V AC RESIST; 0.4 A 30V DC RESIST; MAX. 10W
NO VALUE SHOULD BE EXCEEDED.
