Abov A31G213CL2N User Manual

Pin assignment
3.3 Pin assignment
ENG_A31G213CL2N_StarterKit_HW_Manual_V1.000.00(190312).pptx
1 PA5/T12O/T12C/AN5/CS0/COM12
2 PA6/T11O/T11C/AN6/CS1/COM11
3 PA7/T13O/T13C/AN7/DAO/CS2/COM10
4 PB0/TXD10/MOSI10/AN8/CS8/COM9
5 PB1/RXD10/MISO10/AN9/CS9/COM8
6 PB2/EC13/SCK10/AN10/CS10/COM7
7 PB3/BOOT/SS10
8 PB4/TXD0/SWCLK
9 PB5/RXD0/SWDIO
10 PB6/TXD1/EC11/AN11/CS17
11 PB7/RXD1/AN12/CS18
12 PC0/T20O/T20C/AN13/CS19/COM6
13 PC1/T21O/T21C/CS20/COM5
14 PC2/EC20/MOSI20/CS21/COM4
15 PC3/EC21/MISO20/CS22/COM3
16 PC4/SCK20/CS23/COM2
17 PD0/SCL0/SS20/COM1
18 PD1/SDA0/EC10/COM0
19 PD2/TXD11/MOSI11/SEG9
20 PD3/RXD11/MISO11/SEG8
21 PD4/BLNK/SCK11/SEG7
22 PD5/SS11/SEG6
23 VDD
24 VSS
48 PA4/AN4/CS7/COM13
47 PA3/AN3/CS6/COM14
46 PA2/EC12/AN2/AVREF/CS5/COM15
45 PA1/SCL1/AN1/CS4
44 PA0/SDA1/AN0/CS3
43 VDD
42 VSS
41 PF0/SCL1/XOUT
40 PF1/SDA1/XIN
39 PC5/RESET
38 PF2/TXD1/EC30/SXIN
37 PF3/RXD1/T30C/SXOUT
36 PF4/CLKO
35 PF5/BLNK/INT
34 PF6/EC30/SCL0
33 PF7/T30C/SDA0
32 PE0/PWM30AA
31 PE1/PWM30AB
30 PE2/PWM30BA/SS21/CS16/SEG0
29 PE3/PWM30BB/SCK21/CS15/SEG1
28 PE4/PWM30CA/MISO21/CS14/SEG2
27 PE5/PWM30CB/MOSI21/CS13/SEG3
25 PE6/T10O/T10C/CS12/SEG4
25 PE7/T11O/T11C/CS11/SEG5
Pin color legend
VDD
GND
PA
PB
PC
PD
PE
PF
CN1 CN2

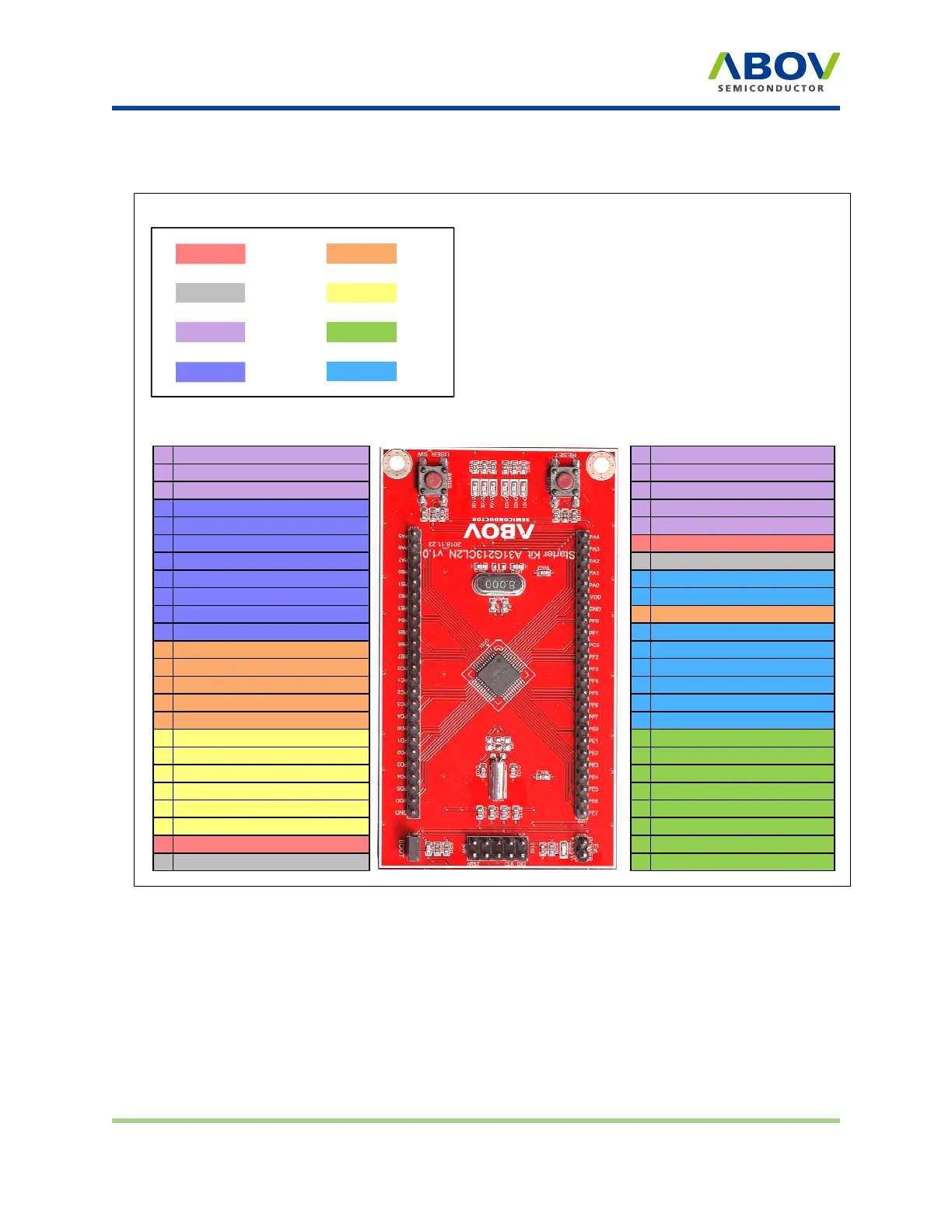

Figure 6: Pin assignment
Starter Kit Hardware A31G213CL2N v1.0 Page 8 / 8 Version 1.0.0
