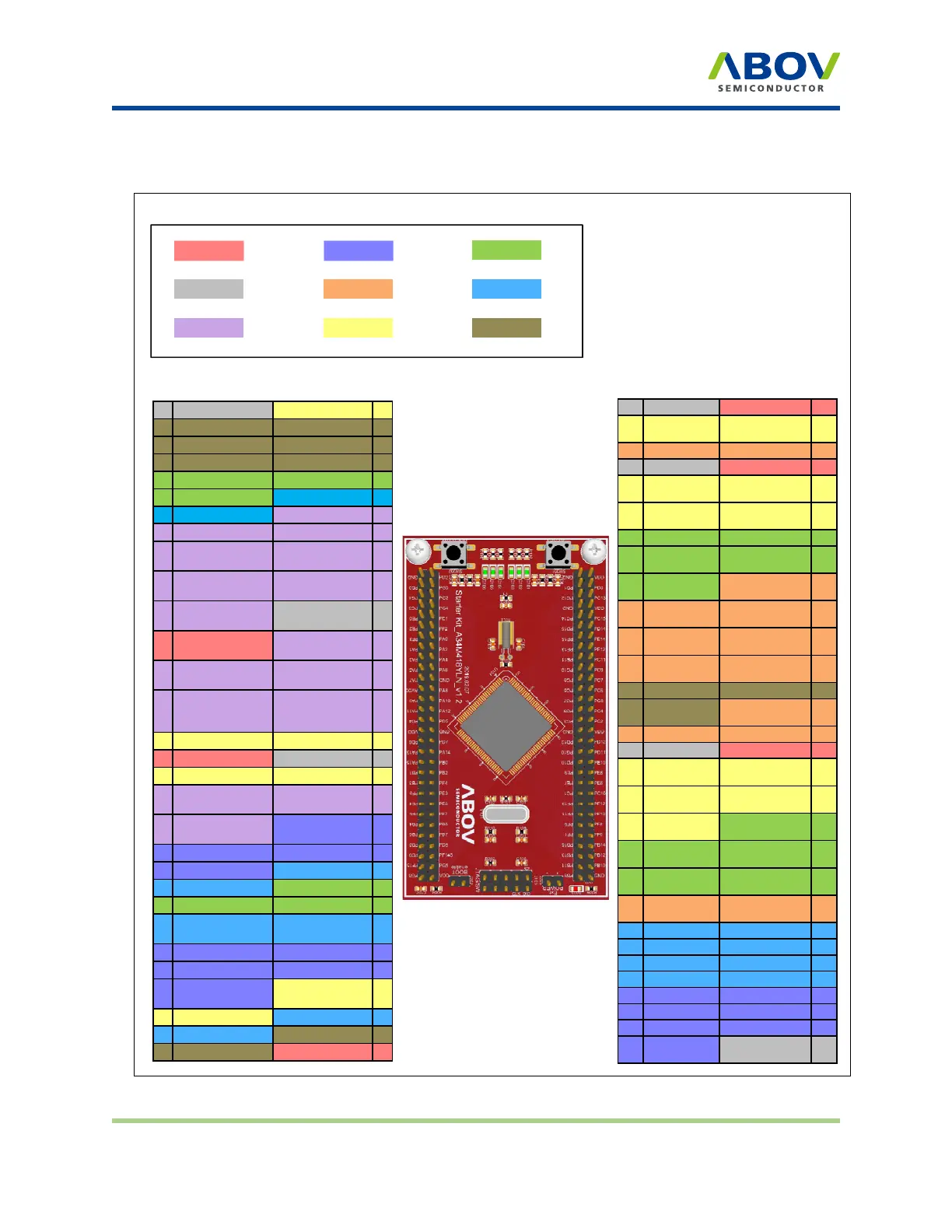

ENG_A34M418YLN_StarterKit_HW_Manual_V1.200.00(190312).pptx
1 GND MOSI1/PD2 2
3 MISO1/PD3 SS2/PG0 4
5 SCK2/PG1 MOSI2/PG2 6
7 MISO2/PG3 PG4 8
9 PE0 CP2/AN20/PE1 10
11 CREF2/AN21/PE2 CP3/AN22/PF2 12
13 CREF3/AN23/PF3 AN0/PA0 14
15 AN1/PA1 AN2/PA2 16
17 AN3/PA3
CP0A/T0IO/
AN4/PA4
18
19
CAPEU/CP0B/
T1IO/AN5/PA5
CAPEV/CP0C/
T2IO/AN6/PA6
20
21
CAPEW/CREF0/
T3IO/AN7/PA7
AGND 22
23 AVDD
CP1A/CAN_RX/
AN8/PA8
24
25
CP1B/CAN_TX/
AN9/PA9
SCAPEU/CP1C/
RXD1/AN10/PA10
26
27
SCAPEV/CREF1/
TXD1/AN11/PA11
SCAPEW/SS0/
QEI0_UPDN/
AN12/PA12
28
29 SCL1/AN16/PD4 SDA1/AN17/PD5 30
31 VDD GND 32
33 PD6/AN18/TXD2 PD7/AN19/RXD2 34
35
PA13/AN13/
SCK0/QEI0_A
PA14/AN14/MOSI0/
QEI0_B/PRTINEV
36
37
PA15/AN15/MISO0/
QEI0_IDX/OVINEV
PB0/MP0UH 38
39 PB1/MP0UL PB2/MP0VH 40
41 PB3/MP0VL PF4/TXD5 42
43 PF5/RXD5 PE3/SCL0 44
45 PE4/SDA0 PE5/T5IO 46
47
PF6/PRTINEW/
CAN_RX
PF7/OVINEW/
CAN_TX
48
49 PB4/MP0WH/T8IO PB5/MP0WL/T9IO 50
51 PB6/PRTIN0U PB7/OVIN0U 52
53
PB8/PRTIN1U/
RXD3
PD8/T6IO/WDTO 54
55 PD9/T7IO/STBYO PF14 56
57 PF15 PG5 58
59 PG6 VDD 60
120 GND VDD 119
118
SCK1/SXOUT/
PD1
SS1/SXIN/PD0 117
116 XIN/PC12 XOUT/PC13 115
114 GND VDD 113
112
RXD0/MOSI0/
PC14
TXD0/MISO0/
PC15
111
110
AD2E/SCK0/
PD15
AD2S/SS0/PD14 109
108 PE15 T3IO/RXD4/PE14 107
106
T2IO/TXD4/
PE13
T1IO/SDA1/PE12 105
104
T0IO/SCL1/
PE11
BOOT/T9IO/PC11 103
102
nRESET/
PC10
CLKO/T8IO/PC9 101
100
SDA0/T4IO/
PC8
SCL0/T3IO/PC7 99
98
TXD1/T2IO/
PC6
RXD1/T1IO/PC5 97
96 PG7 RXD3/PG8 95
94 TXD3/PG9
T0IO/nTRST/
PC4
93
92 TDI/PC3 TDO/PC2 91
90 GND VDD 89
88
PD13/AD1E/
T3IO
PD12/AD1S/
T2IO
87
86 PG10
PD11/AD0E/
T1IO
85
84
PD10/AD0S/
T0IO
PE10/T9IO 83
82
PE9/T8IO/
QEI1_IDX
PE8/T7IO/
QEI1_B
81
80
PE7/
T6IO/QEI1_A
PE6/T5IO/
QEI1_UPDN
79
78
PC1/TMS/
SWDIO/TXD0
PC0/TCK/
SWCLK/RXD0
77
76 PF13 PF12 75
74 PF11 PF10 73
72 PF9 PF8 71
70 PF1 PF0 69
68 PB15/MP1WL PB14/MP1WH 67
66 PB13/MP1VL PB12/MP1VH 65
64 PB11/MP1UL PB10/MP1UH 63
62
PB9/OVIN1U/
TXD3
GND 61
J101 J102
Pin color legend
VDD
GND
PA
PB
PC
PD
PE
PF
PG
