Absen C165 Series - Wall-Mounted Installation Method; Assemble Frame

Absenicon3.0 C165 User Manual
14
2.2 Installation method of wall-mounted
2.2.1 Assemble frame
Take out the frame from the packing box, including the cross beam and vertical beam. Place it on the ground
with the front facing upwards (the side with the silk-printed logo on the beam is the front);

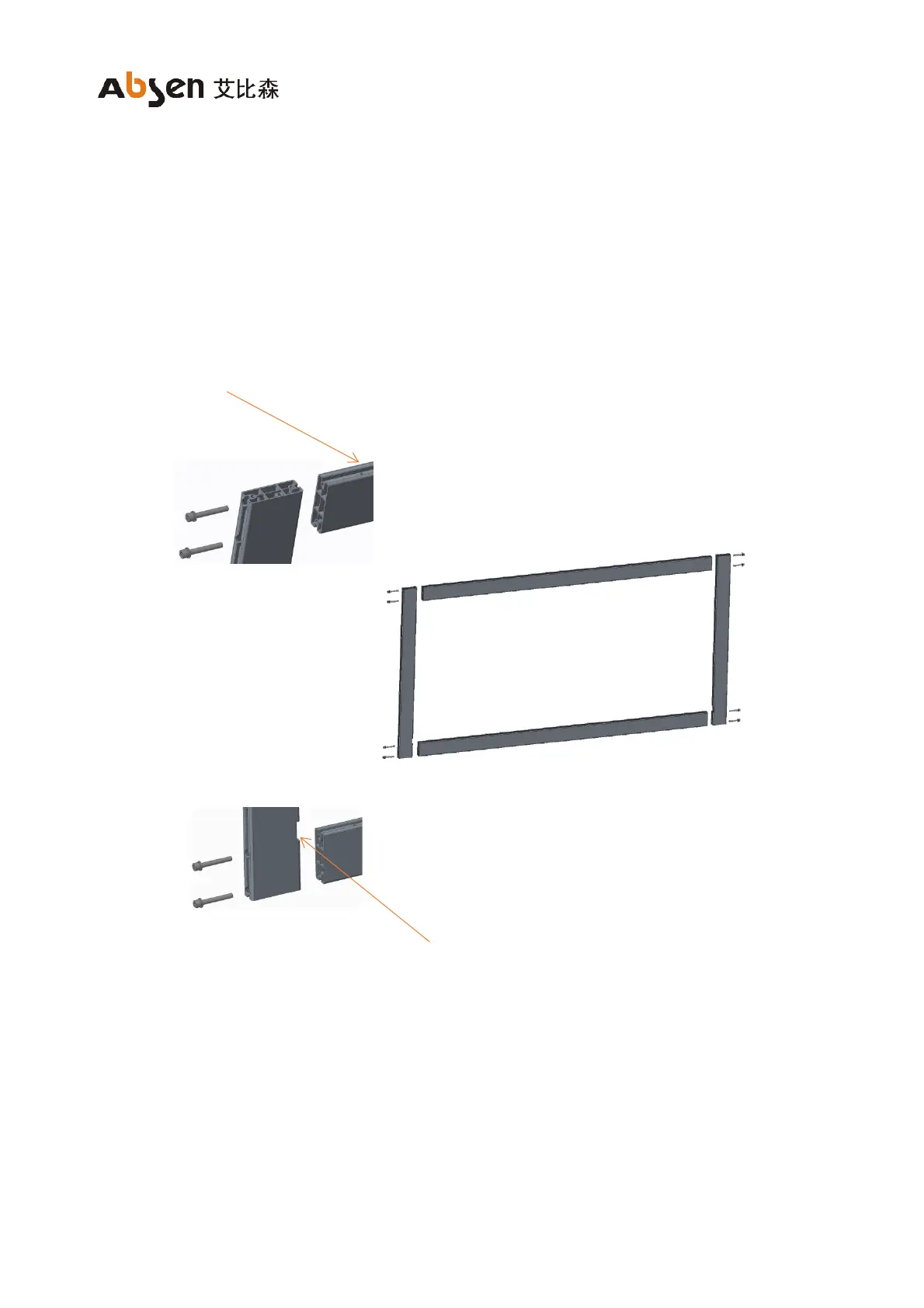

Assemble the four sides of the frame, including two beams, two vertical beams and 8 M8 screws.
横梁
The side of the beam with screw holes is facing up
vertical beam
The vertical beam has a gap on the side facing inward
