Absolute HP Series - Page 6

HP- 100
/
120

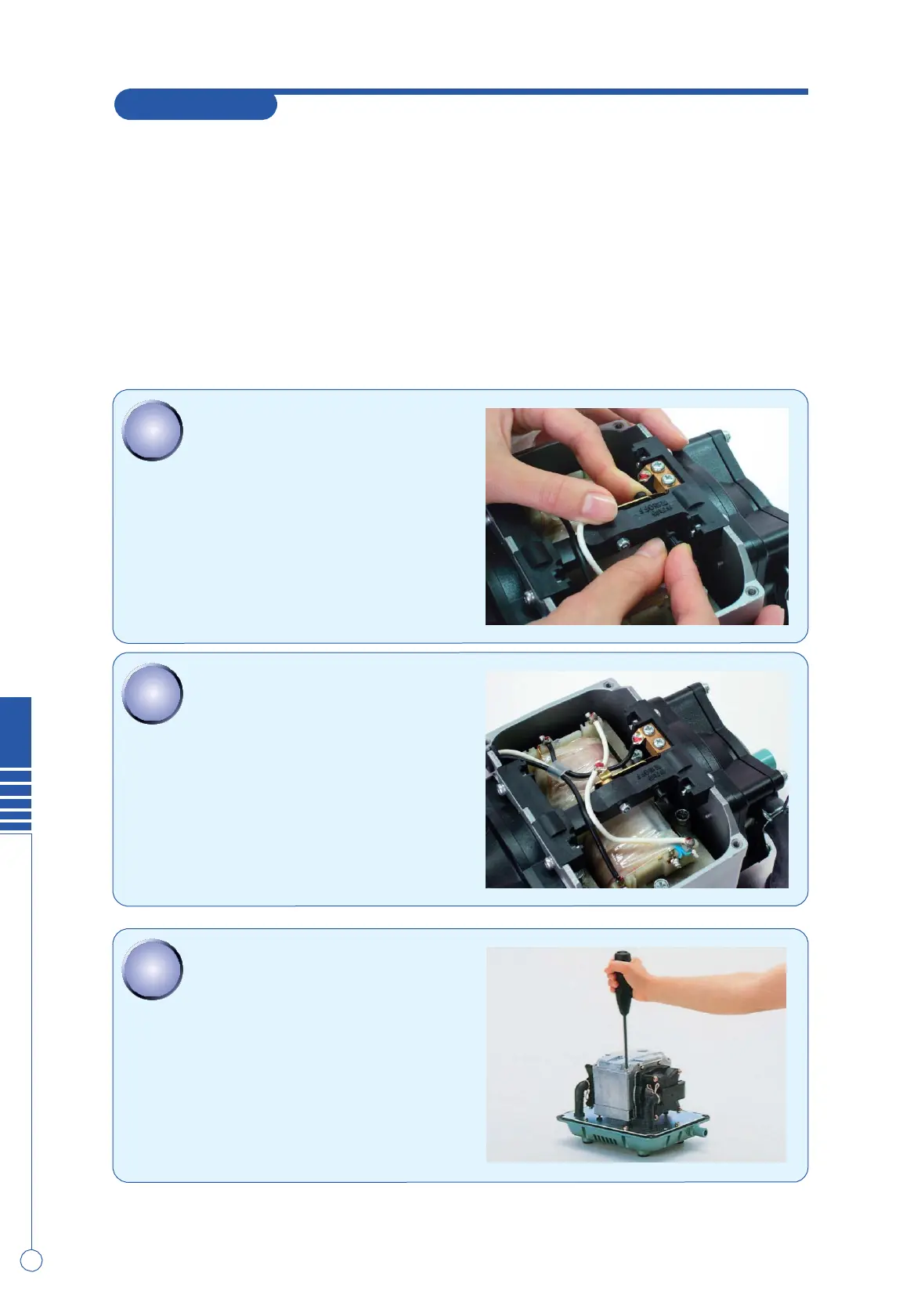

REPLACING THE CHAMBER BLOCK
HP
Replacing the Chamber Block
S
S
T
T
E
E
P
P
1
1
6
6
Insert a new safety pin through the hole on the
terminal side.
(Please Insert safety pin through the
spring
electrode, L-shaped lever in such order.)
S
S
T
T
E
E
P
P
1
1
7
7
Install the locking collar from the other side of the
terminal and insert it until it clicks.
S
S
T
T
E
E
P
P
1
1
8
8
This completes the replacement of the safety pin
procedure.
Make sure the gap between L-shaped lever
and
tab of the actuating rod is even.
●Be careful not to touch the terminal when the power is
on, testing the operating conditions as this will result
in
an electric shock.
●Unplug the pump immediately after the check.
S
S
T
T
E
E
P
P
1
1
9
9
Secure the frame cover with the screws.
6
