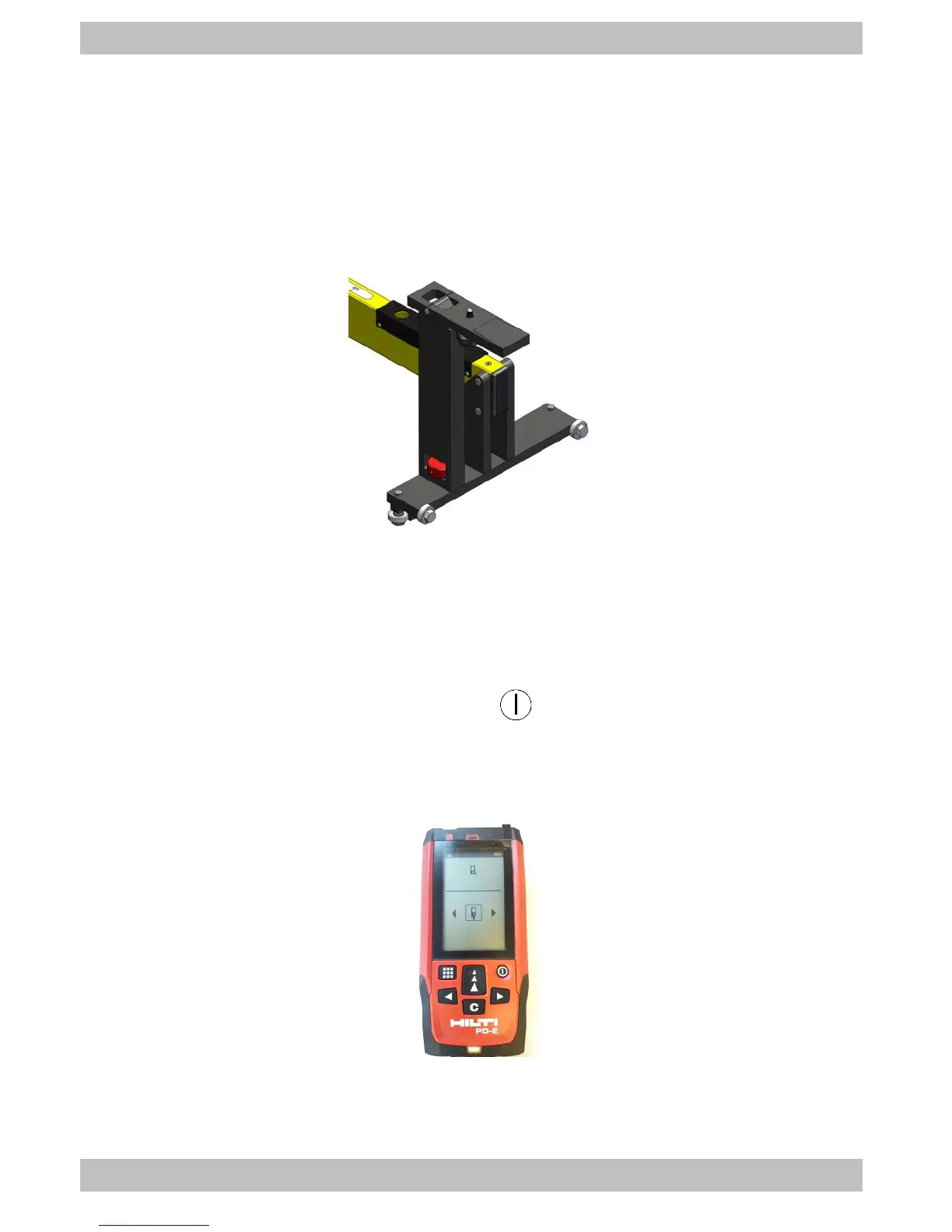

2. Place the laser unit into the holder at the top of the vertical beam and fix
in place using the screw provided.
3. Screw the REFOS bracket to the rail foot of the gauge. The REFOS
bracket may be fitted to either side of the gauge as required
(see Figure 3).
4.3 Operating the Laser
1. Switch on the laser by pressing the situated on the right hand side of
the unit.
a. If the laser unit is mounted on the top holder appears the
following screen.
