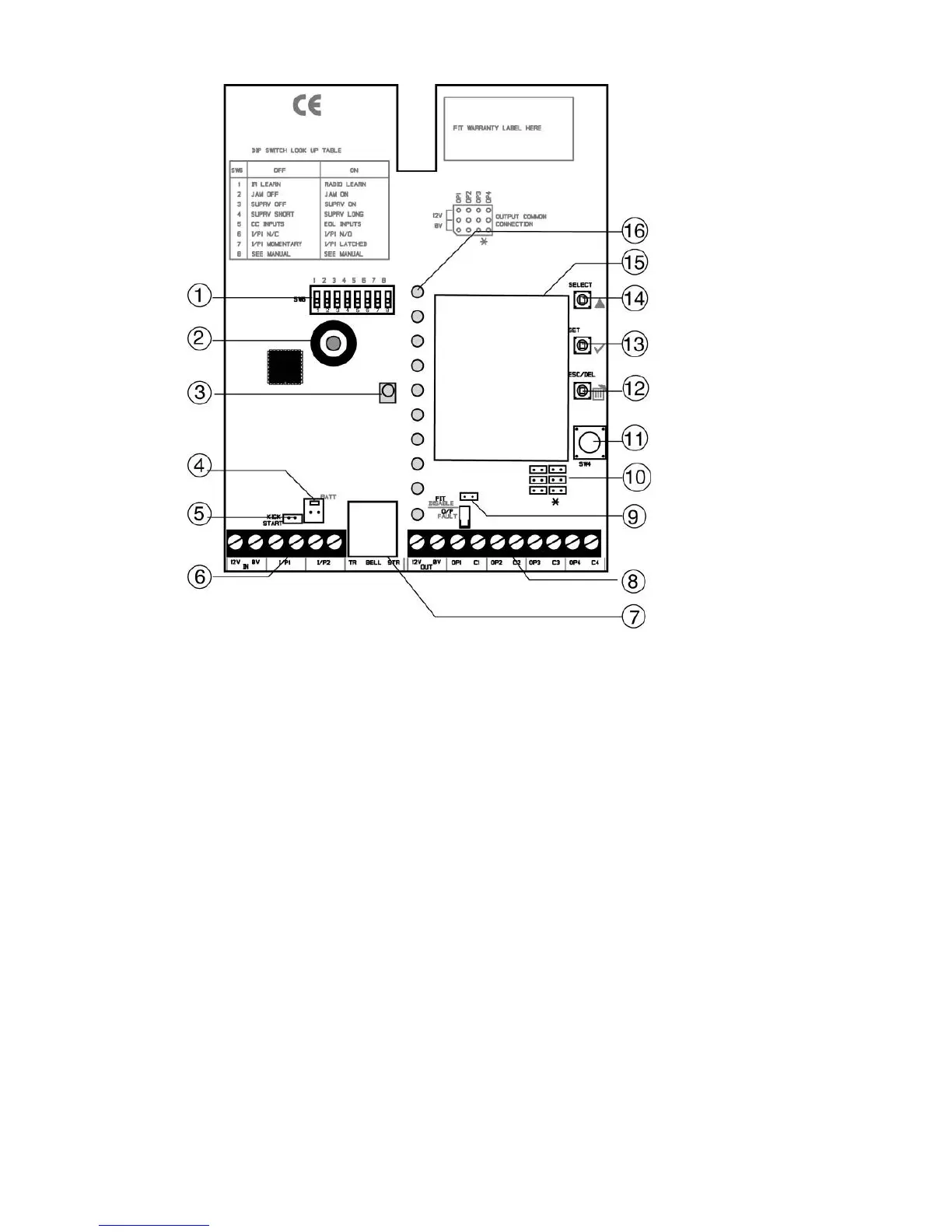

4.3 PCB
1. DIP switches
2. Piezo signaller
3. IR LED receiver
4. Battery connection
5. Kickstart jumper connection
6. Power supply connection and zone inputs
7. RJ12 plug for external sirens
8. Voltage output and relay output
9. Fit disable jumper connection
10. Jumper connections for output configuration
11. Tamper contact
12. ESC/DEL key
13. SET key
14. SELECT key
15. Transmitter/receiver unit
16. LED displays (detector channels)
