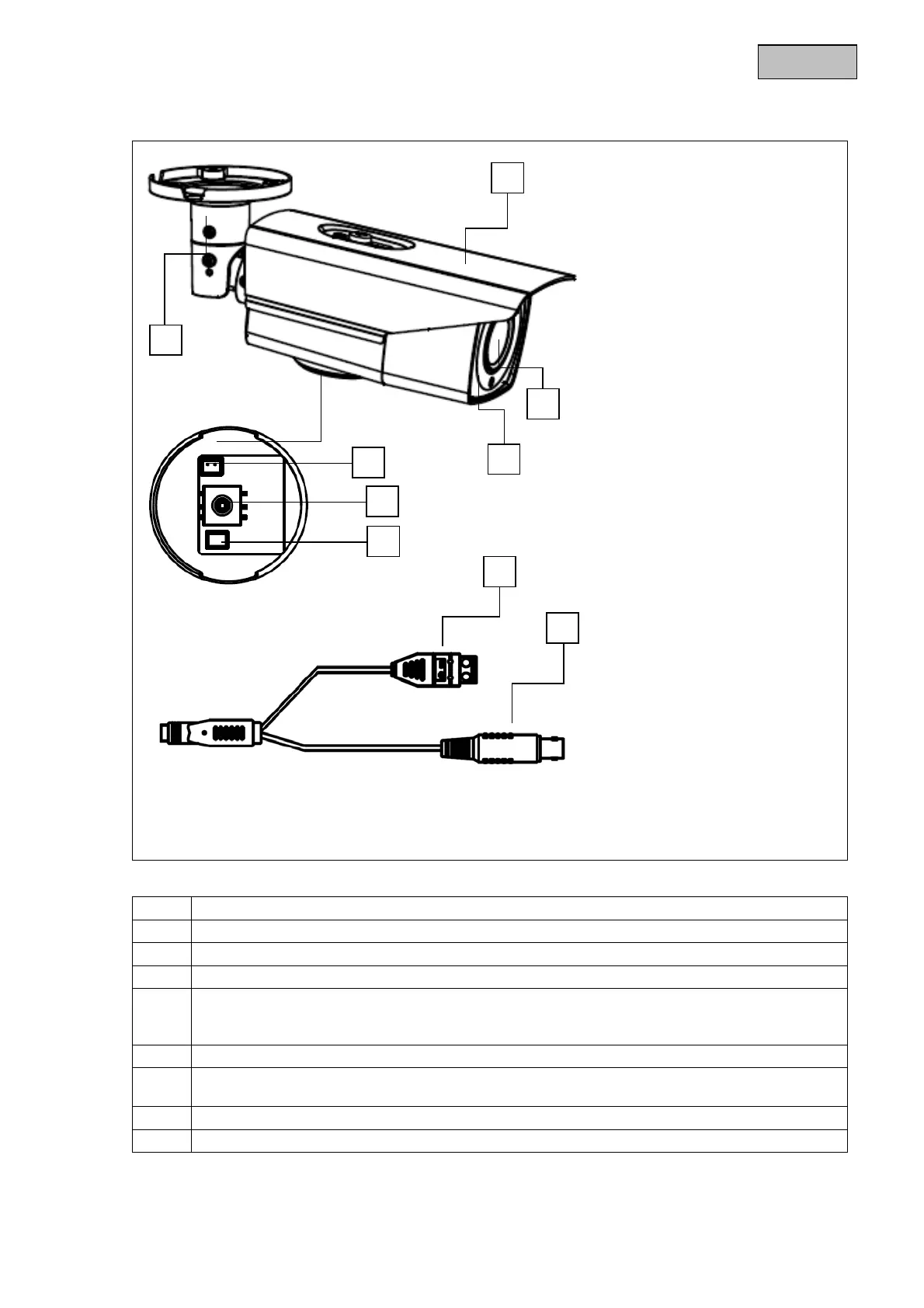

4. Camera description
1 Camera mount
2 Adjustable sun shield
3 Lens
4 Infrared LEDs
5 Additional connection for a video output (2-pin adapter provided in scope of delivery)
This output (5) always has the same signal type as the normal video output (8), for every
switch position (7).
6 Joystick for controlling the on-screen display (OSD), including zoom/focus functions
7 Switch for switching between 2 or 3 megapixel and a PAL analogue resolution (for
connection 5 and 8)
8 Two-pin power supply connection – polarity does not need to be observed
9 HD-TVI video output (BNC, labelled 'TVI')
