4. Camera description

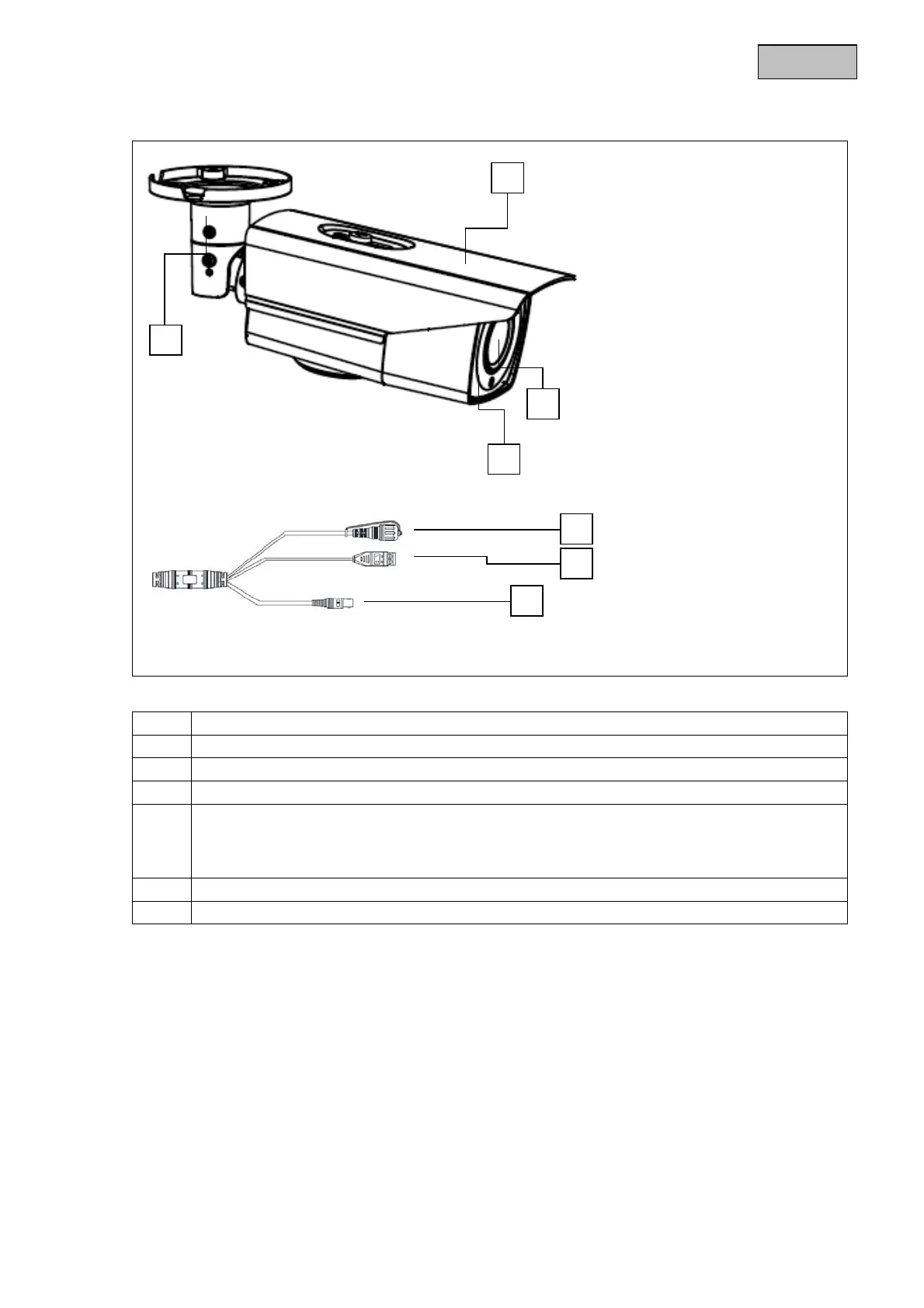

1 Camera mount
2 Adjustable sun shield
3 Lens
4 Infrared LEDs
5 Button for switching between different video formats:
TVI / AHD / CVI / CVBS
This function is only available in the 4M @ 25fps and 4M30fps resolutions (keep the button
pressed for lon
g
er than 3 seconds
)
6 Power supply (12 VDC or 24 VAC, 2-pin connection, polarity does not need to be observed)
7 Video output (BNC, labelled 'TVI')
