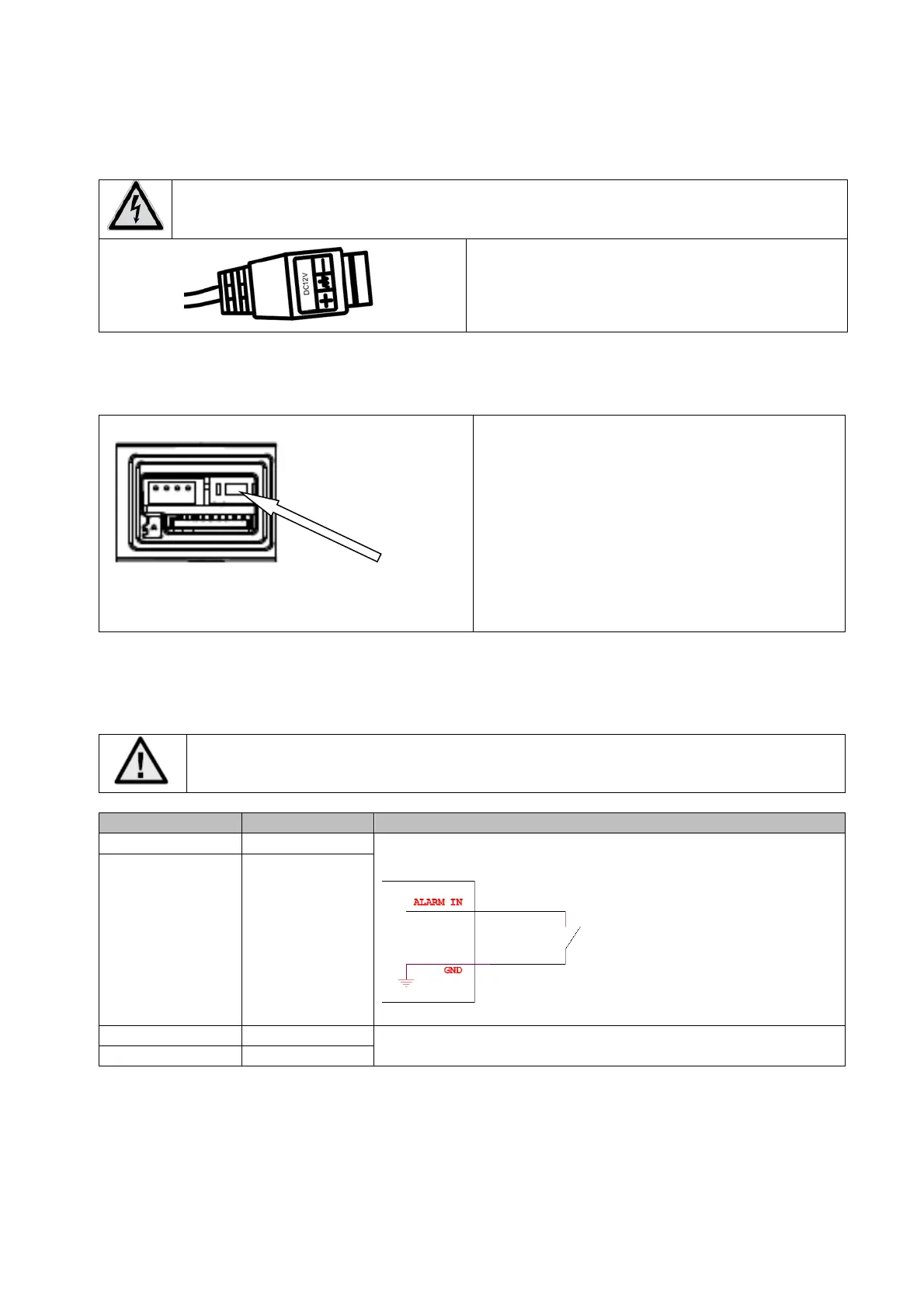

3.2 Power supply
IMPORTANT!
Before starting installation, ensure that the power supply voltage and the rated voltage
of the camera are identical.
When connecting the 12 VDC power supply,
pay attention to the polarity (+ / -). The central
port is not used.
3.3 Restoring the settings (reset)
In order to operate the reset button, you must
first remove the cover on the underside of the
camera.
1. Turn off the camera.
2. Press and hold the “Reset” button on the
camera.
3. Now connect the power supply to the
camera (using 12 VDC or Power over
Ethernet) and hold down the “Reset” button
for a further 30 seconds.
3.4 Switching input/switching output
The maximum load values must be observed, otherwise the camera may be
damaged irreparably.
Name Connection instructions
Switching input “IN” Jumper between “IN” and “G”
“G”
Switching output “1
A
” Max. 12 V DC, max. 50 mA
“1B”
