45

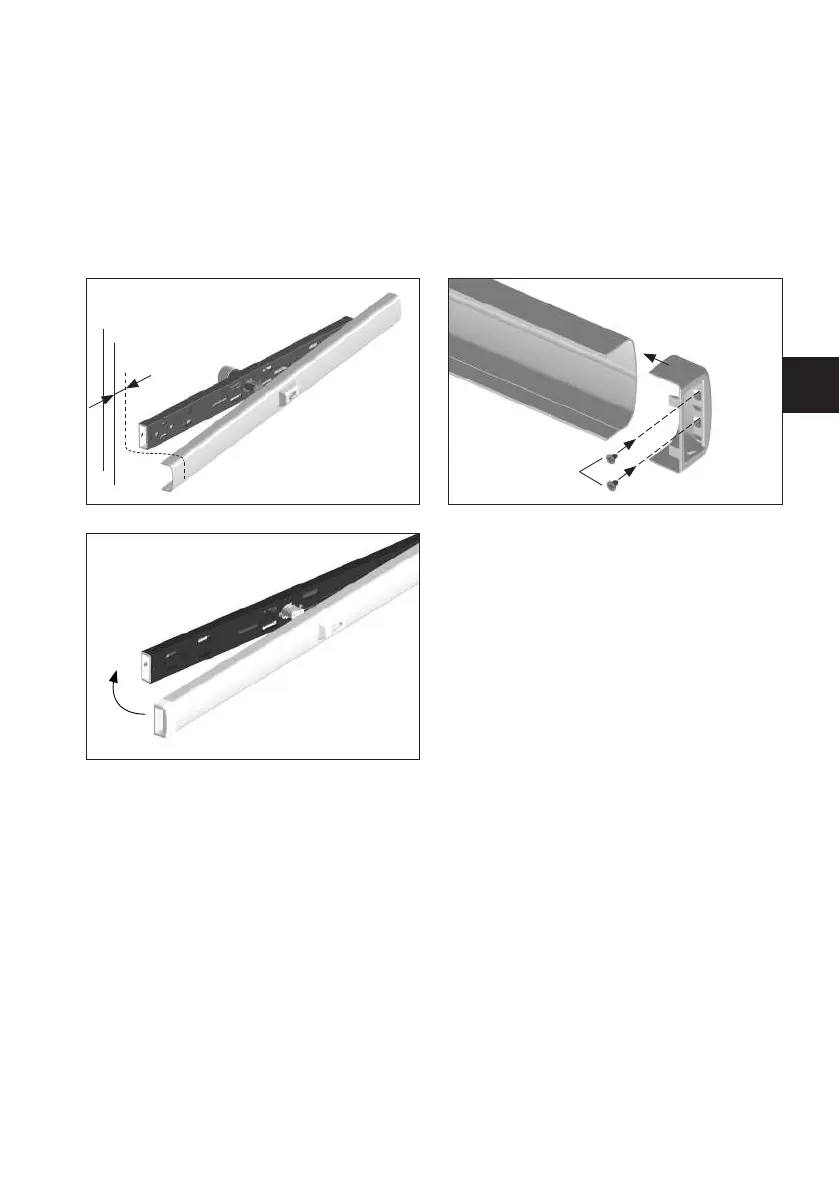

1. Close the door, hold the cover onto the lock body and first mark and make a cut of
3-15 mm on both sides according to the door frame width, z.B. with a metal saw
(Fig. 18).
2. Press down the door bar guides and secure with 2 screws 3.5 x 6.5 mm (Fig. 19).
Caution! Do not overwind.
3. Press down the cover onto the lock body (Fig. 20).
Fig. 19
1.
3.
2.
Fig. 20
Abb. 18
3
–
1
5 mm
Fig. 18
GB
