15

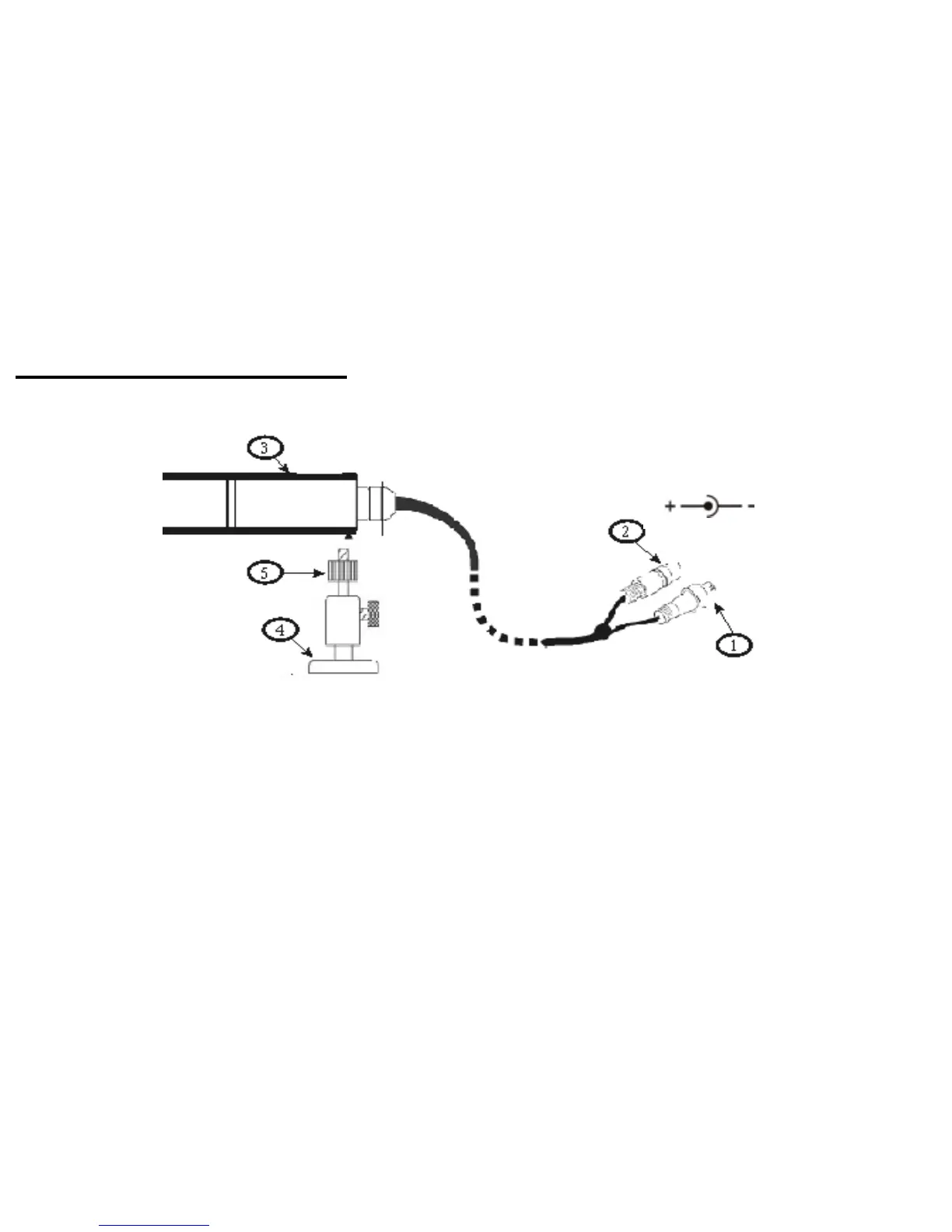

6. Description of the camera
(1) Video output connector (VIDEO OUT)
BNC output. This connector is for connecting the camera video signal to other equipment
(signal level: 1Vp-p).
(2) Power input
12V DC voltage. Approved for DC voltage are class 2 power supply units only. Ensure the
polarity is correct.
