6.2 Power supply
Before starting installation, ensure that the power supply system voltage and the rated voltage on
the camera are identical.

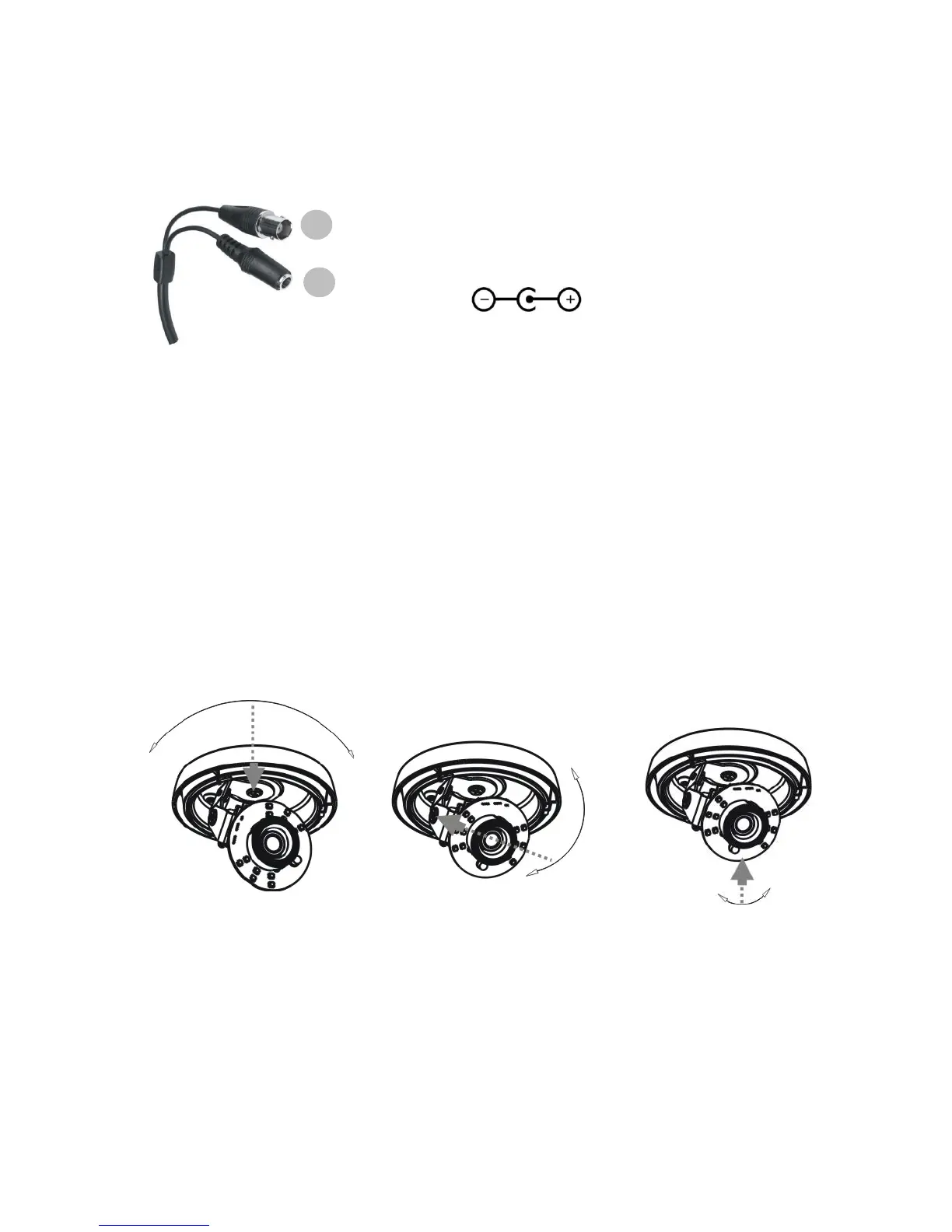

(1) Video signal (BNC)
(2) Power supply
12 V DC (5.5 x 2.1 mm)
The cameras have a 12 V DC power supply. Ensure correct polarity when connecting it. A plug-in
power supply unit (round plug, 5.5 mm x 2.1 mm) is provided for the connection.
6.3 Installing the video cable
In order to transmit the video signal to a converter, monitor, or recorder, a coaxial cable of type
RG59 with BNC plug (male) must be connected to the “Video OUT” connection. The cable length to
the next device may not exceed 150 meters. To increase the range, you can install suitable signal
repeaters.
6.4 Aligning the camera
The camera can now be aligned in 3 axes.
Pan (1st axis)
Tilt (2nd axis) Rotation (3rd axis)
(Illustration: TVCC34500)
1
2
