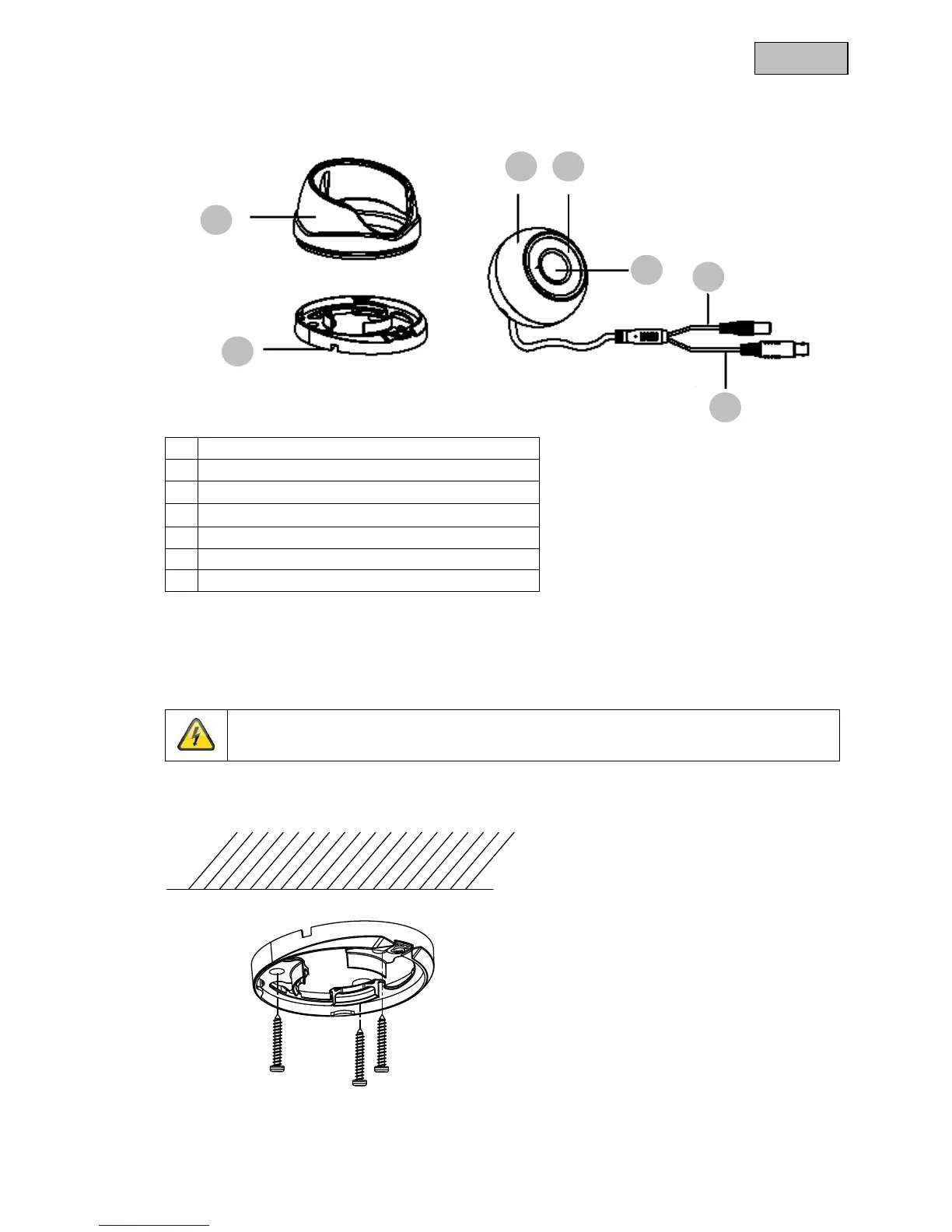

4. Camera description
1
Camera cap
2
Base plate
3
Camera body
4
IR LEDs
5
Lens
6
Power supply
7
Video signal
5. Mounting / installation
5.1 Mounting the camera
IMPORTANT!
The camera must be disconnected from the power supply during installation.
Loosen the fixing screws for the camera cap and remove them. Use the accompanying drilling template
for drilling the mounting holes. Secure the base plate with the screws and dowels provided.
