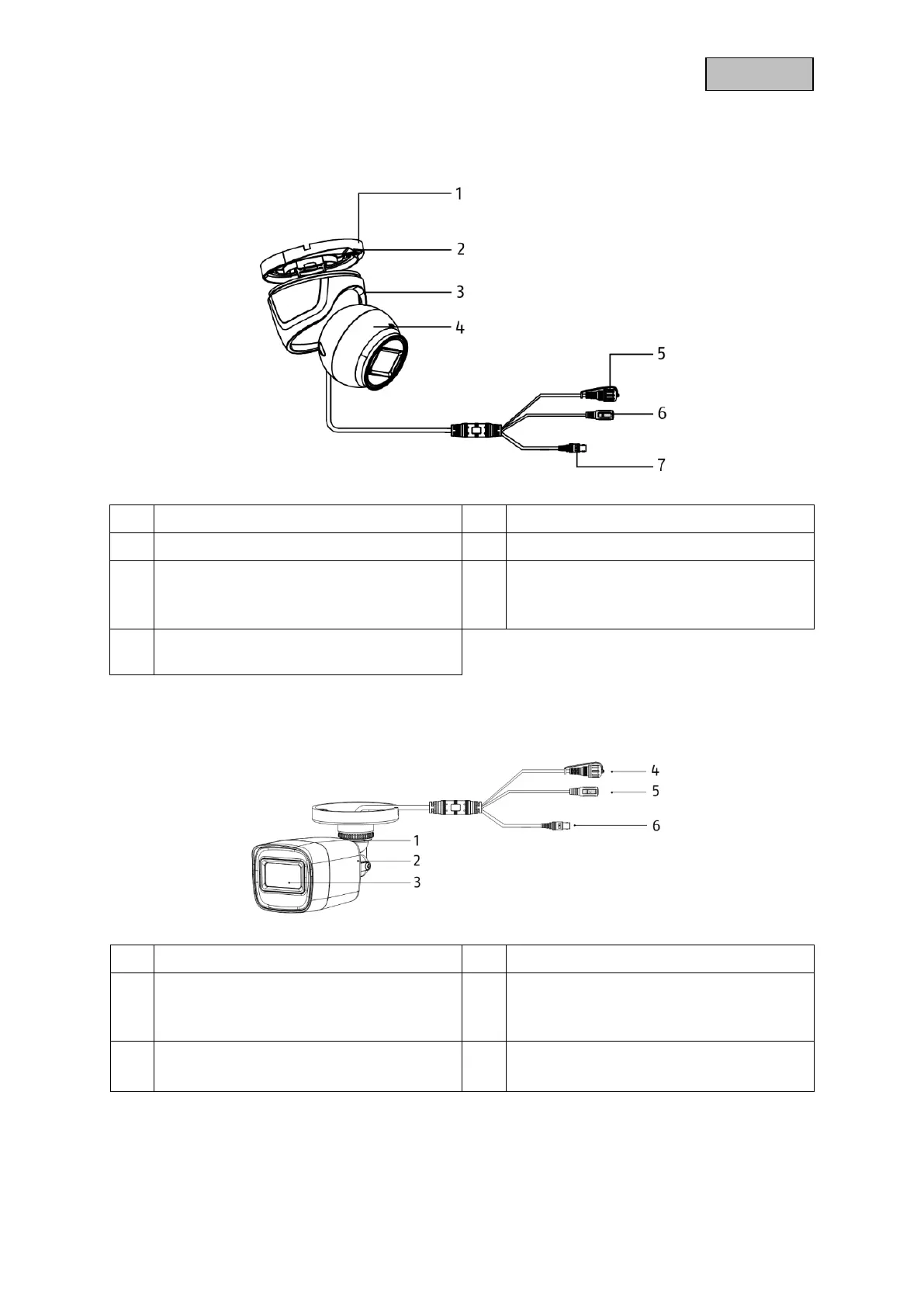

2. Description of hardware
2.1. HDCC34011
1
Camera base plate
2
Locking plate
3
Camera cap
4
Camera
5
Toggle switch
For switching between analogue formats
(CVBS / TVI / CVI / AHD)
6
Power supply connection
(5.5 x 2.1 mm, barrel connector)
7
BNC video output (CVBS / TVI / CVI /
AHD)
2.2. TVCC40011
1
Camera wall bracket
2
Camera
3
Lens
4
Toggle switch
For switching between analogue formats
(CVBS / TVI / CVI / AHD)
5
Power supply connection
(5.5 x 2.1 mm, barrel connector)
6
BNC video output (CVBS / TVI / CVI /
AHD)
