Abus TVHD50000 - 7 Rear View of the Camera

26

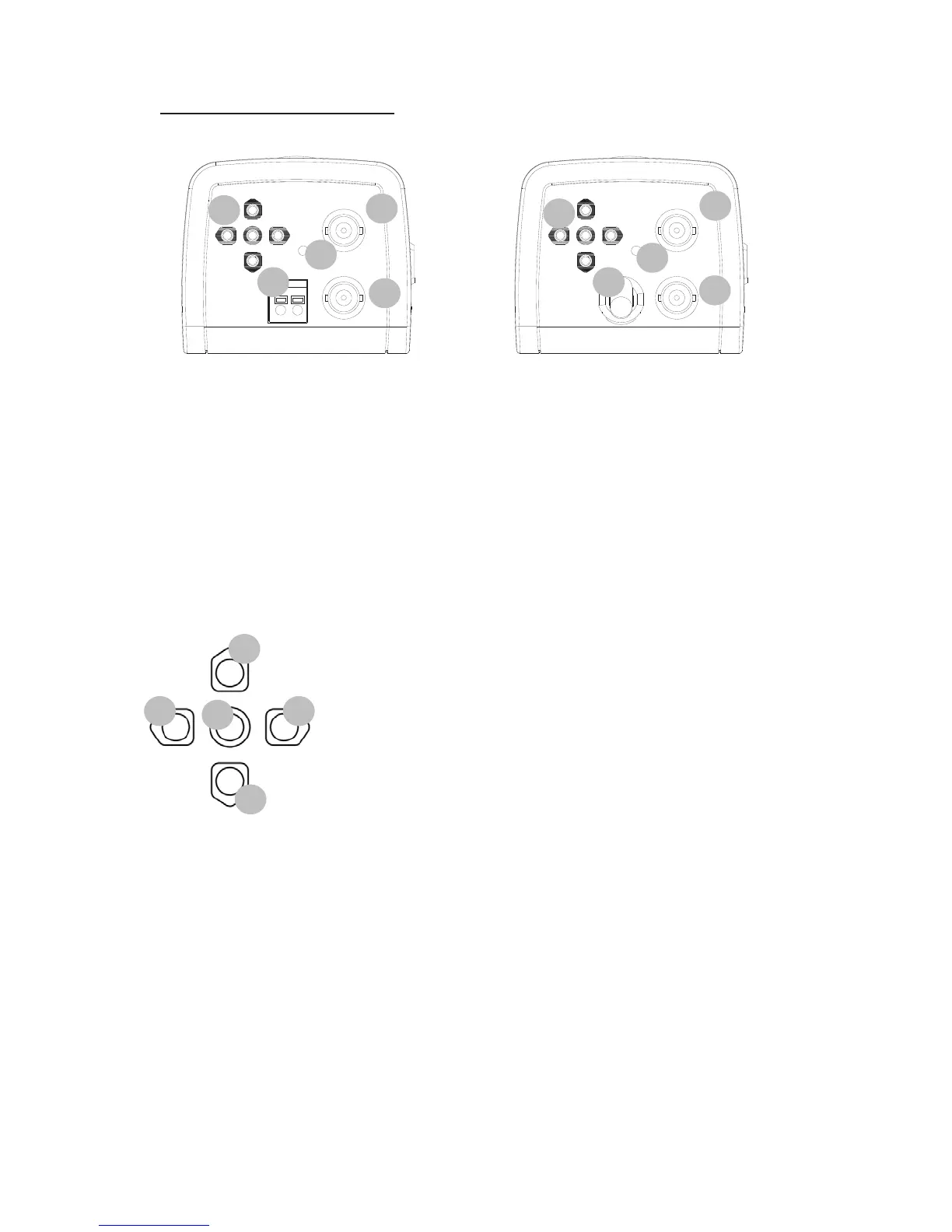

7. Rear view of the camera
12 V DC/24 V AC version 110~240 V AC version
(1) OSD buttons
(2) Power supply connection (12 V DC/24 V AC or 110 – 240 V AC)
(3) Status LED (active when voltage present)
(4) BNC test monitor output (MONITOR)
(5) BNC HD-SDI video output (HD-SDI)
Buttons Function
(1) Enter : Enter menu / Perform action
(2) Up : Navigation in the menu
(3) Down : Navigation in the menu
(4) Left : Decrease value / Select option
(5) Right : Increase value / Select option
POWER
12VDC
24VAC
HD-SDI
MONITOR
POWER
HD-SDI
MONITOR
110~240VAC
2
3
4
1
5
1
4
3
2
5
5
2
1
4
3
