AC Infinity CLOUDLAB Series - Tent Setup Guide; Standard Cloudlab Models Assembly

10
TENT SETUP

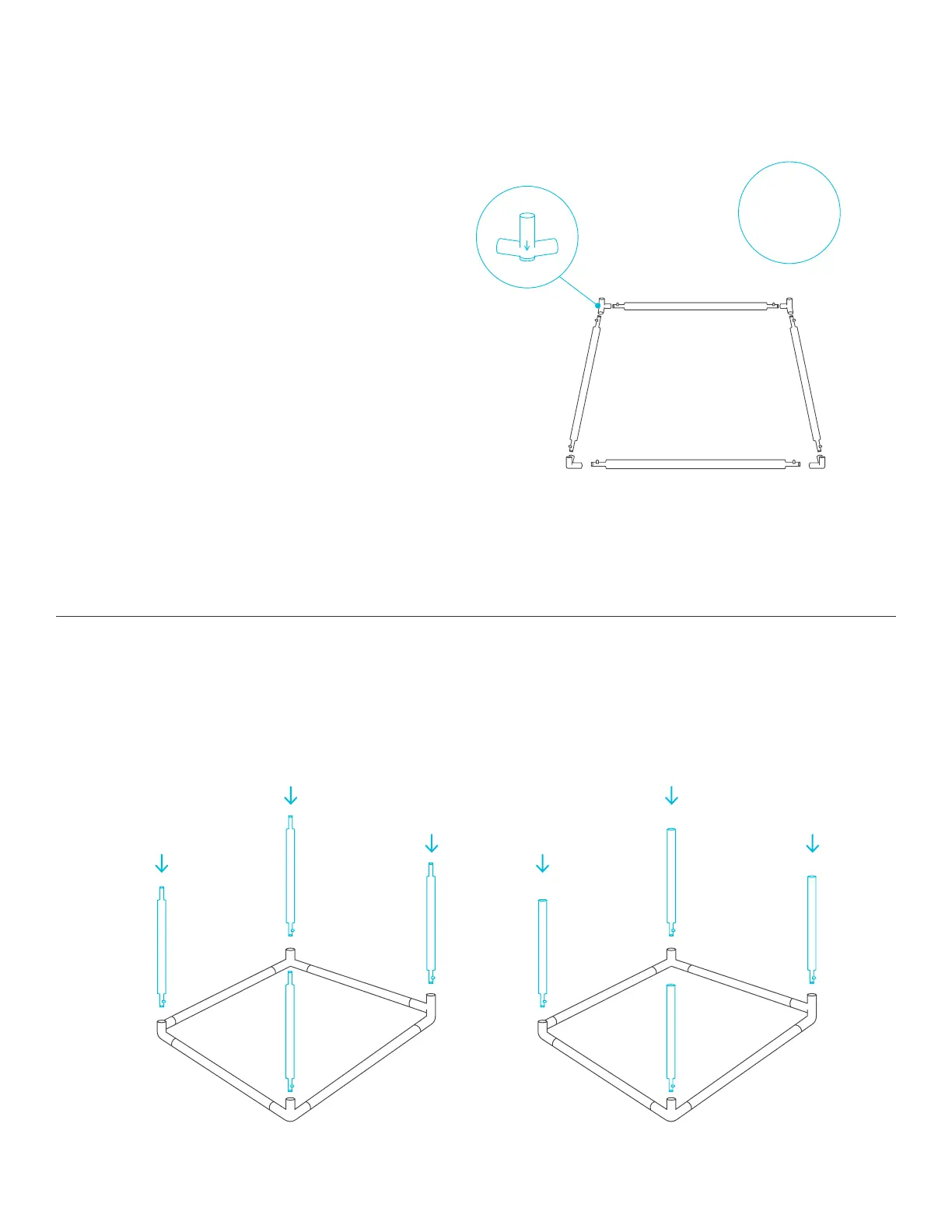

STEP 1
Insert the eight (A) poles and into the floor
end of the corner (D1) pieces to create two
bases.
When assembling, make sure the feet of
each corner (D1) piece faces the floor with
the arrow facing down.
STEP 2
Insert the four (B) poles into Base One.
Insert the four (C) poles into Base Two.
Base One Base Two
B
B
B
B
C
C
C
C
D1
D1
D1
D1
X2
A / A1
A / A1
A / A2 A / A2
*NOTE: Poles in models AC-CBA632 and AC-CBA642 are labeled A1 & A2.*
CLOUDLAB 422 / 632 / 642 / 722 / 733 / 844 / 866
