AC Infinity CLOUDLAB Series - Cloudlab 811 & 899 Assembly

19

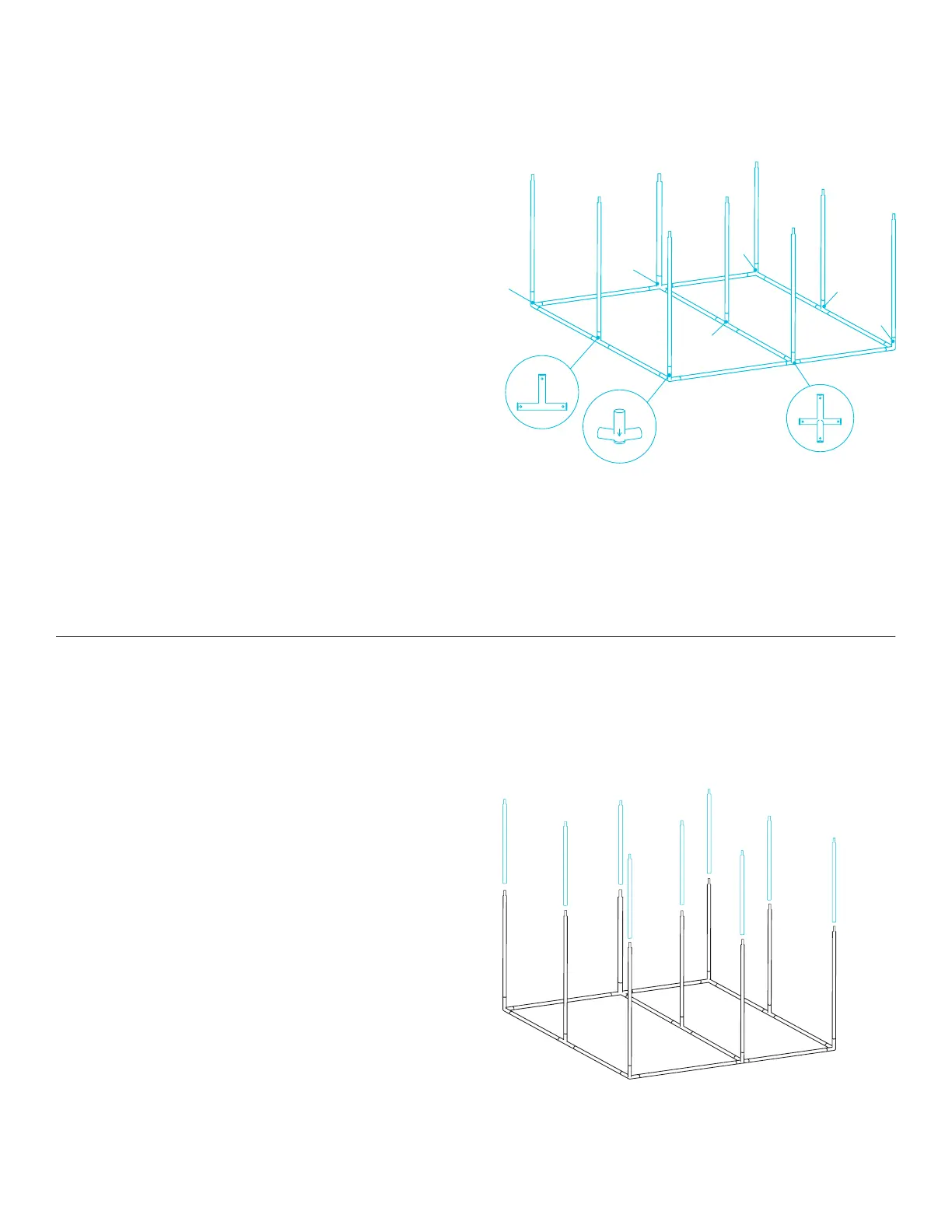

STEP 1
Insert ten (A) poles into the floor end of the
corner (D1) pieces, 3-way (D2) connectors,
and 4-way (D3) connectors to create the
base.
Two of the ten (A) poles will be set in the
center, attached by a third 3-way (D2)
connector.
Insert the nine (B) poles into the corner (D1)
pieces and the (D2) and (D3) connectors.
When assembling, make sure the feet of
each corner (D1) piece faces the floor with
the arrow facing down.
TENT SETUP
CLOUDLAB 811 / 899
A
A
A
A
A
A
A
D3
D2
D2
D1
D1
D3
D1
D1
D2
B
A
A
A
B
B
B
B
B
B
B
B
STEP 2
Insert the nine (C) poles into the nine (B)
poles.
C
C
C
C
C
C
C
C
C
B
B
B
B
B
B
B
B
B
