9
INSTALLATION

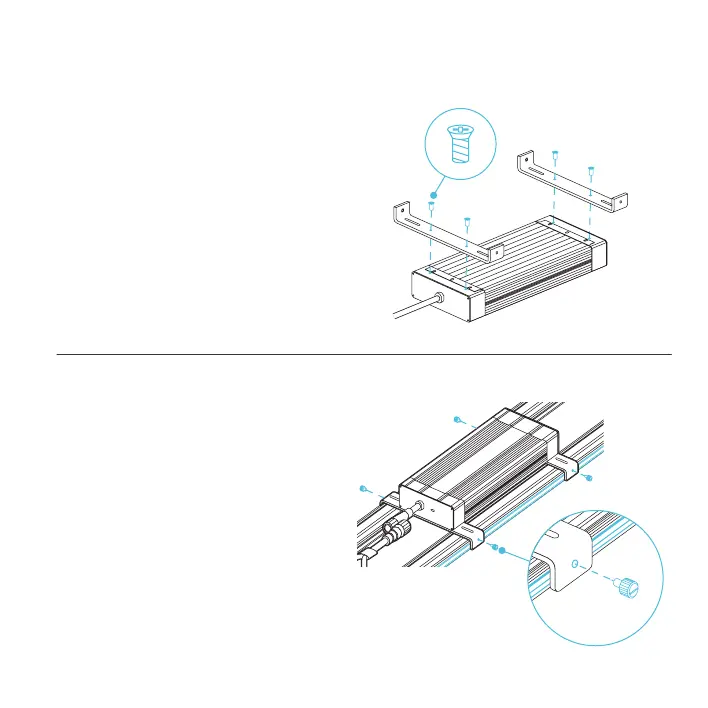

STEP 1
Align the brackets' mounting holes with the
driver's mounting points located on the driver's
underside, making sure the brackets' legs are
pointing up.
Secure the brackets by screwing in the driver
screws using a Phillips screwdriver.
STEP 2
Flip the driver over and place it over the two
center columns of your grow light.
Secure the brackets to the columns by
screwing in the nylon screws using a
flathead screwdriver.
DRIVER MOUNTING (FRAME)
