Page 8 of 9 507043-03Issue 1739

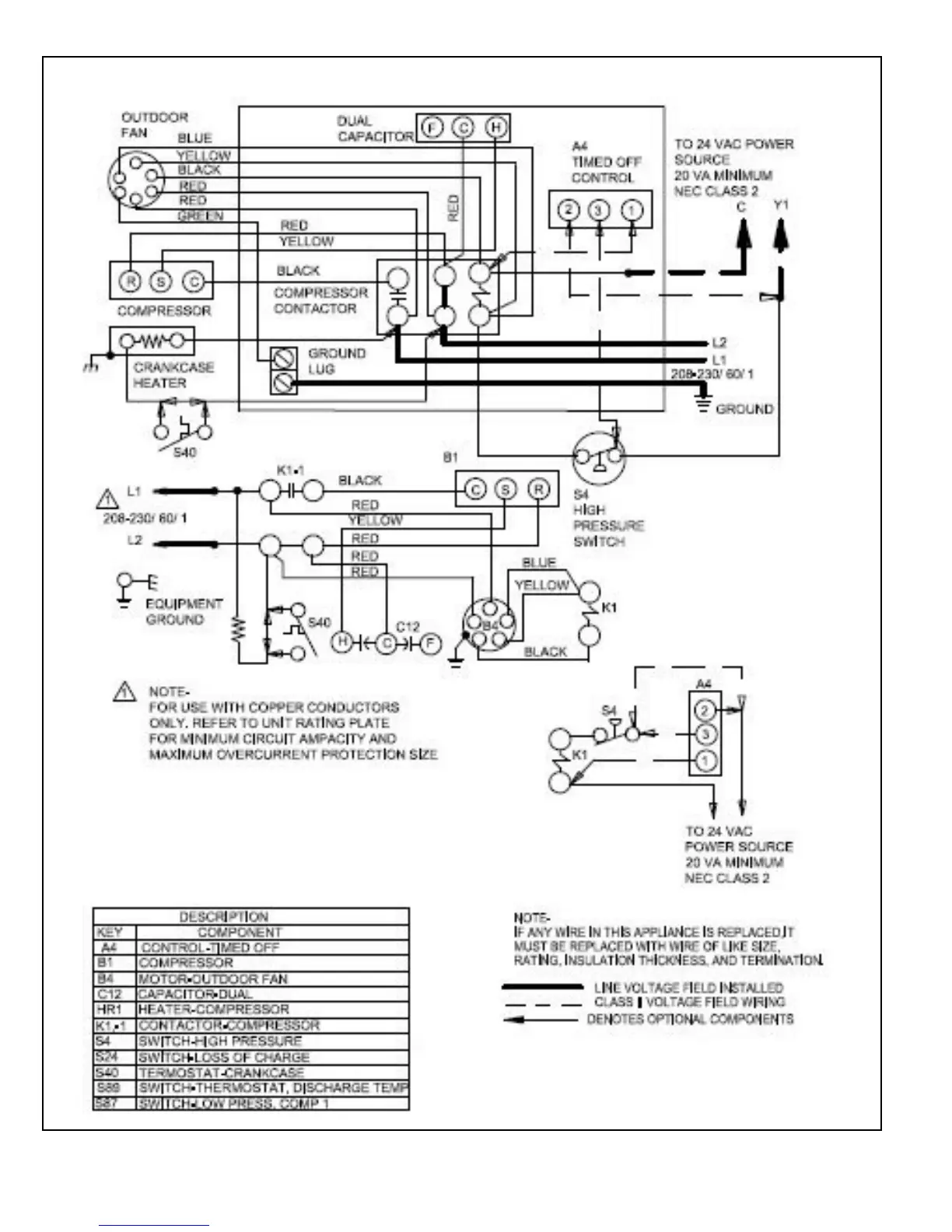

Figure 4. A/C Single Phase Wiring Diagram (multi-speed condenser fan)
