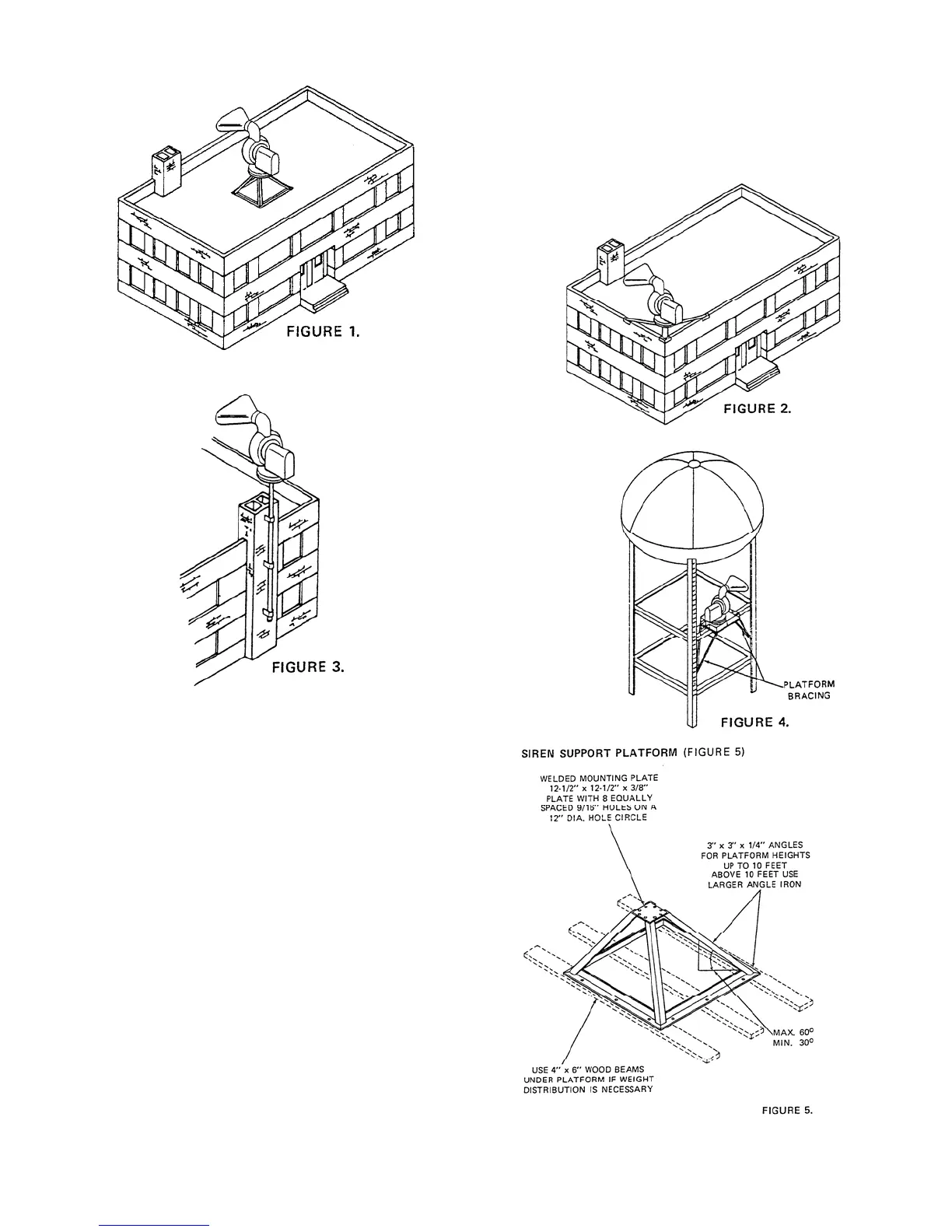

ROOF MOUNT (FIGURE 1)
The siren may be mounted as shown on a support or platform on a flat roof.
See Figure 5 for details of construction for a suggested roof mount. The siren
should be mounted higher than the highest snow level anticipated at the
installation.
PARAPET MOUNT (FIGURE 2)
Various custom-built mounts may be used similar to the parapet mount
illustrated. Actual design will be dictated by building construction and height
desired.
CHIMNEY MOUNT (FIGURE 3)
A sturdy chimney may provide a convenient support for mounting the siren.
The possibility of corrosive or staining smoke should be considered when this
type of installation is planned. Use 4" heavy wall galvanized pipe to a
maximum height of 10 feet above the top of the chimney. Use larger pipe for
greater height.
TOWER OR TANK MOUNT (FIGURE 4)
A properly situated tower or tank may serve as an ideal mount. The
support platform must be designed with adequate bracing to carry the
total load.
