ACA Citabria Explorer 7ECA - Page 43

Citabria 6-9

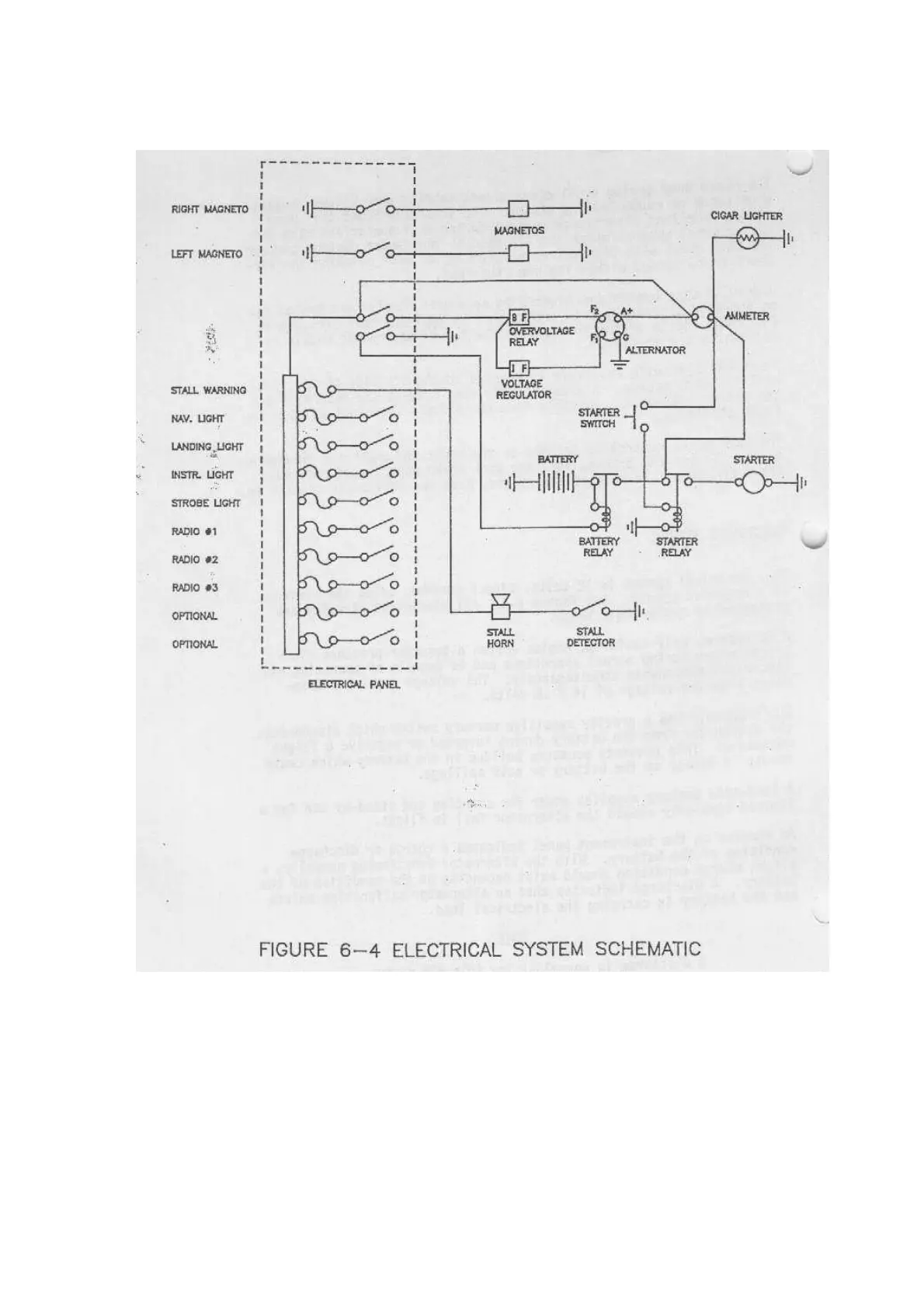

All electrical switches and fuses are located on the electrical panel which is installed on the
upper left side of the cabin. Additional spare fuses are also provided in the panel and can be
used for replacement during flight if necessary.
A red master switch controls all electrical power from the battery and alternator to the
distribution bus with the exception of the engine magnetos.
