4 Installing the turbocharger
4.1 Placing the turbocharger on the bracket

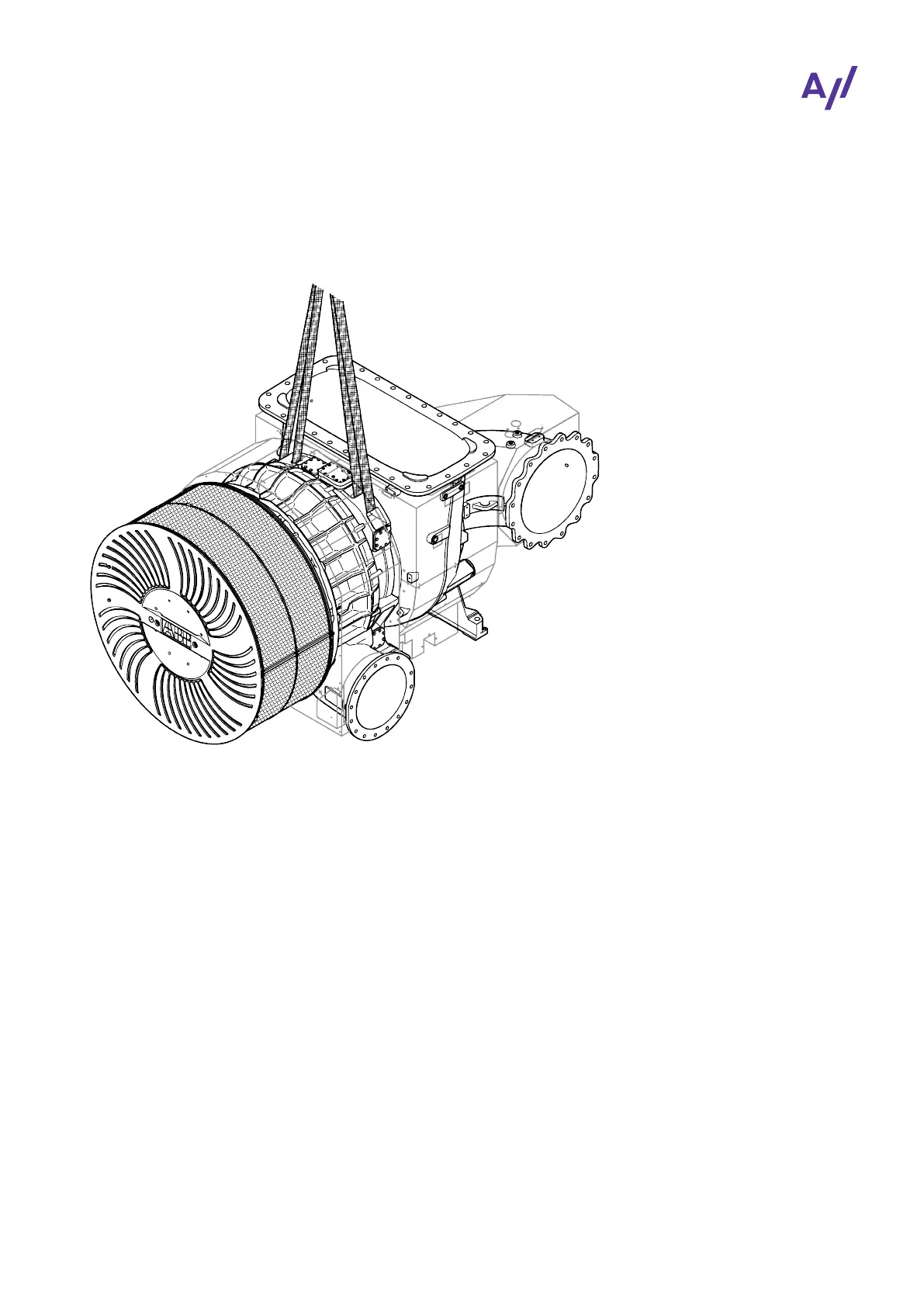

Fig.4: Placing the turbocharger
u Remove covers from the oil connections.
u Align turbocharger and place on engine bracket.
u Tighten the fixing screws (Steps for fastening the turbocharger) while only slightly loosening the
lifting gear.
u Remove lifting gear from turbocharger.
u Connect cable to speed sensor.
u Connect all gas, air and oil pipes.
