※ Installation:
For double doors
For single doors For single doors
Important-For vertical
mounting, wires must come
out the top of the unit.
Instruction:

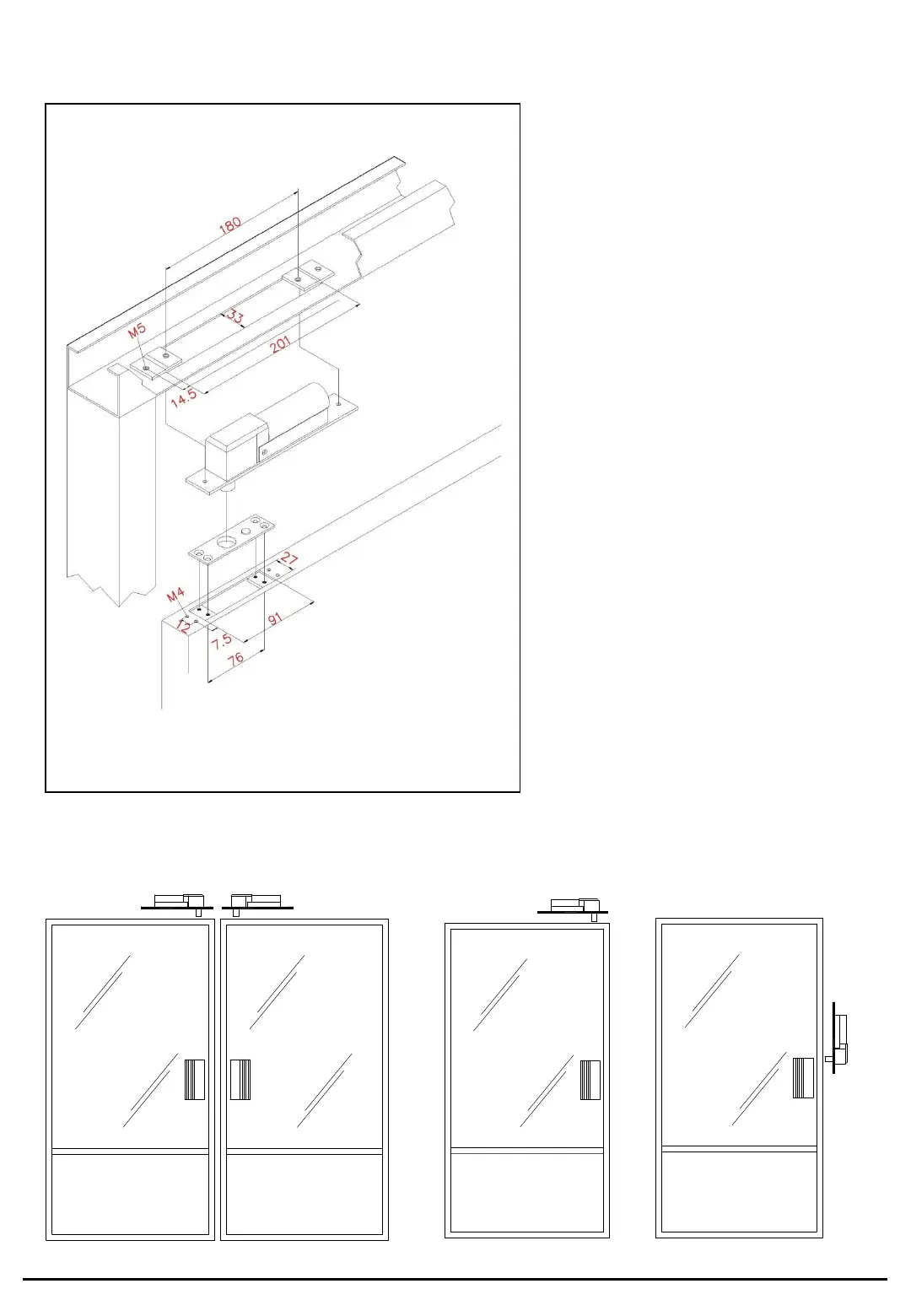

Diagram 1: Dimensions
Diagram 2: For double door mounting
Diagram 3: For single door mounting
Diagram 4: For vertical mounting
Diagram 1
Diagram 2 Diagram 3 Diagram 4
Page 3
