Strike plate
Faceplate
20mm

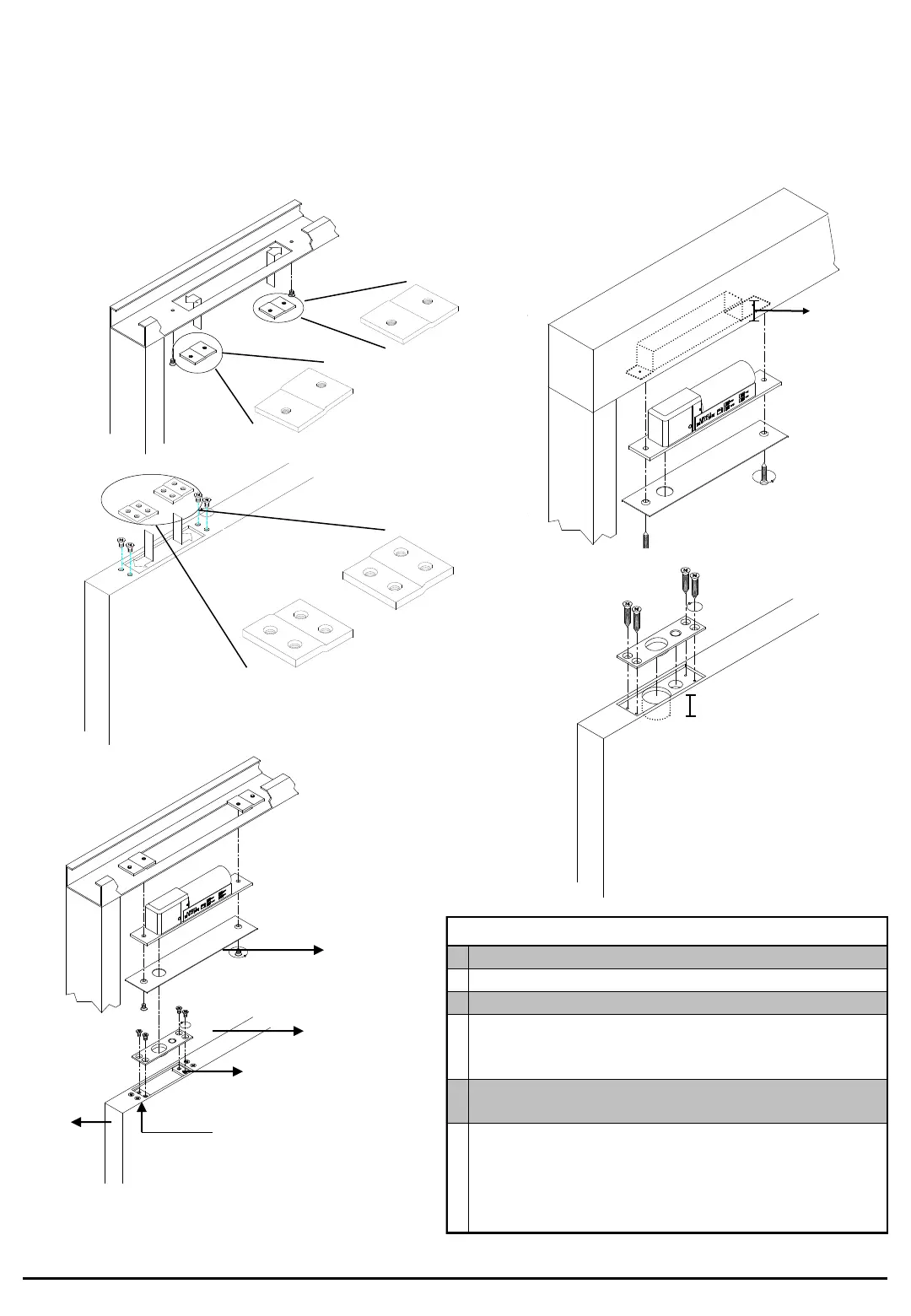

※ Installation:
Please make sure the correct
direction of the shims when mounted
For hollow metal doors:
For wood doors:
45mm
Drill hole for deadbolt
(If wood door)
Drill hole for magnet
(if wood door)
Door
The operating temperature of the lock is normally within 55℃.
◆ No operation after installation?
1.Please check power supply. 2.Please check if the direction of
the template is being installed correctlly 3.Please check the
connection points(N.O or N.C)
Lock will open when force is applied on the reader (eg. Hitting
hard or vibrating the reader).?
1.Please check all the connections .
2.Reader's N.C points might strike immediately when force is
being applied on it this eventually causes the fail-safe type of lock
to open when sudden power cut occured. Please refer to page 1
for wiring to prevent such case happen.
