AccessPRO MAG600WS - Page 2

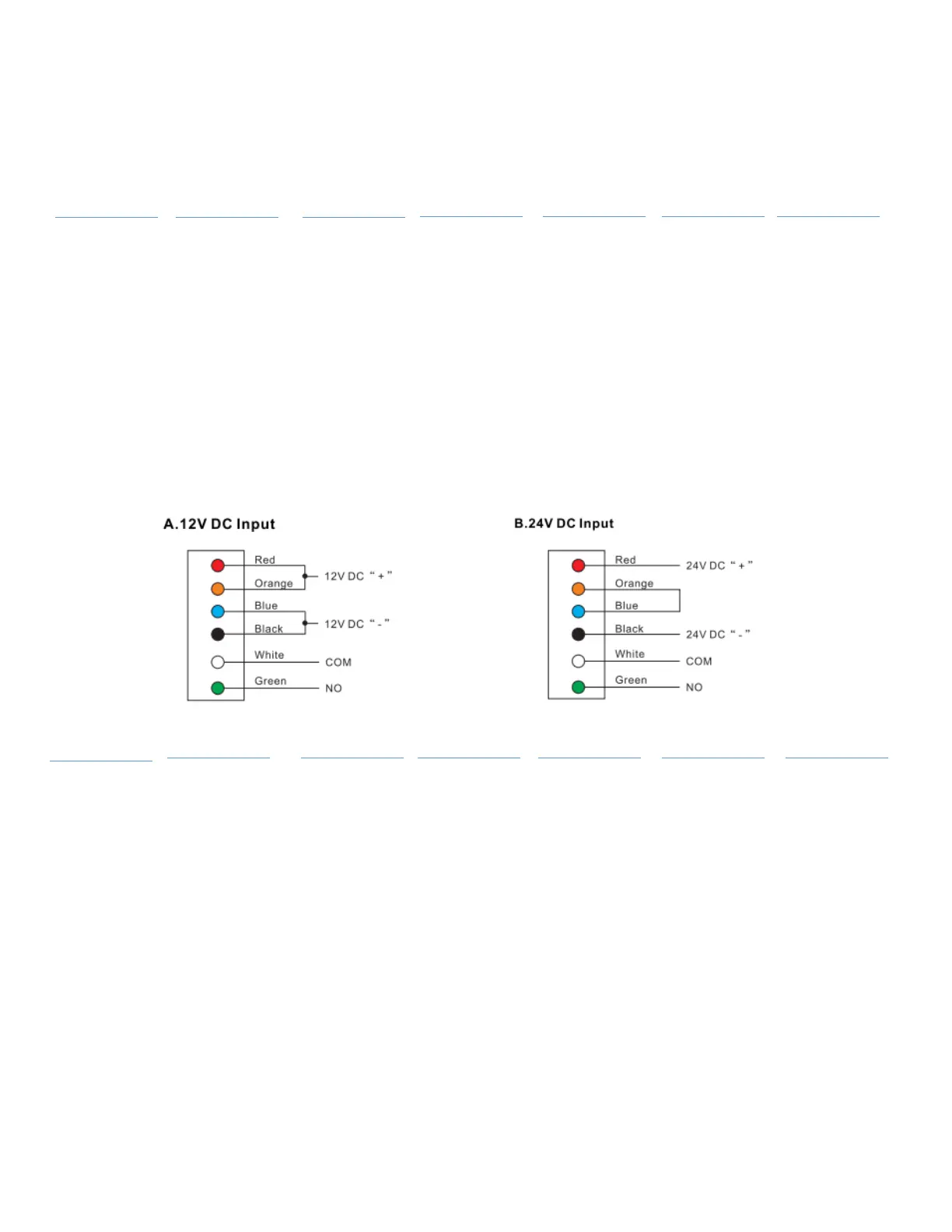

Cable Diagram
MAG600WLED
A. 12VDC
- Power required: 0.5Amp (minimum).
- Connect the positive cable (+) from a
12VDC power supply to V+.
- Connect the negative cable (-) from a
12VDC power supply to V-.
- Ensure the jumper is set for 12VDC
operation.
B. 24VDC
- Power required: 0.25Amp (minimum).
- Connect the positive cable (+) from a 24VDC
power supply to V+.
- Connect the negative cable (-) from a 24VDC
power supply to V-.
- Ensure the jumper is set for 24VDC opera-
tion.
