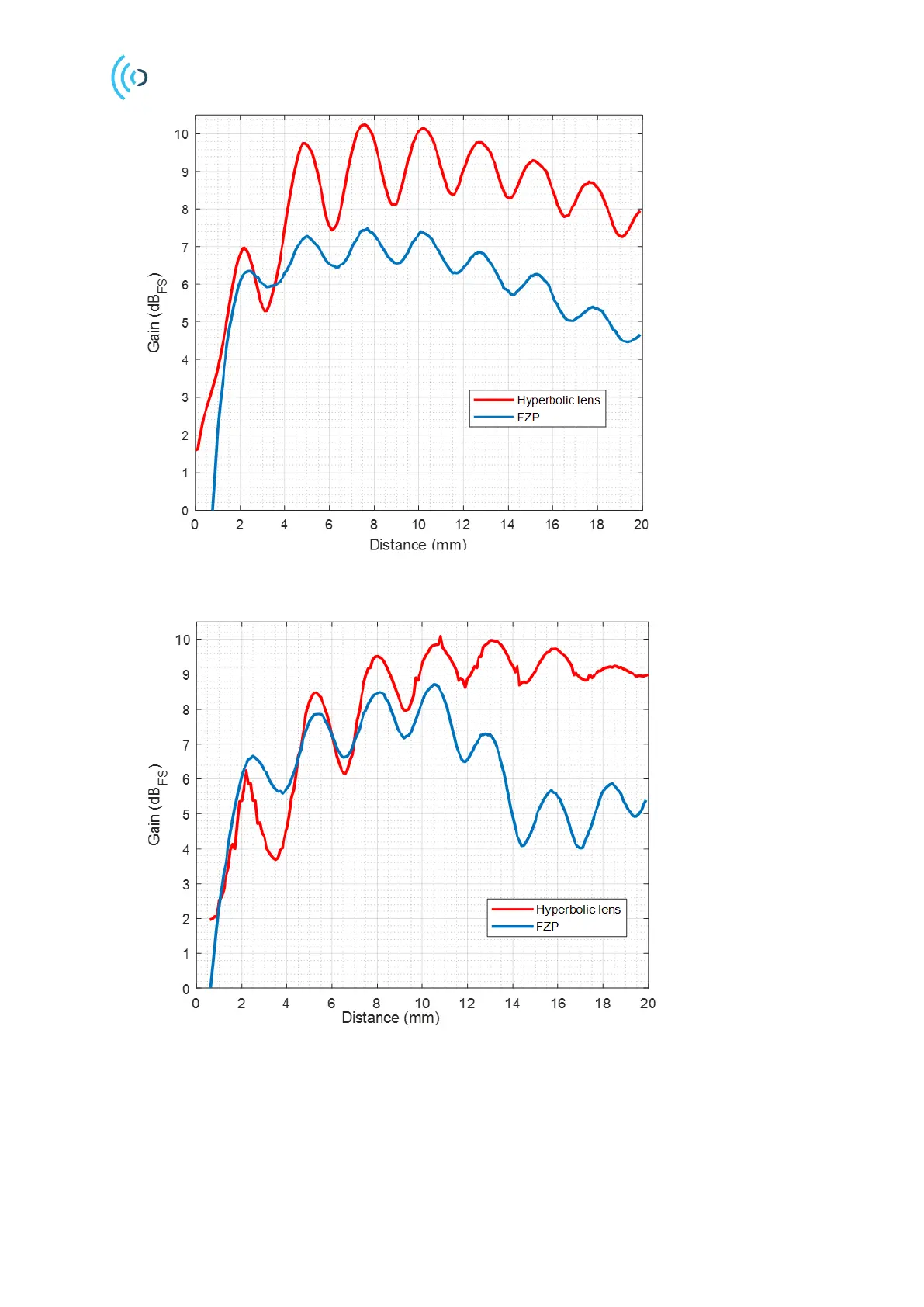

Figure 24. Gain variation of the lens versus the distance to the XM112 radome. The amplitude is normalized to Free
Space (FS). Gain is stated in one direction (Tx or Rx side). For Radar Loop Gain (RLG) the values will be doubled.
Figure 25. Gain variation of the HPL and FZP lens versus the distance to the XR112 radome. The amplitude is
normalized to Free Space (FS). Gain is stated in one direction (Tx or Rx side). For Radar Loop Gain (RLG) the values
will be doubled.
