1

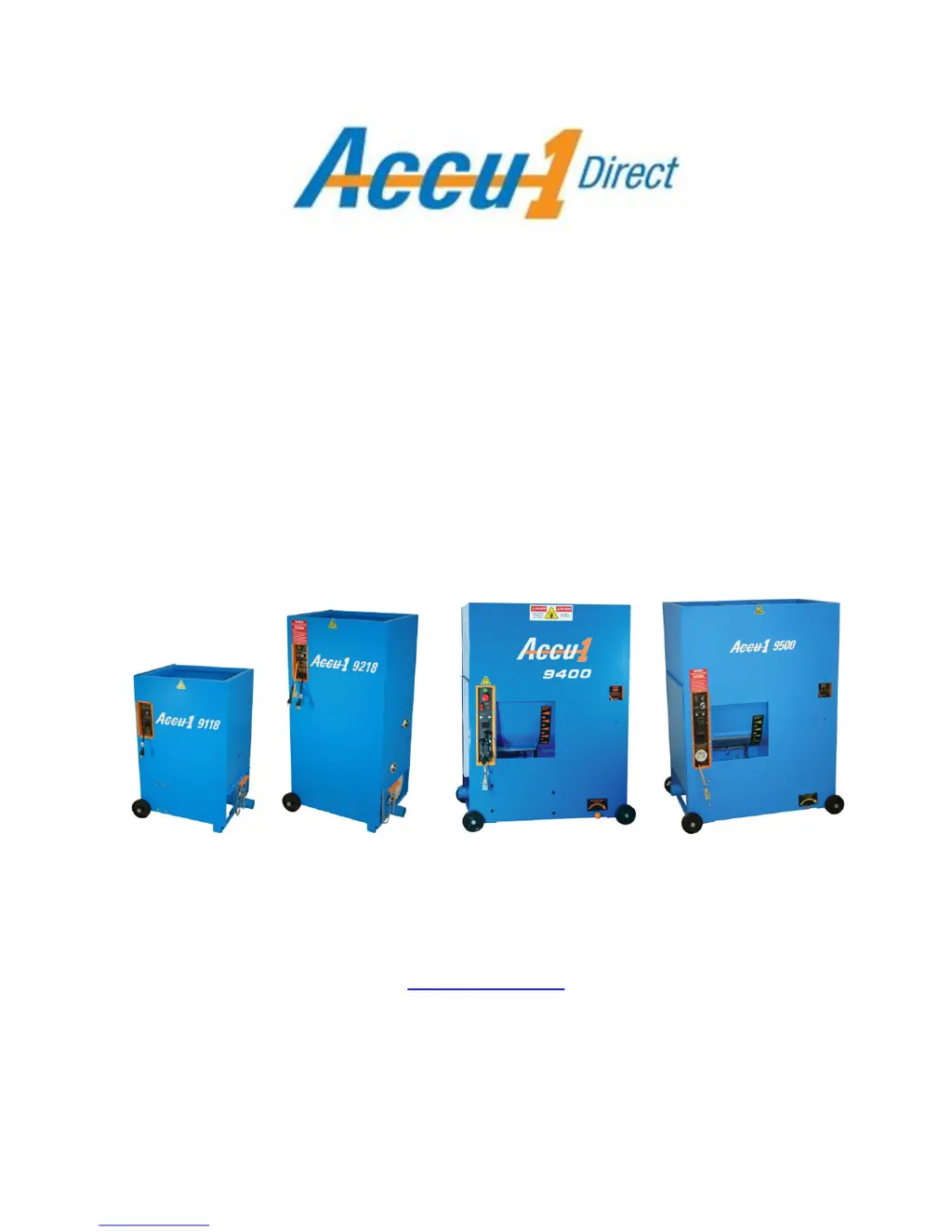

OPERATIONS MANUAL
ACCU1 9118
ACCU1 9218
ACCU1 9400
ACCU1 9500
Accu1Direct, Inc
www.Accu1.com
Telephone: 800-438-2776
Email: sales@accu1.com
115/230

Questions and Answers

  • S
    Susan JacobsAug 7, 2025
    What to do if my Accu1 Direct ACCU1 9500 will not run?
    • K
      Kenneth MoralesAug 7, 2025
      If your Accu1 Direct Industrial Electrical unit won't run, consider these potential causes: * The power cord may not be properly plugged in. Remove the plug, inspect the ends, and firmly plug it back in. * There might be a loose wire in the power cord. Inspect the leads for any faults and tighten them. * The main power switch could be off. Verify the switch position and turn it on. * The circuit breakers might not be staying on. Check to ensure adequate power supply.
  • C
    Cassandra SheltonAug 11, 2025
    Why is the blower running but the material feeder not working on my Accu1 Direct ACCU1 9500?
    • R
      ramirezjacquelineAug 12, 2025
      If the blower is running but the material feeder isn't on your Accu1 Direct Industrial Electrical, here are a few things to check: * The drive motor thermal protector may need to be reset after cooling. Look for the rubber button on the side of the motor box and reset it (you should hear a noticeable click). * There could be obstructions in the agitator hopper or in the airlock. Unplug the machine first, then remove any obstructions. * Electrical connectors might be loose at the terminal block on the panel edge. Check the wires from the blower and motor, and tighten the terminals. * The drive belt might be slipping. Remove any oil from the belt and ensure it's at the proper tension.
  • D
    Derrick RojasAug 16, 2025
    What to do if Accu1 Direct Industrial Electrical runs without moving material?
    • J
      John HamiltonAug 16, 2025
      If your Accu1 Direct Industrial Electrical runs but doesn't move material, consider the following: * The material meter might be at a zero setting. Adjust it for proper flow. * The hose could be clogged, kinked, or pinched, stopping material flow. Check the hose by leaving only the blower on and clear the flow passage. * Material blockage may be recurring. Leave the blower on continuously. * There might be a material blockage between the blower and airlock chamber. Take the connector hose apart and purge it with the blower on. * Material may continue to clog the hose. Adjust the motor speed or material meter.
  • N
    Natalie HouseAug 22, 2025
    Why is the air flow low in my Accu1 Direct ACCU1 9500?
    • M
      Melanie HallAug 22, 2025
      If you're experiencing low air flow with your Accu1 Direct Industrial Electrical, here's what to investigate: * The filters might be dirty. Clean them by tapping or replace them. * The hose length could be longer than necessary. Shorten the hose to the shortest usable length. * The airflow control might be set improperly. Check the control setting and reset it. * Seals in the airlock (vane feeders) could be leaking or making noise. Remove the old seals and replace them with new ones.
  • J
    Jeffery BuchananAug 27, 2025
    What to do if my Accu1 Direct ACCU1 9500 Industrial Electrical remote will not operate?
    • D
      diana83Aug 27, 2025
      If the remote for your Accu1 Direct Industrial Electrical isn't working, try these steps: * Ensure the main power switch is on. Check all settings and turn it on. * Verify the remote cord is plugged in. Check the connections and plug it in securely. * The cord might be faulty. Bypass the remote cord, plug in, and test at the machine. Replace the faulty part if needed. * The transformer could be burned out. Check the remote cord to read 24 volts; replace the transformer if necessary.
  • M
    Melissa LopezAug 31, 2025
    Why does the blower run slow and the drive motor not start on my Accu1 Direct ACCU1 9500?
    • P
      ppachecoAug 31, 2025
      If the blower runs slowly and the drive motor won't start on your Accu1 Direct Industrial Electrical, consider these possibilities: * There may be a chemical or temperature freeze in the airlock chamber. Lubricate the airlock with a light spray of WD-40, but never use oil. * The machine might be receiving low voltage. Use a 10-3 power cord and/or check the power supply to provide higher voltage. * The generator could be faulty. Use a 10-3 power cord and/or check the power supply; replace the part.

Summary

Machine Operation

Power and Electrical System

Details power requirements, switches, contactors, and transformers for machine operation.

Material Conditioning and Air Flow

Explains material conditioning, control meter, and air flow adjustments for optimal performance.

Production Optimization and Hose Use

Guidance on optimizing production, installer practices, and proper hose management.

Maintenance and Part Checks

In-Shop Maintenance Schedule

Recommended schedule for checking and maintaining machine parts in a shop environment.

Airlock Seal Replacement Procedure

Step-by-step instructions for replacing airlock seals to maintain machine performance.

Reference and Troubleshooting

Glossary of Machine Terms

Definitions of key terms used in the operation and maintenance of Accu1 machines.

Troubleshooting Common Issues

Identifies common problems, their causes, and remedies for Accu1 machines.

Warranty Information

Product Warranty Details

Outlines the manufacturer's limited warranty period and conditions for Accu1 machines.

Warranty Activation

Instructions and form for activating the product warranty within the specified timeframe.

Accu1 Direct ACCU1 9500 Specifications

General IconGeneral
BrandAccu1 Direct
ModelACCU1 9500
CategoryIndustrial Electrical
LanguageEnglish
