－ １０ －

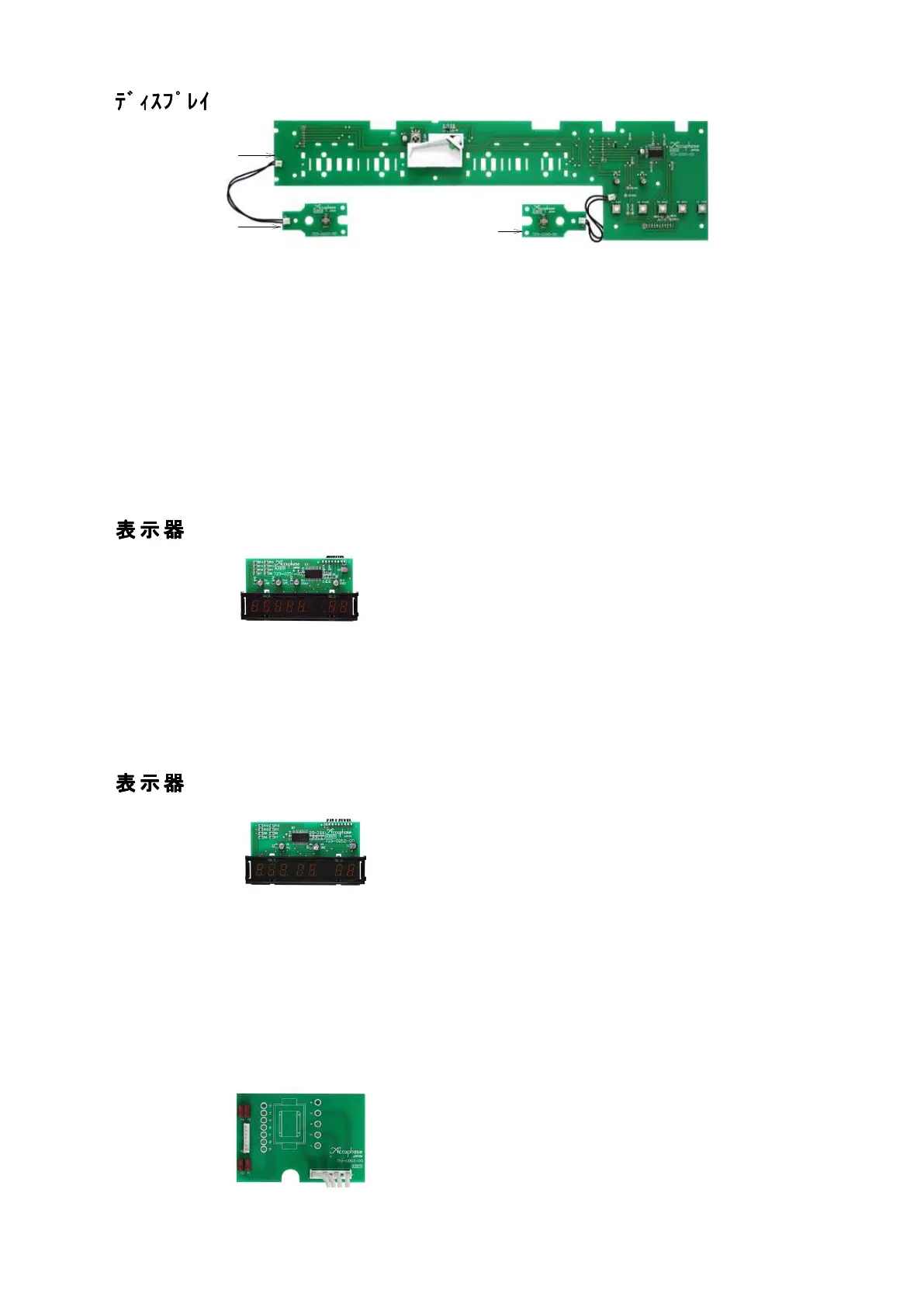

Display(A) Assembly (723-0251-00)
(A)Ass'y
LED D1～5,7,8 LAP-301DLTU
D9～12 SEL2610C-C/D
Indicator D1～5,7,8用 173-9161-04
ｲﾝﾃﾞｨｹｰﾀ
Display Holder D1～5,7,8用 234-1179-12
表示器ﾎﾙﾀﾞ
LED Spacer D9～12用 250-1116-00
LEDｽﾍﾟｰｻ
Connector Assembly K1 309-2829-04
ｺﾈｸﾀAss'y
IC IC1 NJU3719AV-TE1
Aluminum Electrolytic C2 CE04W0J470MA 47uF/6.3V
Capacitor
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ
Display(B) Assembly (723-0252-00)
(B)Ass'y
LED D1～7 LAP-301DLTU
D8,9 SEL2610C-C/D
Indicator D1～7用 173-9162-04
ｲﾝﾃﾞｨｹｰﾀ
Display Holder D1～7用 234-1180-12
表示器ﾎﾙﾀﾞ
LED Spacer D8,9用 250-1116-00
LEDｽﾍﾟｰｻ
Connector Assembly K1 309-0996-04
ｺﾈｸﾀAss'y
IC IC1 NJU3718AV-TE1
Aluminum Electrolytic C1 CE04W0J470MA 47uF/6.3V
Capacitor
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ
D
i
s
p
l
a
y
A
s
s
e
m
b
l
y
(
7
2
3
-
0
2
5
0
-
0
0
)
Ass'y
Transistor Q1 2SC2712-GR
ﾄﾗﾝｼﾞｽﾀ
Digital Transistor X1 RN1505
ﾃﾞｼﾞﾀﾙﾄﾗﾝｼﾞｽﾀ
Infrared Receiver IC1 RPM7238-H8R
赤外 線ﾚｼｰﾊﾞ
IC IC2 TC74VHCT08AF/EL
Push Switch S1,2 354-1121-00
ﾌﾟｯｼｭｽｲｯﾁ S3,4,5,6,7 354-1122-00
Aluminum Electrolytic C1,2 CE04W0J470MA 47uF/6.3V
Capacitor
ｱﾙﾐ 電 解ｺﾝﾃﾞﾝｻ
PC Board 115-2667-00
PCﾎﾞｰﾄ 115-2672-00
115-2673-00
LED D1 NSPB310B-1366
D2,3 SEL2610C-C/D
Light Guide Holder D1用 234-1149-03
ﾗｲﾄｶﾞｲﾄﾞﾎﾙﾀﾞ
LED Spacer D1用 250-0061-00
LEDｽﾍﾟｰｻ D2,3用 250-1122-00
Connector Assembly K1,2 309-3257-04
ｺﾈｸﾀAss'y K3,4 309-3258-04
Connector Plug K5 308-1206-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K6 308-0906-00
K7 308-0809-00
PC Board
PCﾎﾞｰﾄﾞ
115-2672-00
PC Board
PCﾎﾞｰﾄﾞ
115-2673-00
PC Board
PCﾎﾞｰﾄﾞ
115-2667-00
Power Supply Assembly (719-0093-00)
電源
Ass'y
Fuse F1 310-2252-00
ﾌｭｰｽﾞ F2 310-2162-00
F3,4 310-2082-00
Connector Assembly K1 309-2732-14
ｺﾈｸﾀAss'y
Connector Plug K2 308-0709-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
