－ １２ －
Ass'y

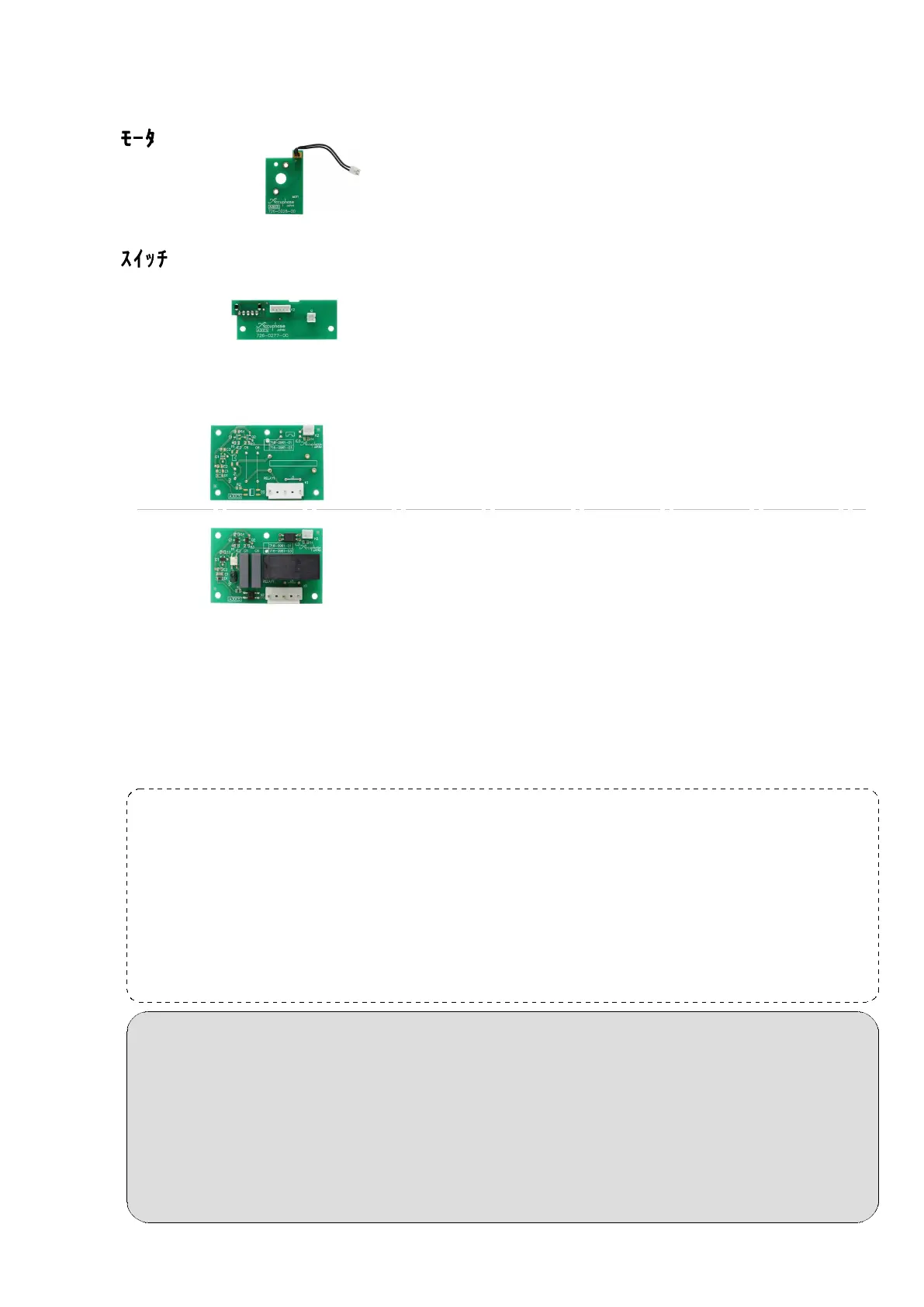

PC Board 115-2675-00
PC ﾎﾞｰﾄﾞ
Connector Assembly K1 309-2283-04
ｺﾈｸﾀAss'y
Switch Assembly (726-0277-00)
Ass'y
PC Board 115-2676-00
PCﾎﾞｰﾄ
Connector Plug K1 308-0206-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0508-00
Lever Switch S1 356-0102-00
ﾚﾊﾞｰｽｲｯﾁ
About the voltage of a product/ 製品の電圧について
For Japan domestic use, the voltage of products are set at 100V as required by law
The voltage in the major regions of the world are as below.
Products which are suited to each regions voltage condition are allowed to be used.
日本国内の電圧は１００Ｖと定められています。
世界主要地域の例として電圧は次の通り、地域に適合する製品以外は使用出来ません。
Japan / 日本 :１００Ｖ
North America・Taiwan / 北米・台湾 :１２０Ｖ
Europe / ﾖｰﾛｯﾊﾟ :２３０Ｖ
Other Countries /その他の国々 :２２０Ｖ
ｴｺﾓｰﾄﾞON/OFF切替え方法
初めに操作ﾓｰﾄﾞに入る、 OPEN/CLOSEとSA-CD/CDﾎﾞﾀﾝを同時に押しながら電源を入れると全てのLEDが点灯、入ったことを表す。
操作は本体のﾎﾞﾀﾝｷｰを使用する。NEXT(進む)/BACK(戻る)ﾎﾞﾀﾝを押して項目を選びます。
NEXTを6回押し ”ALL InIt du” ( D,Uﾀｲﾌﾟ向け、ｴｺﾓｰﾄﾞはOFFになる)
NEXTを7回押し ”ALL InIt E ” ( E ﾀｲﾌﾟ 向け、ｴｺﾓｰﾄﾞはONになる)
ON/OFFの設定が決まったら、PLAYﾎﾞﾀﾝを押し設定が確定し出荷状態に初期化します。電源を切り終了します。
Turning on/off Eco Mode
First enter Operation Mode. Pressing and holding the [OPEN/CLOSE] button and [SA-CD/CD] button simultaneously, turn
on the main unit power. All LEDs will light. It indicates that the main unit enters Operation Mode.
Use buttons on the main unit to perform an operation. Press the [NEXT] and [BACK] buttons to select the next and previous
item, respectively.
When you press the [NEXT] button four times, "ALL InIt du" appears (Types D and U models with Eco Mode set to off).
When you press the [NEXT] button five times, "ALL InIt E" appears (Type E model with Eco Mode set to on).
After setting Eco Mode to on or off, press the [PLAY] button to initialize the unit to default setting. The setting is finalized.
Turn off power to end the procedure.
Power Management(ERP) Assembly (716-0961-01/13)
電源管理
(ERP) Ass'y
PC Board 115-2227-20
PCﾎﾞｰﾄ
Connector Plug K1 308-0327-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0206-00
Jumper Wire J1 678-0070-00
ｼﾞｬﾝﾊﾟｰﾘｰﾄﾞ
PC Board 115-2227-20
PCﾎﾞｰﾄ
Zener Diode D1 UDZV6.2B
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ
Diode D2 S1ZB60-7062
ﾀﾞｲｵｰﾄﾞ
IC IC1 NJU7231U33
IC4 NJU7700F4-28-TE1
Opt-isolator IC2 TLP170J/TP/F
ｵﾌﾟﾄｱｲｿﾚｰﾀ IC3 PC123X2YFZ0F
716-0961-13
Connector Plug K1 308-0327-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0206-00
FET Q1,2 RUC002N05
RELAY RELAY1 362-8101-00
ﾘﾚｨ
Varistor VS1 420-0001-00
ﾊﾞﾘｽﾀ
Ceramic Capacitor C1 CK725B1C226M32TM 22uF / 16V
磁器ｺﾝﾃﾞﾝｻ C2,4 CK725B1E104K16TM 0.1uF /25V
C3 CK725B1E105K16TM 1uF / 25V
MPP Capacitor C5,6 CF922MF2E104MR46 0.1uF/250V
MPPｺﾝﾃﾞﾝｻ
Metal Mixed Thick R1 RK73K1J112JE-T 1.1kΩ1/10W
Film Resistor R2 RK73K2H102KETSG 1kΩ 1/2W
金属混合皮膜抵抗器 R3 RK73K1J682JE-T 6.8kΩ1/10W
R4 RK73K1J102JE-T 1kΩ 1/10W
716-0961-01
