Accuphase DP-430 - Page 3

Power button Assembly
ﾊﾟﾜｰﾎﾞﾀﾝAss'y
(730-1002-00)
Push-button for POWER
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388-5062-03)
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(726-0275-01/02/03)
Power Switch
ﾊﾟﾜｰｽｲｯﾁ
(354-1026-00)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130-0252-01)
Front Glass
ﾌﾛﾝﾄｶﾞﾗｽ
(172-0188-03)
Leg
脚
(238-0023-00)
Case Assembly
ﾄｯﾌﾟﾌﾟﾚｰﾄ Ass'y
(150-0079-12A4)
Top Plate(B)
ﾄｯﾌﾟﾌﾟﾚｰﾄB
(150-0057-04)

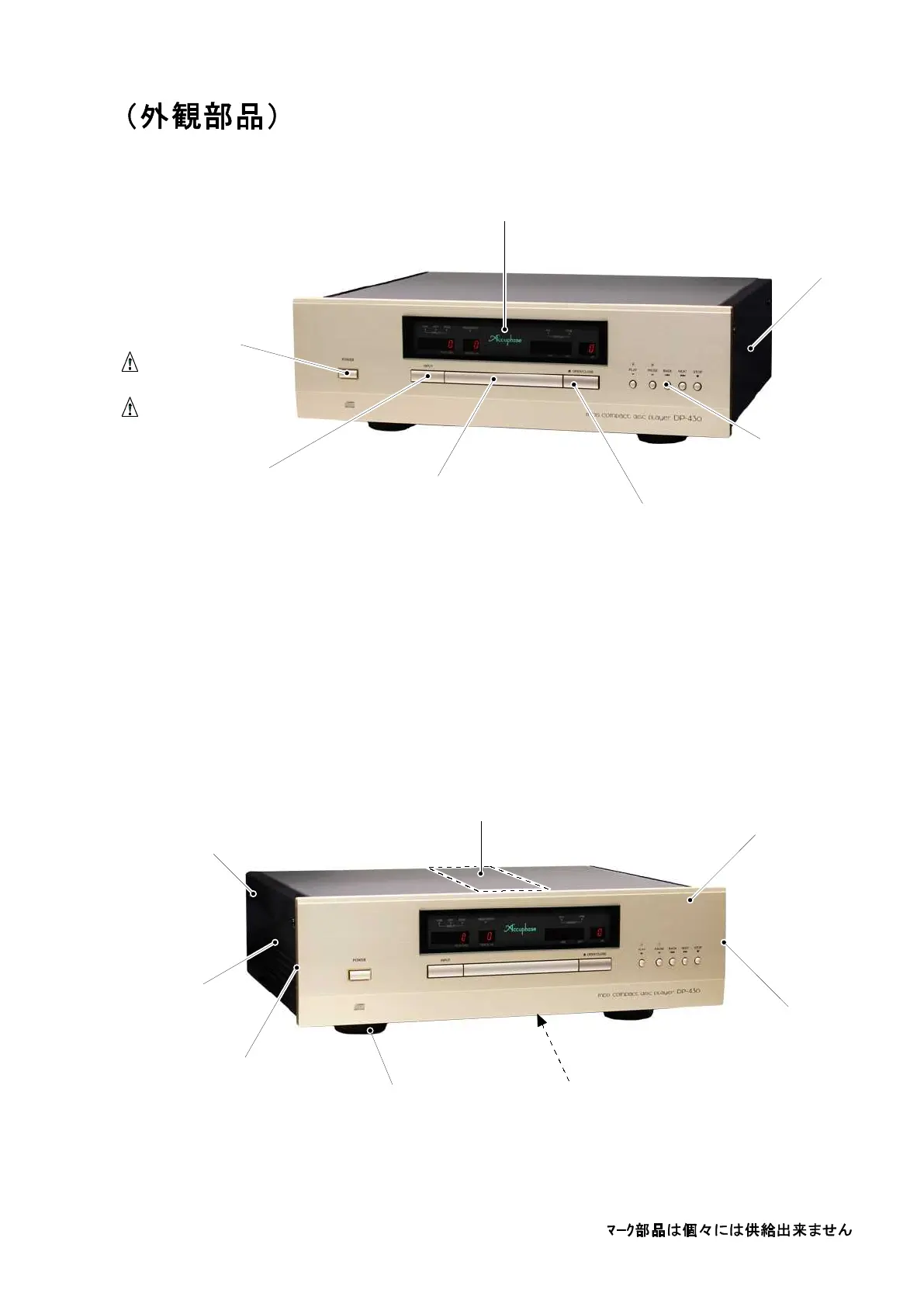

－ ２ －
E
X
P
L
A
N
A
T
I
O
N
O
F
S
U
R
F
A
C
E
P
A
R
T
S
Push-button/5-gang
ﾌﾟｯｼｭﾎﾞﾀﾝ/5連
(388-5113-03)
★
Binding Screw
ﾊﾞｲﾝﾄﾞねじ/4pcs.
(604-0408-00)
Washer
平ﾜｯｼｬ/4pcs.
(637-0042-07)
Panel End-cap (L)
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ (左)
(132-0132-14)
Panel End-cap(R)
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ(右)
(132-0133-14)
Push-button(Open/Close)
ﾌﾟｯｼｭﾎﾞﾀﾝ(ｵｰﾌﾟﾝ/ｸﾛｰｽﾞ）
(388-5115-04)
★
Push-button(Input)
ﾌﾟｯｼｭﾎﾞﾀﾝ(ｲﾝﾌﾟｯﾄ)
(388-5115-04)
Bottom Plate Assembly
ﾎﾞﾄﾑﾌﾟﾚｰﾄ Ass'y
(155-0093-01A4)
Tray Sub-panel Assembly
ﾄﾚｨｻﾌﾞﾊﾟﾈﾙAss'y
(134-0159-14A6)
(a)Tray Sub-panel
ﾄﾚｨｻﾌﾞﾊﾟﾈﾙ
(134-0159-14)
(b)Push-button
ﾌﾟｯｼｭﾎﾞﾀﾝ(Open/Close)
(388-5115-04)
(c)Push-button
ﾌﾟｯｼｭﾎﾞﾀﾝ(Input)
(388-5115-04)
★
Side Panel
ｻｲﾄﾞﾊﾟﾈﾙ
(139-0053-12)
★
Side Panel
ｻｲﾄﾞﾊﾟﾈﾙ
(139-0053-12)
★
★
The part or component having
this mark is not supplied separately.
