Accuphase DP-430 - Page 4

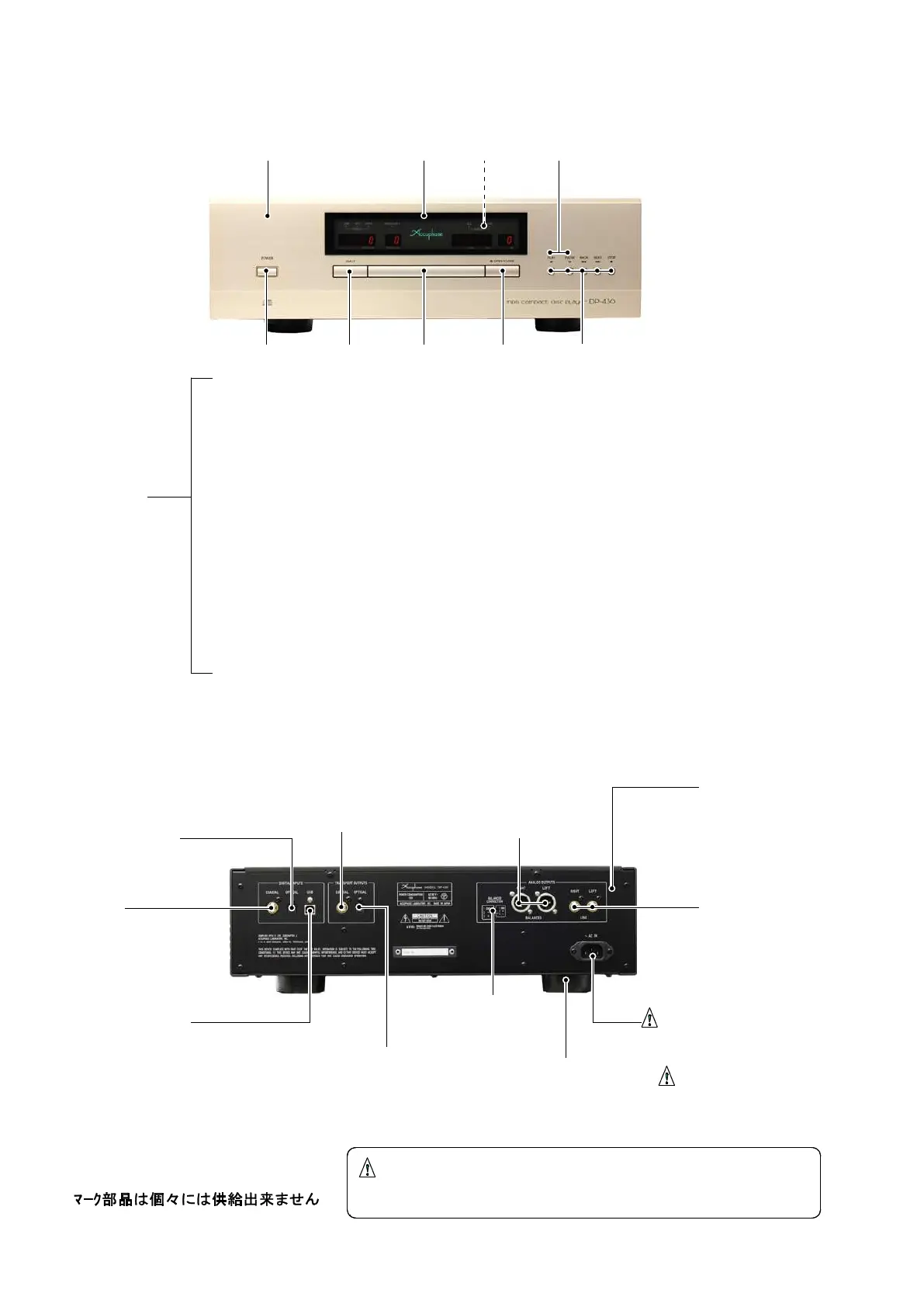

FRONT FACE (
前面
)
REAR FACE (
後面
)
Leg
脚
(238-0023-00)
Line Filter
ﾗｲﾝﾌｲﾙﾀ
(520-9012-00)
Power Supply Cord
電源ｺｰﾄﾞ
D type :680-1406-10
U/T type :680-2403-00
E/K type :680-3403-00
Rear Panel
ﾊﾞｯｸﾊﾟﾈﾙ
(135-0254-02)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130-0252-01)
1 Front Panel=131-0252-01
ﾌﾛﾝﾄﾊﾟﾈﾙ
2 Tray Sub-panel Ass'y=134-0159-14A6
ﾄﾚｨｻﾌﾞﾊﾟﾈﾙ Ass'y
2-
1
Input button=388-5115-04
ｲﾝﾌﾟｯﾄﾎﾞﾀﾝ
2
-2
Open/Close-button=388-5115-04
ｵｰﾌﾟﾝ/ｸﾛｰｽﾞﾎﾞﾀﾝ
3 Push-button/5-gang=388-5113-03
ﾌﾟｯｼｭﾎﾞﾀﾝ /5連(PLAY,PAUSE)
4 Push-button=388-5062-03
ﾌﾟｯｼｭﾎﾞﾀﾝ/POWER
4
-1
Push-button Frame=113-0123-04
ﾌﾟｯｼｭﾎﾞﾀﾝﾌﾚｰﾑ
4
-2
Coil Spring=285-1016-04
ｺｲﾙｽﾌﾟﾘﾝｸﾞ
4
-3
E-ring=647-1054-00
Eﾘﾝｸﾞ
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
1pce.
5 Front Glass=172-0188-03
ﾌﾛﾝﾄｶﾞﾗｽ
5
-1
Glass Frame=247-1445-03
ｶﾞﾗｽ取付金具
6 Indicator=173-9164-03
ｲﾝﾃﾞｨｹｰﾀ
6
-1
Indicator Mounting
Bracket=247-1452-03
ｲﾝﾃﾞｨｹｰﾀ取付金具
6
-2
Push-in Rivet=643-0304-50
ﾌﾟｯｼｭﾘﾍﾞｯﾄ
7 Position Indicator=173-0907-04
ﾎﾟｼﾞｼｮﾝｲﾝﾃﾞｨｹｰﾀ
1pce.
1pce.
1pce.
1pce.
2pce.
2pcs.
1
2
3
7
－ ３ －
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ
(302-0116-10)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞ
(254-2015-04)
6
4
5
★
★
★
★
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ
(302-0116-10)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞ
(254-2015-04)
Audio Connector Plug
ｵｰﾃﾞｨｵｺﾈｸﾀﾌﾟﾗｸﾞ
(301-8015-00)
Connector Cover /Male
ｺﾈｸﾀｶﾊﾞ
(254-2027-04)
Optical Receiver
ｵﾌﾟﾄﾚｼｰﾊﾞ/IC34
(PLR135/T9)
2-1
2-2
Connector Jack(USB)
ｺﾈｸﾀｼﾞｬｯｸ(USB)
(307-0415-00)
USB Dust Cover
USB ﾀﾞｽﾄｶﾊﾞ
(254-2038-00)
Slide Switch
ｽﾗｲﾄﾞｽｲｯﾁ
(350-0207-00)
The part or component having
this mark is not supplied separately.
★
The part or component having this mark is important to safety. Those
bearing the specified part number shall always be used.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
Optical Transmitter
ｵﾌﾟﾄﾄﾗﾝｽﾐｯﾀ/IC25
(PLT133/T9B)
Pin Jack
ﾋﾟﾝｼﾞｬｯｸ
(302-0116-10)
Pin Jack Cover
ﾋﾟﾝｼﾞｬｯｸｶﾊﾞ
(254-2015-04)
