Accuphase DP-430 - Page 5

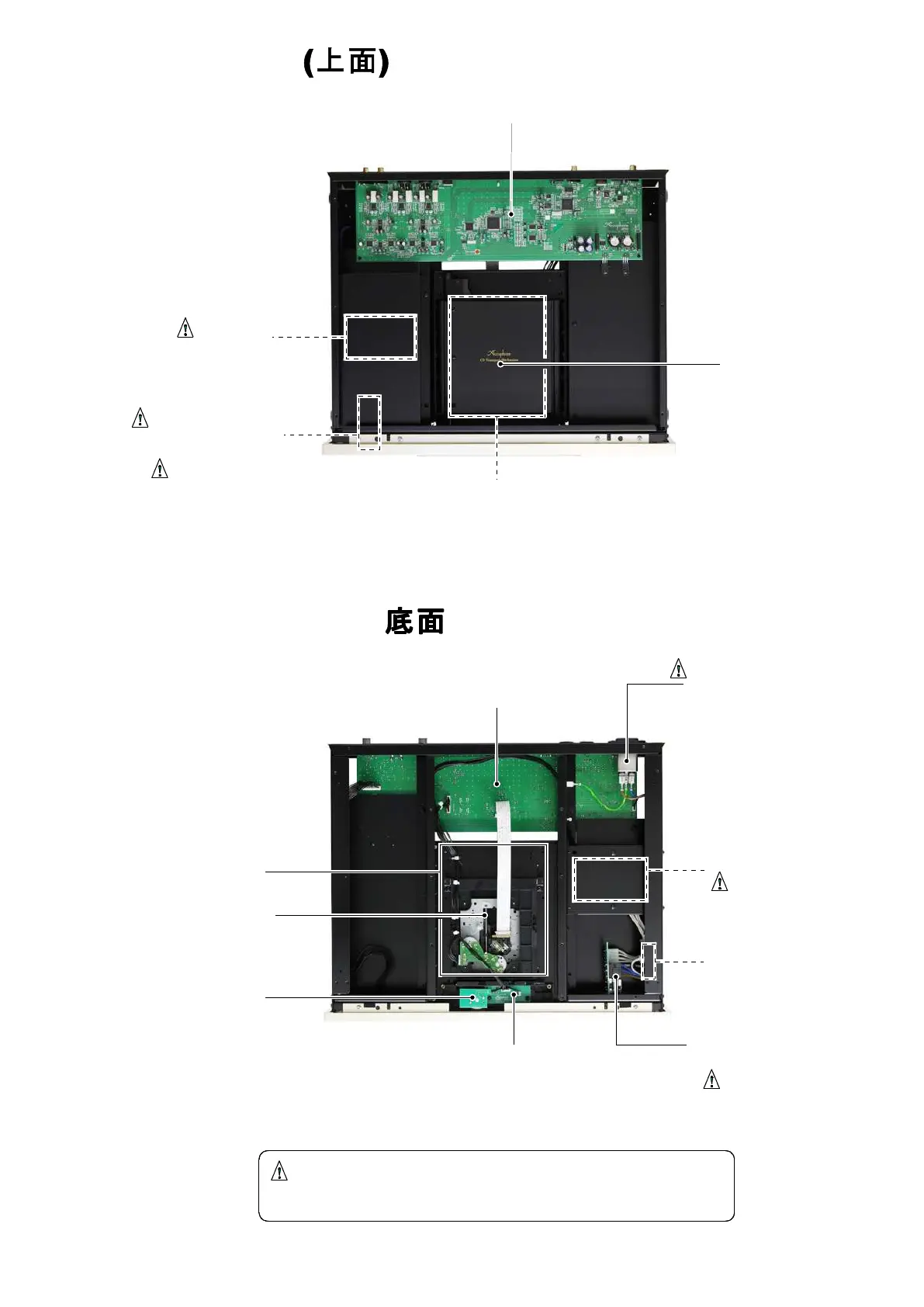

CD Mechanical Assembly
CDﾒｶﾆｶﾙ Ass'y
(731-0020-00)
Optical Drive Unit
光学ﾄﾞﾗｲﾌﾞﾕﾆｯﾄ
(733-0001-00)
T
O
P
F
A
C
E
－ ４ －
DAC Assembly
(725-0066-00)
Power Management(ERP)
Assembly
電源管理(ERP)Ass'y
(716-0961-01/13)
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(726-0275-01/02/03)
Power Push Switch
ﾊﾟﾜｰﾌﾟｯｼｭｽｲｯﾁ /POWER
(354-1026-00)
Motor Assembly
ﾓｰﾀAss'y
(726-0276-00)
Motor/ﾓｰﾀ
(224-0001-00)
Switch Assembly
ｽｲｯﾁAss'y
(726-0277-00)
Decoration plate
化粧 板
(159-0113-04)
Bridge
ﾌﾞﾘｯｼﾞ
(112-1435-21)
CD Mechanical Assembly
CD ﾒｶﾆｶﾙ Ass'y
(731-0020-00)
Power Supply Assembly
電源 Ass'y
(719-0093-00)
The part or component having this mark is important to safety. Those
bearing the specified part number shall always be used.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
BOTTOM SIDE ( )
Line Filter/AC Power Plug
ﾗｲﾝﾌｨﾙﾀ /ACｺﾈｸﾀﾌﾟﾗｸﾞ
(520-9012-00)
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(726-0275-01/02/03)
Fuse/ﾌｭｰｽﾞ
T315mA AC250V/100-120V
(354-1032-00)
T160mA AC250V/220-240V
(354-1013-00)
DAC Assembly
(725-0066-00)
Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
(510-4049-10)
Optical Drive Unit
光学ﾄﾞﾗｲﾌﾞﾕﾆｯﾄ
(733-0001-00)
Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
(510-4049-10)
