－ ５ －
SACD Mechanical Assembly
SACD ﾒｶﾆｶﾙ Ass'y
(731-0020-00)
Push Button/5-gang
ﾌﾟｯｼｭﾎﾞﾀﾝ /5連
(388-5113-03)

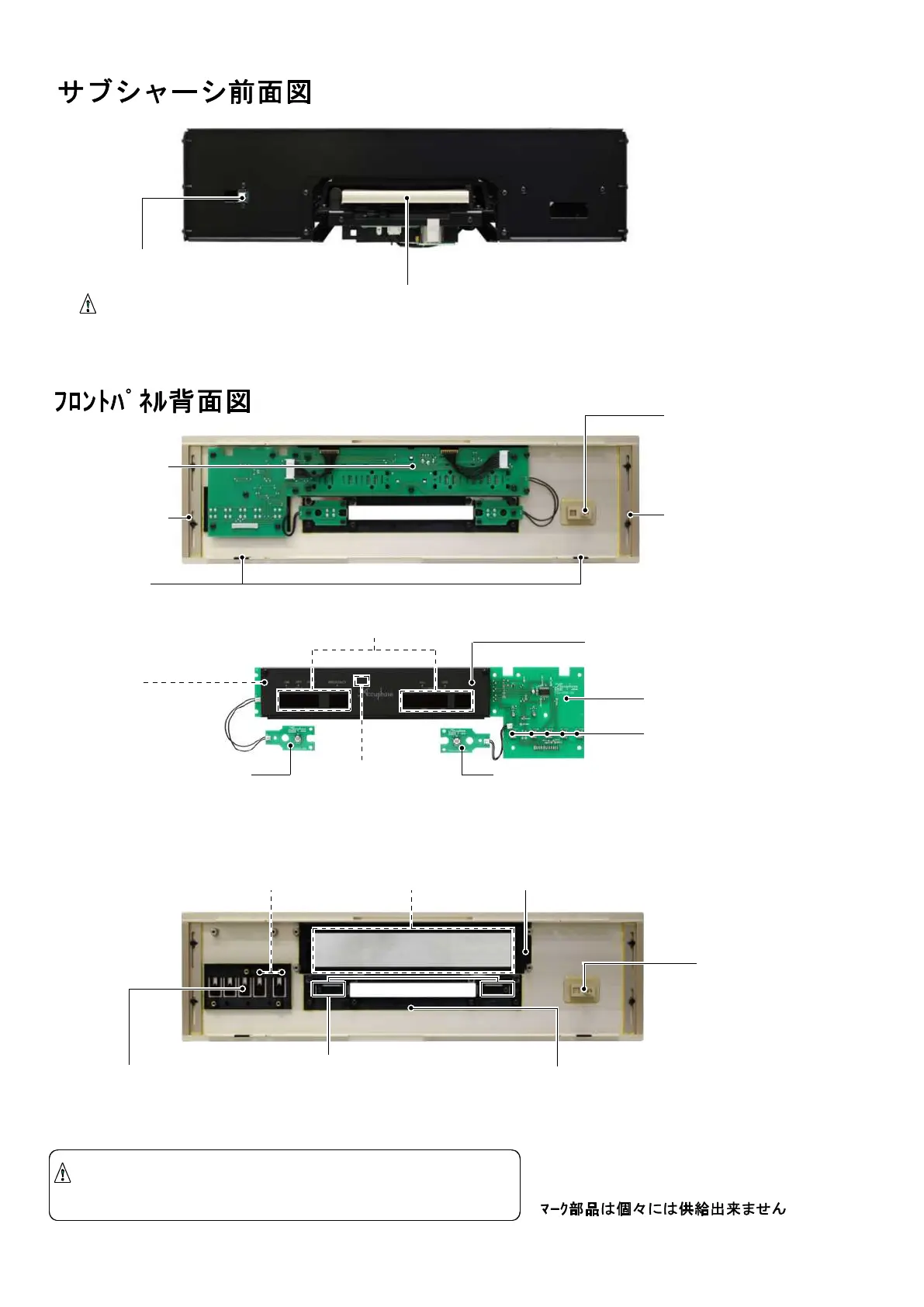

FRONT PANEL - REAR VIEW
Front Glass
ﾌﾛﾝﾄｶﾞﾗｽ
(172-0188-03)
★
★
★
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(726-0275-01/02/03)
Power Push Switch
ﾊﾟﾜｰｽｲｯﾁ
(354-1026-00)
Leaf Spring
板ば ね/2pcs.
(285-2008-04)
Light Insulator
ﾗｲﾄｲﾝｼｭﾚｰﾀｰ
(234-1183-04)
★
★
Glass Mounting Bracket
ｶﾞﾗｽ取付金具
(247-1445-03)
★
Push-button
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388-5062-03)
The part or component having this mark is important to safety. Those
bearing the specified part number shall always be used.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
★
The part or component having
this mark is not supplied separately.
★
Position Indicator
ﾎﾟｼﾞｼｮﾝｲﾝﾃﾞｨｹｰﾀ
(173-0907-04)
Push-button Frame
ﾌﾟｯｼｭﾎﾞﾀﾝﾌﾚｰﾑ
(113-0159-02)
Display Assembly
ﾃﾞｨｽﾌﾟﾚｨ Ass'y
(723-0250-00)
Infrared
Receiver
赤外線ﾚｼｰﾊﾞ/IC1
(RPM7238-H8R)
Push Switch
ﾌﾟｯｼｭｽｲｯﾁ/S2
(354-1121-00)
Push Switch
ﾌﾟｯｼｭｽｲｯﾁ/S1
(354-1121-00)
Indicator Mounting
Bracket
ｲﾝﾃﾞｨｹｰﾀ取付金具
(247-1452-03)
★
Push-button
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388-5062-03)
Frame
ﾌﾚｰﾑ
(113-0123-04)
Display Assembly
ﾃﾞｨｽﾌﾟﾚｨ Ass'y
(723-0250-00)
Push Switch
ﾌﾟｯｼｭｽｲｯﾁ/S3～7
(354-1122-00)
Indicator
ｲﾝﾃﾞｨｹｰﾀ
(173-9164-03)
★
Filter
ﾌｨﾙﾀ/2pcs.
(179-0071-04)
Panel End cap(R)
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ(R)
(132-0133-14)
Panel End cap(L)
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ(L)
(132-0132-14)
Tape
布ﾃｰﾌﾟ
(813-1151-00)
