DC Inverter U-match Series for R410A Unitary Split Air Conditioner

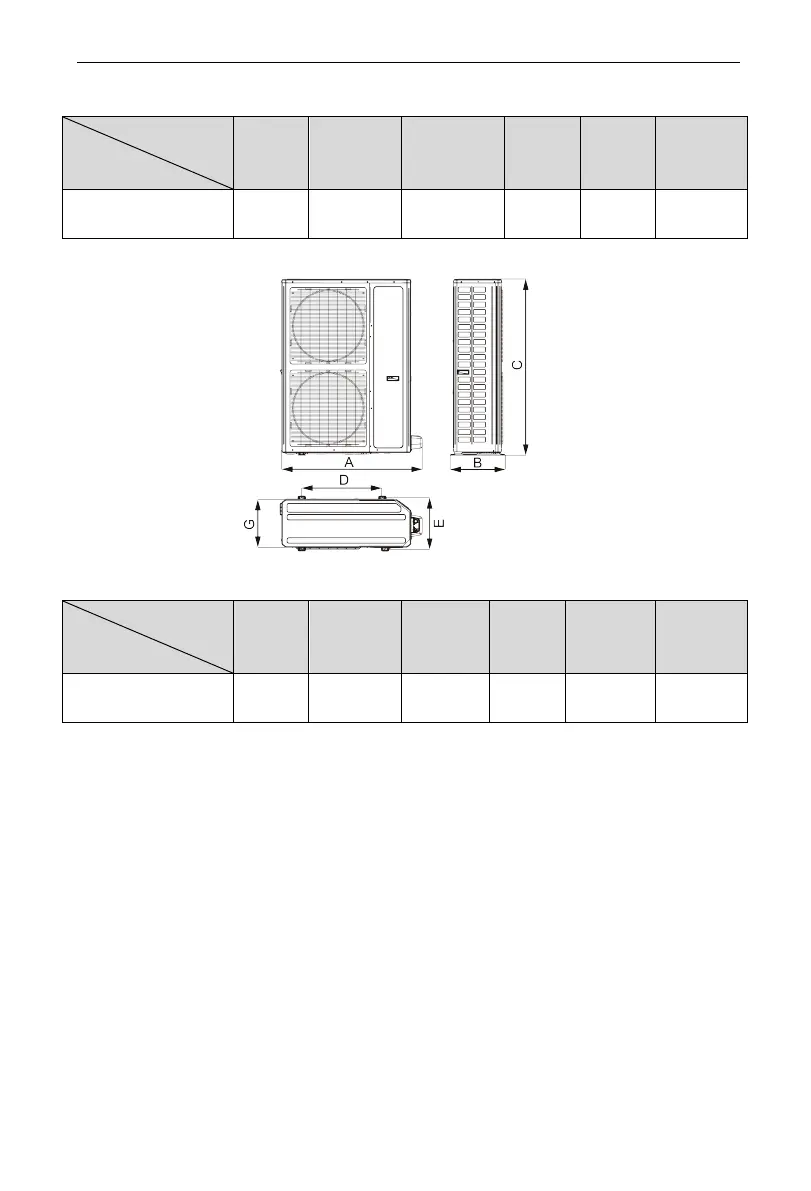

7
Unit: inch(mm)
Dimensions
Model
A B C D E G
FXD-ACD36
37
(940)
20-7/8
(530)
32-1/4
(820)
24
(610)
19-1/8
(486)
18-1/8
(460)
FXD-ACD60
Unit: inch(mm)
Dimensions
Model
A B C D E G
FXD-ACD60
42-3/4
(1085)
16-7/8
(427)
53-3/4
(1365)
24-1/2
(620)
15-1/2
(395)
14-1/2
(370)
3.1.3 Diagram of Unit Installation Space and Location
Diagram of installation space and location for outdoor unit (Notice: for best
performance of the outdoor unit, make sure its installation space conforms to the
following installation dimensions).
