DC Inverter U-match Series for R410A Unitary Split Air Conditioner
20

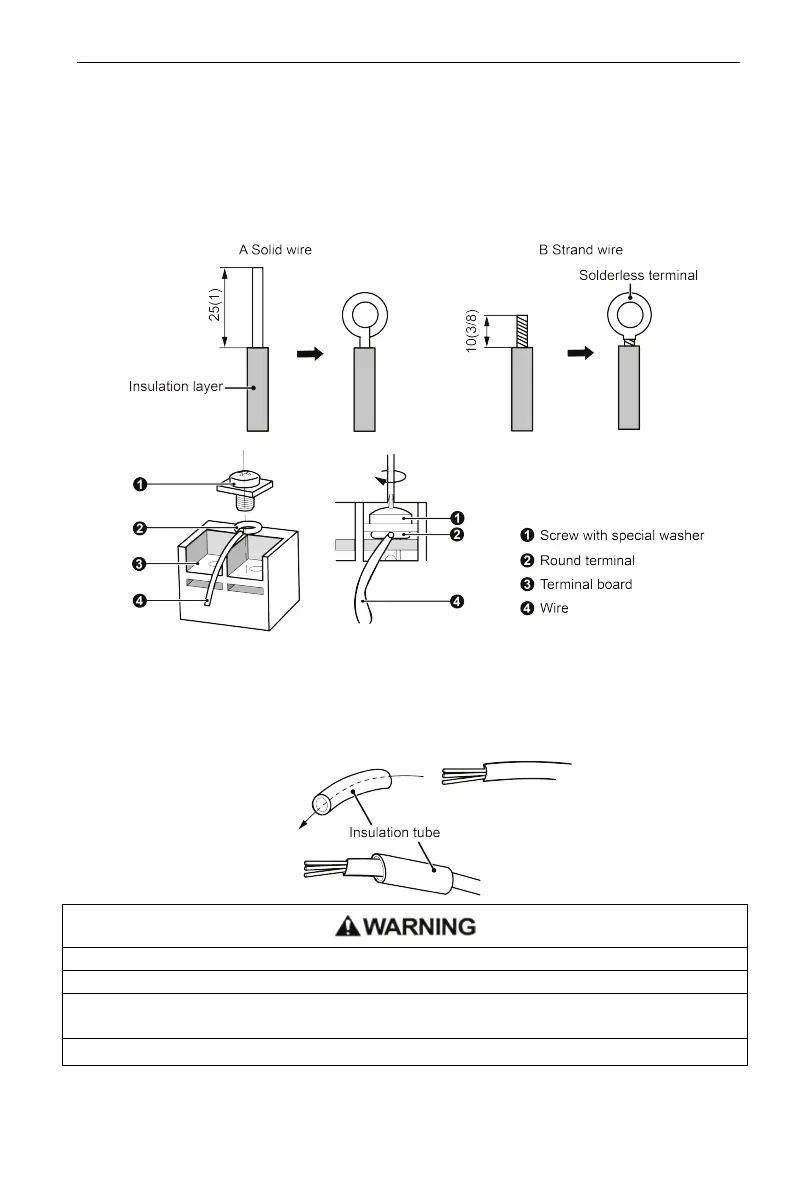

3) Use a round terminal fastener or clamp to fix the round terminal firmly
on the peeled wire end.
4) Locate the round terminal conduit. Use a screwdriver to replace it and
tighten up the terminal screw (as shown below).
Unit: mm(inch)
(3) How to connect the thermostat wires and power cords.
Lead the thermostat wires and power cords through the insulation tube (as
shown in the following figure).
①
Before working, please check whether the units are powered on.
②. Wrong wire connection may burn the electrical components.
③
Connect the wires firmly to the wiring box. Incomplete installation may lead to
fire hazard.
④. Ground wire should be connected.
