Battery
Handle used batteries carefully. Do not damage the battery in any way; a damaged battery
may release hazardous materials into the environment. Do not discard a used battery in
the garbage or a public landfill. Please comply with the regulations set up by your local hazardous
waste management agency to dispose of your used battery properly.

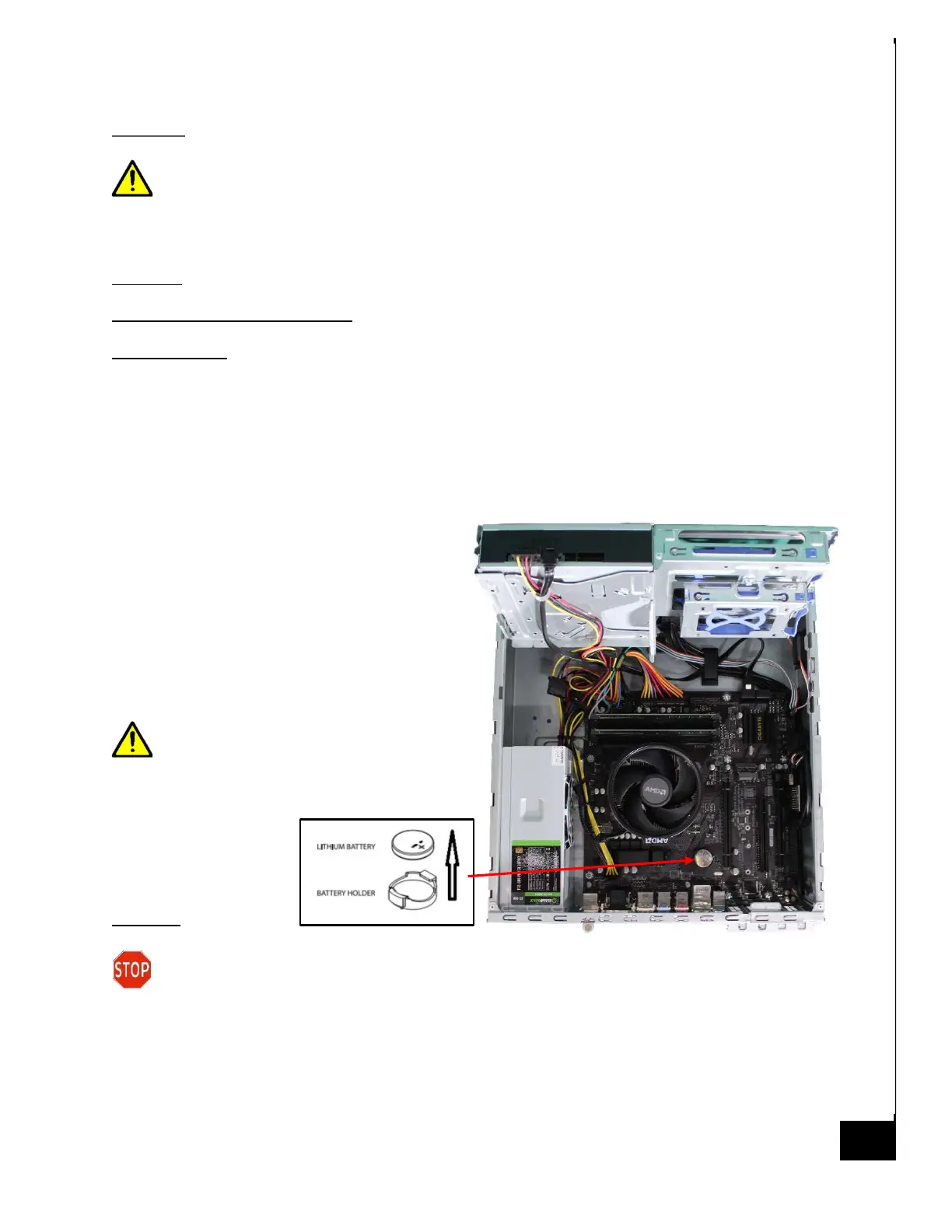

Location: The battery is located on the motherboard, see illustration below.
Type and number of fastenings: Interference snap fit
Tools required: None.
Procedure
Step 1: Ensure the computer is off, unplugged, and any potential energy is dissipated.
Step 2: Remove the side panel from the chassis as indicated in the “Chassis Cover” section of this
manual.
Step 3: Gently push aside the small clamp that
covers the edge of the battery. When the
battery is released, lift it out of the holder.
Reinstallation
Step 4: Using a new CR 2032 battery, gently
push aside the clamp covers and place the
battery into the holder.
Be sure to place the battery with
proper directionality, the positive
contact should be facing up as noted in the
pictorial diagram below.
Disposal:
Selective Treatment/ Special Handling Per Annex VII, Directive 2012/19/EU: A lithium
metal battery resides on the motherboard. The battery must be removed separately from
the motherboard and shall be disposed or recovered in compliance with Directive
2008/98/EC.
