Ace ACE10S 1 HP User Manual

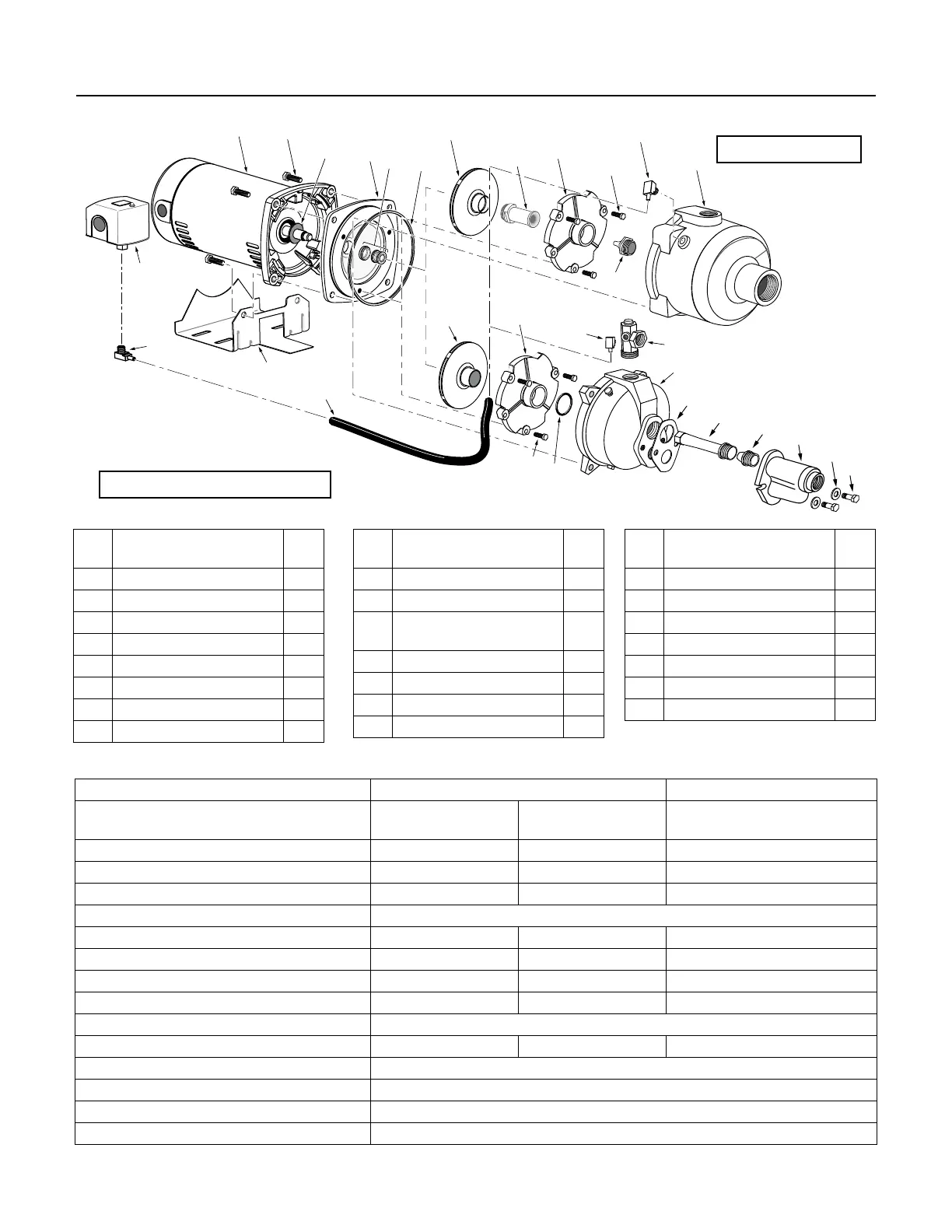

Parts Breakdown 11
1
1A
3
4
6
8
9
10
11
12
13
9
14
11
10
6
8
15
16
10
17
7
5
2
6125 1109
18
12
7
19
20
21
Model ACE5S
Models ACE5C, ACE10C
CONVERTIBLE (DEEP WELL) PUMPS SHALLOW WELL PUMPS
Part
Description
ACE5C
1/2 HP
ACE10C
1 HP
ACE5S
1/2 HP
Motor 218-590PKG J218-596PKG J218-590PKG
Pump Case 18623D020 18623D020 24357D020
Seal Plate 24452C000 24452C021 24452C000
20/40 Pressure Switch U217-1218
Overhaul Kit FPPK50 FPPK100 FPPK50
Ejector Kit* ACE-E5C ACE-E10C –
Pressure Regulator Kit*
†
FPAPR FPAPR –
Packer Jet Kit* FP4840 FP4840 –
Pressure switch tubing kit FPASFK-P2
Seal and Gasket Kit ACE-PK-3-5 ACE-PK-10 ACE-PK-3-5
Kits Include:
Overhaul Kit (1/2 HP) Key Nos 4, 5, 6, 7, 8, 12
Overhaul Kit (1 HP) Key Nos 4, 5, 6, 7, 8, 12
Ejector Kit
†
Key Nos 7, 12, 18, 19, 20(2), 21(2)
REPAIR PARTS/KITS
*Purchase separately—kit is not included with pump.
†
For Deep Well only.
Key
No.
Part
Description
Qty.
1 Motor 1
1A Motor Flange Screw 4
2 Slinger 1
3 Seal Plate 1
4 Shaft Seal 1
5 Seal Plate O-Ring 1
6 Impeller 1
7 Venturi 1
Key
No.
Part
Description
Qty.
8 Diffuser 1
9 Diffuser Plate Screw 3
10 1/4” NPT x 1/4” Barb
Elbow
2
11 Pump Body 1
12 Nozzle 1
13 Pressure Regulator 1
14 Diffuser Plate O-Ring 1
Key
No.
Part
Description
Qty.
15 Tubing 1
16 Base 1
17 Pressure switch 1
18 Ejector Gasket 1
19 Ejector Body 1
20 Washer 2
21 Ejector Capscrew 2
