Pump Setup
NOTE: Pump may be supplied attached to a shipping pallet.
Inspect pump for visible signs of damage. Remove and discard
pallet from pump before installation.
IMPORTANT: SELECT CORRECT
VOLTAGE
Ensure pump circuit breaker is OFF and pump is disconnected
from power source before changing the pump voltage.

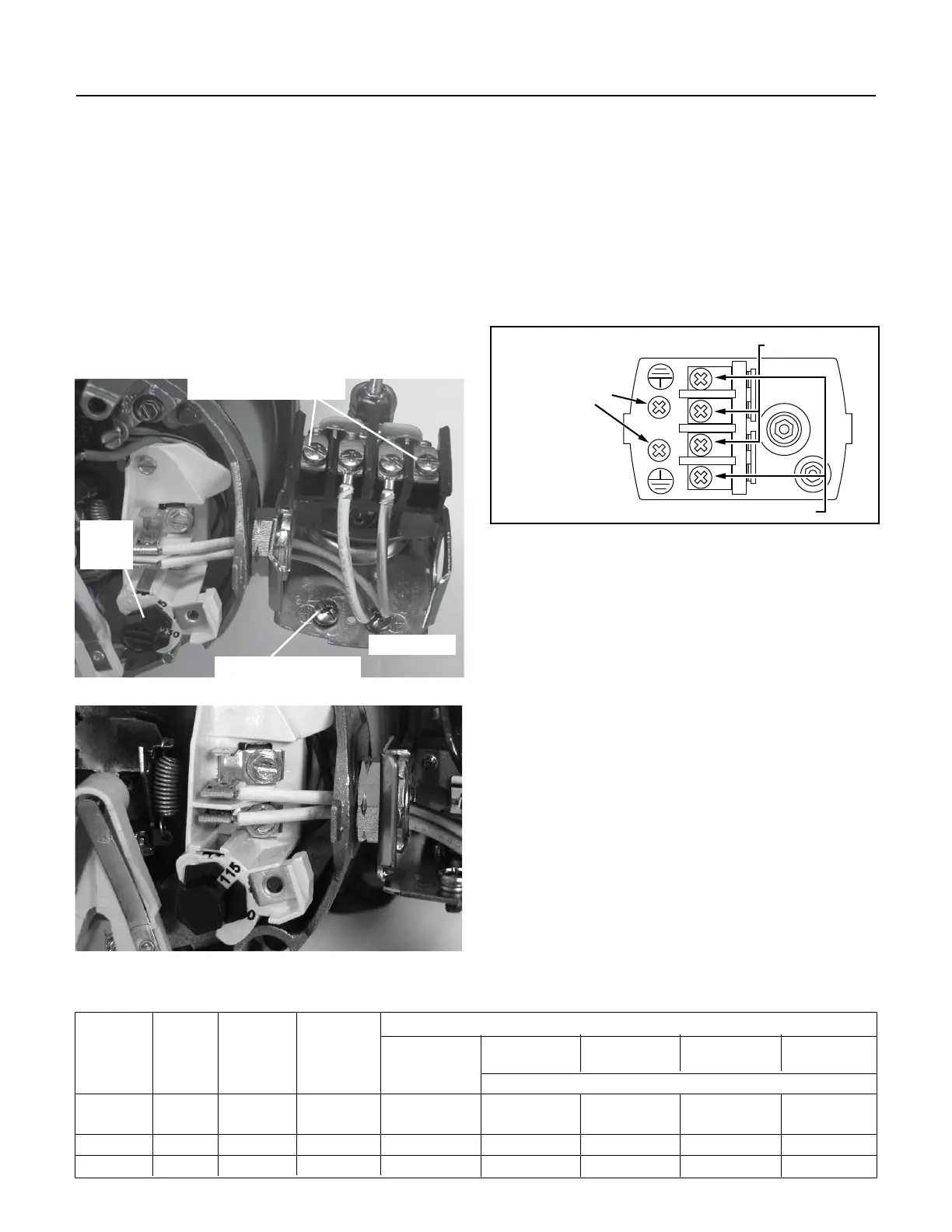

To change the voltage, the selector switch is located underneath
the access cover on the end of the motor. To access the switch,
remove the two screws holding the cover. To change the voltage
setting, turn the dial with a nut driver or a wrench so the correct
voltage shows in the cutout in the dial. The voltage number that
appears is the voltage setting for the pump. Replace the cover
and secure it with the screws.
WIRING YOUR PUMP
Ensure pump circuit breaker is OFF and pump is disconnected
from power before servicing or handling pump.
Remove the cover from the pressure switch. Connect the bare
copper ground to the ground screw in the pressure switch.
Connect the power supply to the terminals marked “From Line"
in the diagram below.
Ground
Connections
To Motor
From Line
Installation 3
WIRING CHART – RECOMMENDED WIRE AND FUSE SIZES
DISTANCE IN FEET(METERS) FROM MOTOR TO SUPPLY
0 - 100 101 - 200 201 - 300 301 - 400
Motor
Nameplate
Branch Fuse
(0 - 30) (31 - 61) (62 - 91) (92 - 122)
Model HP Volts Amps Rating* Amp AWG WIRE SIZE (mm
2
)
ACE5S
ACE5C
1/2 115/230 12.4/6.2 20/15 12/14(3/2) 10/14(5.5/2) 8/14(8.4/2) 6/12(14/3)
ACE10S 1 115/230 18.6/9.3 20/15 12/14(3/2) 18/14(8.4/2) 6/14(14/2) 6/12(14/3)
ACE10C 1 115/230 14.8/7.4 20/15 12/14(3/2) 8/14(8.4/2) 6/14(14/2) 6/12(14/3)
Ground Wire Connection
Power Supply Connections
Voltage
Change
Dial
Pressure Switch
Voltage Set to 230 Volts
Voltage Set to 115 Volts
*Time delay fuse or circuit breakers are recommended in any motor circuit.
