Installation & Assembly Instructions
Some assembly is required for your new air conditioner. Please read and follow these
instructions carefully.
This air conditioner is designed to be installed in a standard double-hung window with
a window width between 23" and 36" (584mm-914 mm).
The air conditioner can be installed without the accordion panels to fit in a narrow
window opening. See the window dimensions.
The Lower Sash (the lower part of the window that moves up and down) must allow
for 14.5" of vertical dearance when open. (See Fig.1).
All supporting parts must be secured to firm wood, masonry, or metal.
The electrical outlet must be within reach of the power cord.
14.5inch
368mm
23-36inch
584-914mm
Interior Wall
Stool
Sill
Offset
Exterior
Wall

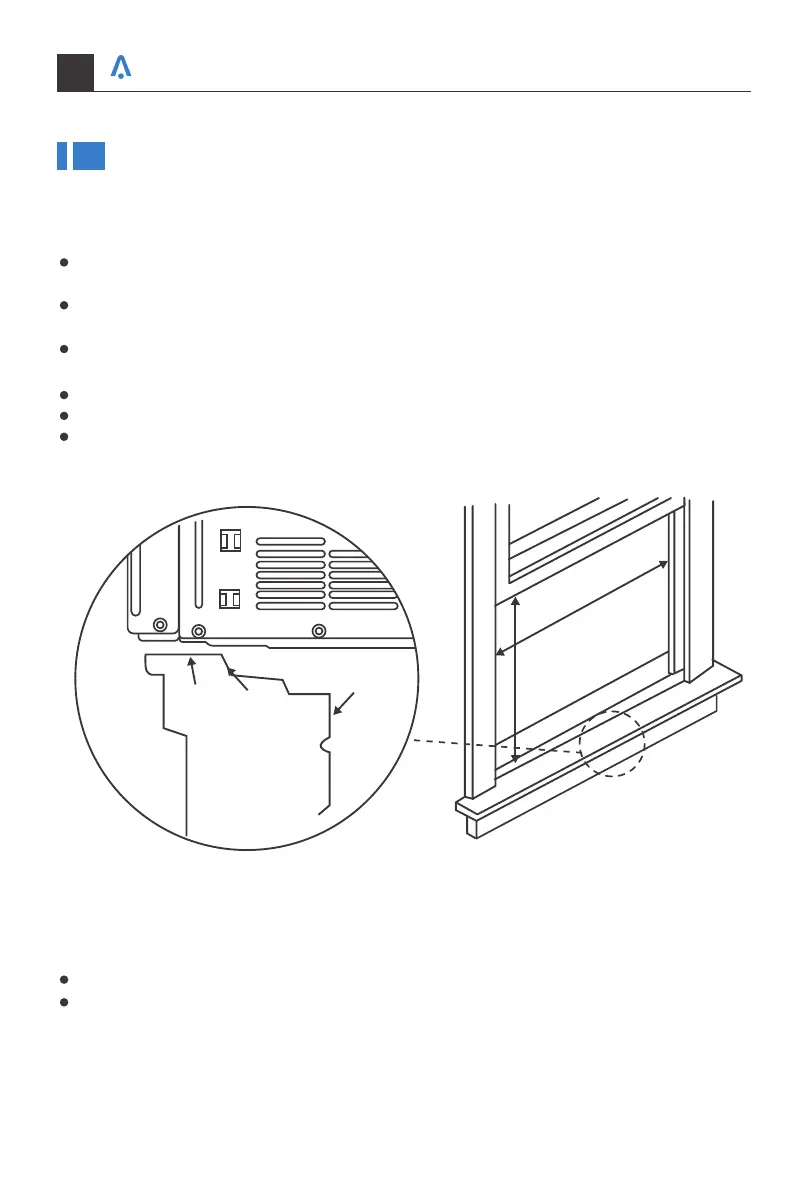

Fig.1
Save the product packaging and installation instructions for future reference.
Store the air conditioner in the product box when not in use for an extended period
of time.
NOTE:
Your home in sync
06
The air conditioner should be tilted about 3° for better drainage of condensate and
rainwater.
