Using the SIM card slot (only for Wi-Fi+3G
models)
Certain tablets include a SIM slot for internet access. To take full advantage of
your tablet’s Internet capabilities, you should install a SIM card with data
subscription
before
turning on your tablet.
See “Installing a SIM card (only for Wi-Fi+3G models)” on page 51.
3 Micro HDMI (Type D)
connector
Connects to an HDMI cable with a Type D
connector.
4 DC-in jack Connects to the DC power supply.
5 Micro USB connector
(Slave)
Connects to a computer with a USB cable.
6 USB connector (Host) Connects USB devices to your tablet.
7 Reset button Insert a small thin object (such as a paperclip) to
reset power to the tablet.

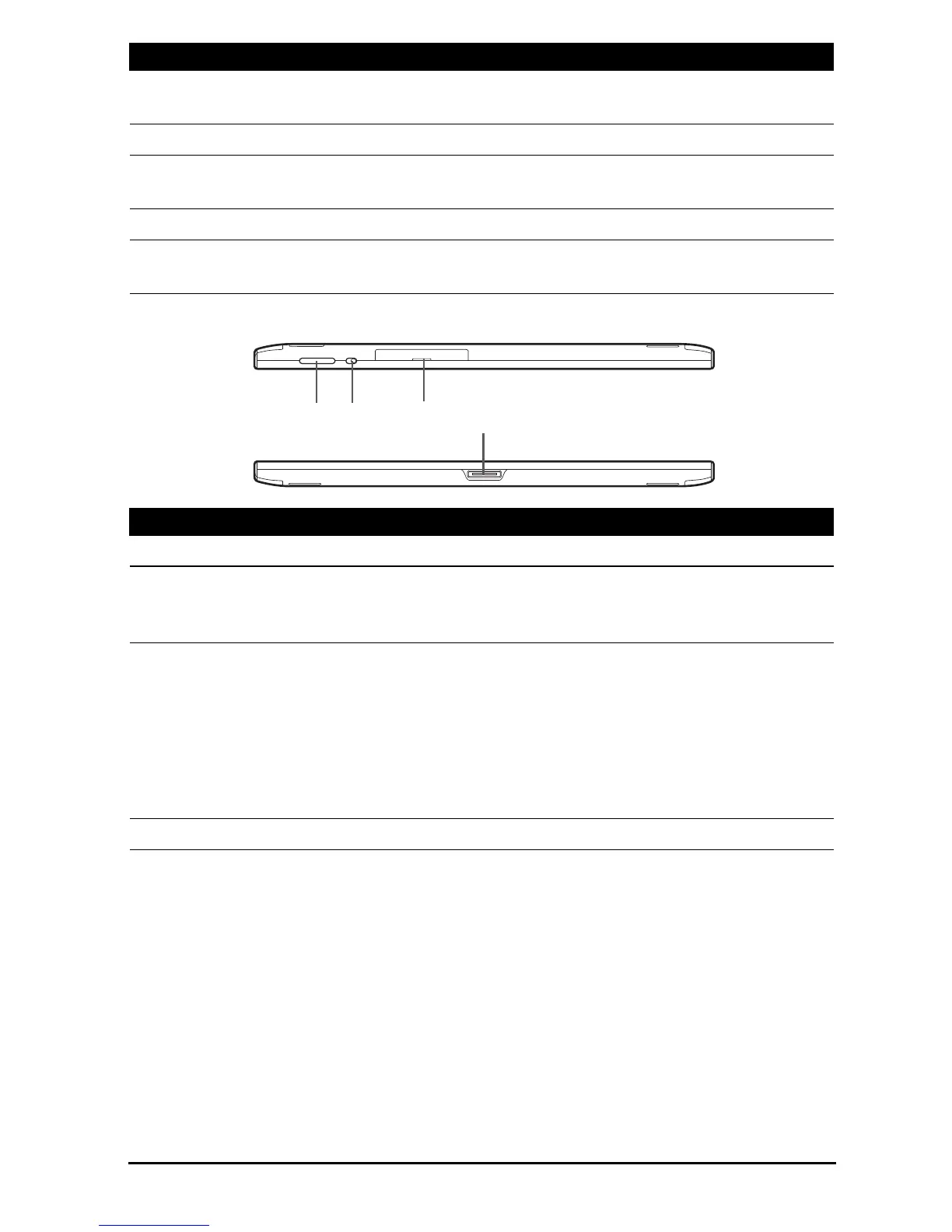

No. Item Description
1 Volume control key Increase and decrease the tablet volume.
2 Screen rotation lock
switch
Use this switch to lock the screen rotation or
allow the screen to match the tablet’s
orientation.
3 Card slot cover Insert a micro SD card into the slot under this
cover.
See “Inserting a micro SD card (optional)” on
page 24.
A SIM card slot (only for Wi-Fi+3G models)
allows you to access the Internet if you have a
cellular data subscription.
4 Docking port Connect your tablet to the dock accessory.
No. Item Description
