24
VR901 75A 335101 CFVR 100 OHM +-20%
VR902 75A 335303 CFVR 30K OHM +-20%
[GND] 9A 203 8 BRASS PIN
[SW101] 77A 602 1 CJ TACT SWITCH TSVB-2
[SW102] 77A 602 1 CJ TACT SWITCH TSVB-2
[SW103] 77A 602 1 CJ TACT SWITCH TSVB-2
[SW104] 77A 602 1 CJ TACT SWITCH TSVB-2

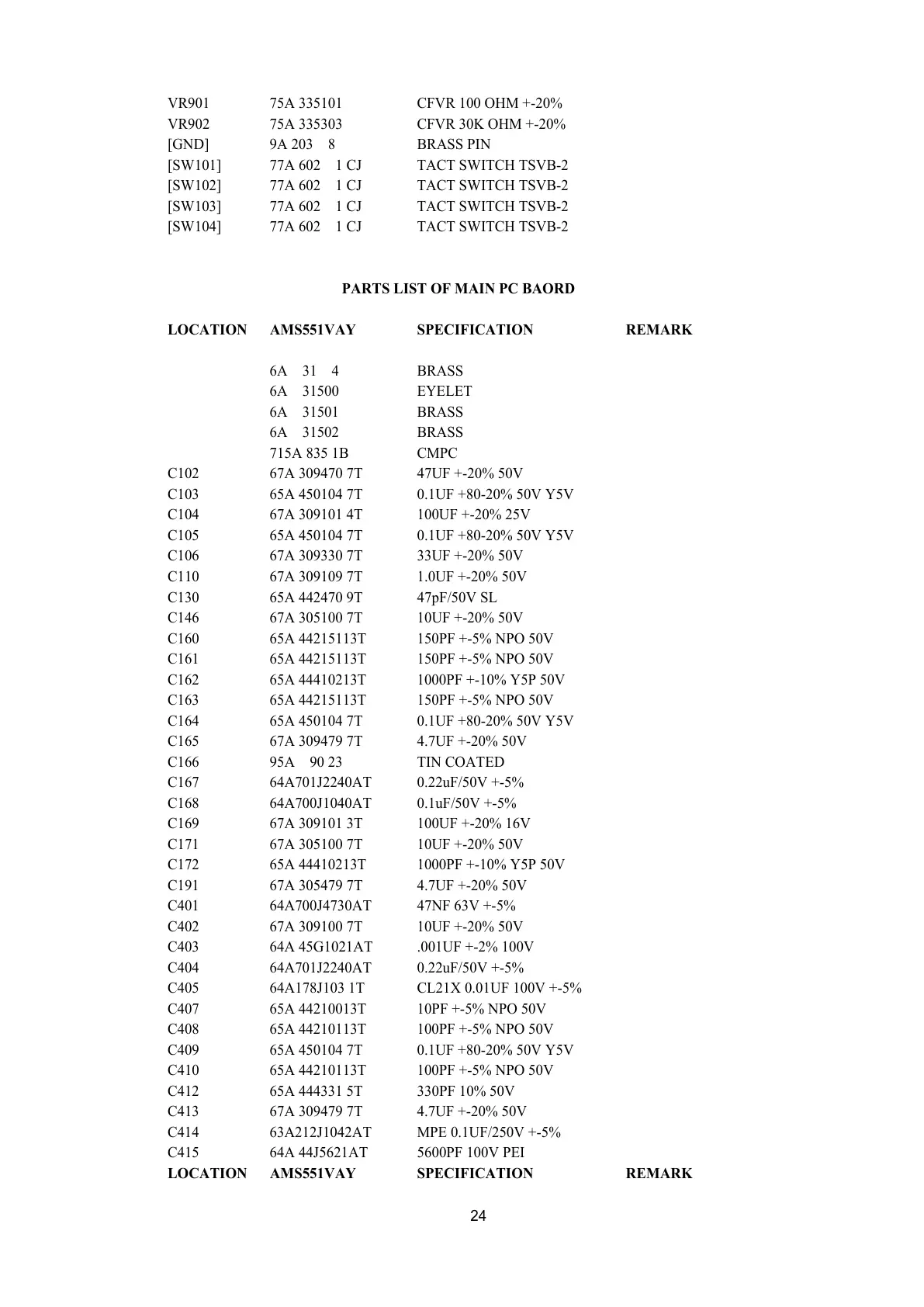

PARTS LIST OF MAIN PC BAORD
LOCATION AMS551VAY SPECIFICATION REMARK
6A 31 4 BRASS
6A 31500 EYELET
6A 31501 BRASS
6A 31502 BRASS
715A 835 1B CMPC
C102 67A 309470 7T 47UF +-20% 50V
C103 65A 450104 7T 0.1UF +80-20% 50V Y5V
C104 67A 309101 4T 100UF +-20% 25V
C105 65A 450104 7T 0.1UF +80-20% 50V Y5V
C106 67A 309330 7T 33UF +-20% 50V
C110 67A 309109 7T 1.0UF +-20% 50V
C130 65A 442470 9T 47pF/50V SL
C146 67A 305100 7T 10UF +-20% 50V
C160 65A 44215113T 150PF +-5% NPO 50V
C161 65A 44215113T 150PF +-5% NPO 50V
C162 65A 44410213T 1000PF +-10% Y5P 50V
C163 65A 44215113T 150PF +-5% NPO 50V
C164 65A 450104 7T 0.1UF +80-20% 50V Y5V
C165 67A 309479 7T 4.7UF +-20% 50V
C166 95A 90 23 TIN COATED
C167 64A701J2240AT 0.22uF/50V +-5%
C168 64A700J1040AT 0.1uF/50V +-5%
C169 67A 309101 3T 100UF +-20% 16V
C171 67A 305100 7T 10UF +-20% 50V
C172 65A 44410213T 1000PF +-10% Y5P 50V
C191 67A 305479 7T 4.7UF +-20% 50V
C401 64A700J4730AT 47NF 63V +-5%
C402 67A 309100 7T 10UF +-20% 50V
C403 64A 45G1021AT .001UF +-2% 100V
C404 64A701J2240AT 0.22uF/50V +-5%
C405 64A178J103 1T CL21X 0.01UF 100V +-5%
C407 65A 44210013T 10PF +-5% NPO 50V
C408 65A 44210113T 100PF +-5% NPO 50V
C409 65A 450104 7T 0.1UF +80-20% 50V Y5V
C410 65A 44210113T 100PF +-5% NPO 50V
C412 65A 444331 5T 330PF 10% 50V
C413 67A 309479 7T 4.7UF +-20% 50V
C414 63A212J1042AT MPE 0.1UF/250V +-5%
C415 64A 44J5621AT 5600PF 100V PEI
LOCATION AMS551VAY SPECIFICATION REMARK
