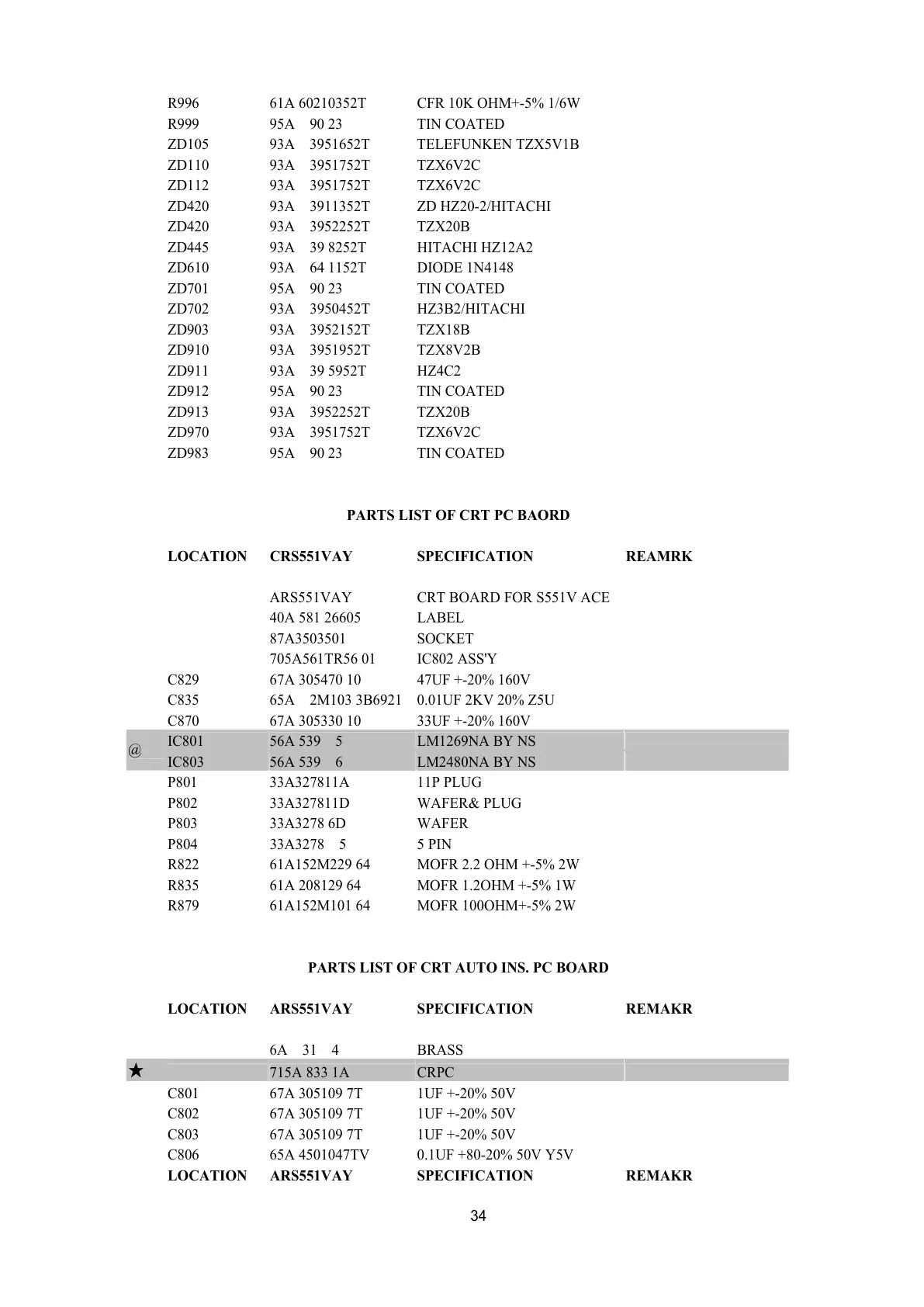

Acer AC511 SERIES User Manual

34
R996 61A 60210352T CFR 10K OHM+-5% 1/6W
R999 95A 90 23 TIN COATED
ZD105 93A 3951652T TELEFUNKEN TZX5V1B
ZD110 93A 3951752T TZX6V2C
ZD112 93A 3951752T TZX6V2C
ZD420 93A 3911352T ZD HZ20-2/HITACHI
ZD420 93A 3952252T TZX20B
ZD445 93A 39 8252T HITACHI HZ12A2
ZD610 93A 64 1152T DIODE 1N4148
ZD701 95A 90 23 TIN COATED
ZD702 93A 3950452T HZ3B2/HITACHI
ZD903 93A 3952152T TZX18B
ZD910 93A 3951952T TZX8V2B
ZD911 93A 39 5952T HZ4C2
ZD912 95A 90 23 TIN COATED
ZD913 93A 3952252T TZX20B
ZD970 93A 3951752T TZX6V2C
ZD983 95A 90 23 TIN COATED
PARTS LIST OF CRT PC BAORD
LOCATION CRS551VAY SPECIFICATION REAMRK
ARS551VAY CRT BOARD FOR S551V ACE
40A 581 26605 LABEL
87A3503501 SOCKET
705A561TR56 01 IC802 ASS'Y
C829 67A 305470 10 47UF +-20% 160V
C835 65A 2M103 3B6921 0.01UF 2KV 20% Z5U
C870 67A 305330 10 33UF +-20% 160V
IC801 56A 539 5 LM1269NA BY NS
@
IC803 56A 539 6 LM2480NA BY NS
P801 33A327811A 11P PLUG
P802 33A327811D WAFER& PLUG
P803 33A3278 6D WAFER
P804 33A3278 5 5 PIN
R822 61A152M229 64 MOFR 2.2 OHM +-5% 2W
R835 61A 208129 64 MOFR 1.2OHM +-5% 1W
R879 61A152M101 64 MOFR 100OHM+-5% 2W
PARTS LIST OF CRT AUTO INS. PC BOARD
LOCATION ARS551VAY SPECIFICATION REMAKR
6A 31 4 BRASS
★
715A 833 1A CRPC
C801 67A 305109 7T 1UF +-20% 50V
C802 67A 305109 7T 1UF +-20% 50V
C803 67A 305109 7T 1UF +-20% 50V
C806 65A 4501047TV 0.1UF +80-20% 50V Y5V
LOCATION ARS551VAY SPECIFICATION REMAKR
