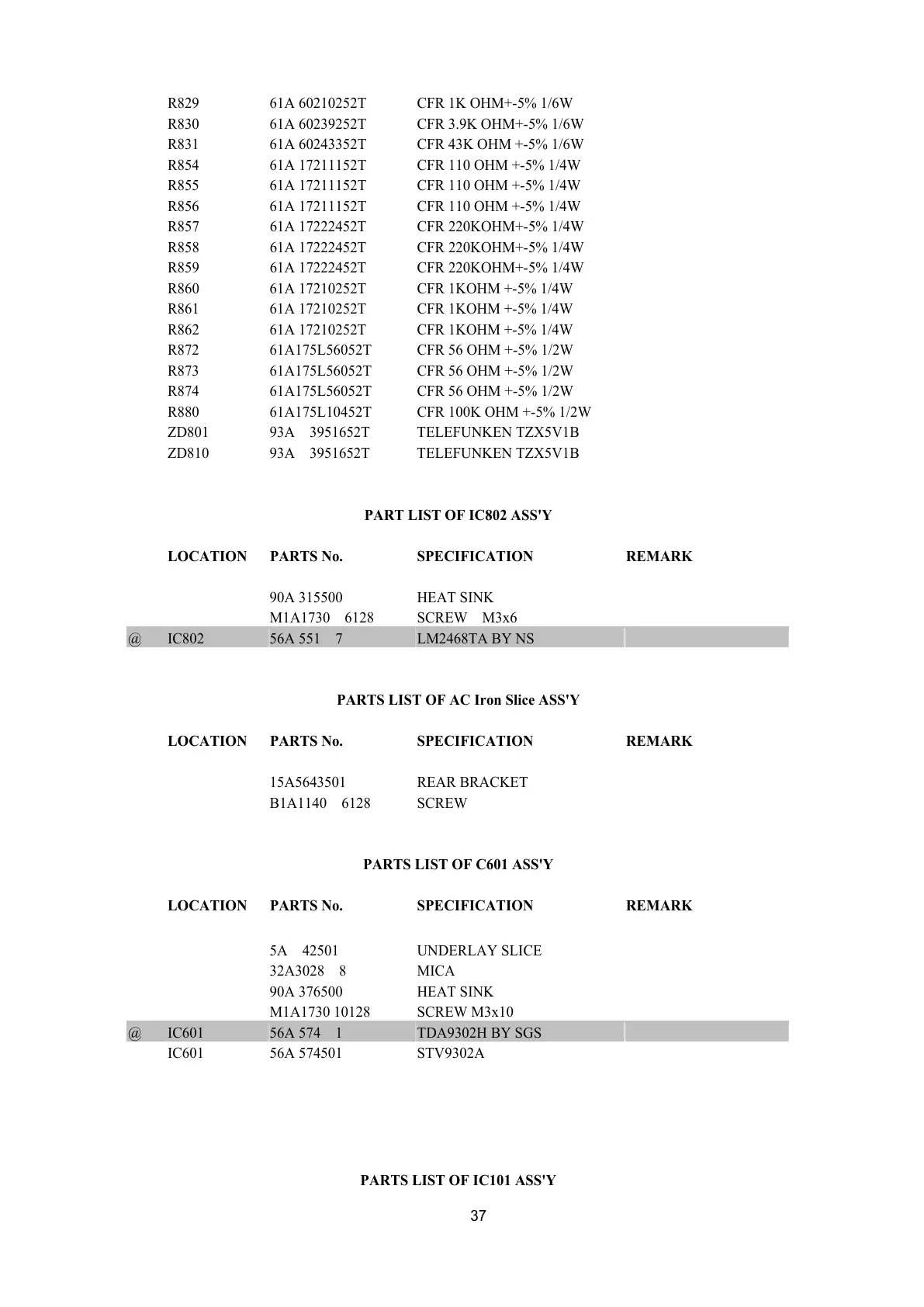

37
R829 61A 60210252T CFR 1K OHM+-5% 1/6W
R830 61A 60239252T CFR 3.9K OHM+-5% 1/6W
R831 61A 60243352T CFR 43K OHM +-5% 1/6W
R854 61A 17211152T CFR 110 OHM +-5% 1/4W
R855 61A 17211152T CFR 110 OHM +-5% 1/4W
R856 61A 17211152T CFR 110 OHM +-5% 1/4W
R857 61A 17222452T CFR 220KOHM+-5% 1/4W
R858 61A 17222452T CFR 220KOHM+-5% 1/4W
R859 61A 17222452T CFR 220KOHM+-5% 1/4W
R860 61A 17210252T CFR 1KOHM +-5% 1/4W
R861 61A 17210252T CFR 1KOHM +-5% 1/4W
R862 61A 17210252T CFR 1KOHM +-5% 1/4W
R872 61A175L56052T CFR 56 OHM +-5% 1/2W
R873 61A175L56052T CFR 56 OHM +-5% 1/2W
R874 61A175L56052T CFR 56 OHM +-5% 1/2W
R880 61A175L10452T CFR 100K OHM +-5% 1/2W
ZD801 93A 3951652T TELEFUNKEN TZX5V1B
ZD810 93A 3951652T TELEFUNKEN TZX5V1B
PART LIST OF IC802 ASS'Y
LOCATION PARTS No. SPECIFICATION REMARK
90A 315500 HEAT SINK
M1A1730 6128 SCREW M3x6
@ IC802 56A 551 7 LM2468TA BY NS
PARTS LIST OF AC Iron Slice ASS'Y
LOCATION PARTS No. SPECIFICATION REMARK
15A5643501 REAR BRACKET
B1A1140 6128 SCREW
PARTS LIST OF C601 ASS'Y
LOCATION PARTS No. SPECIFICATION REMARK
5A 42501 UNDERLAY SLICE
32A3028 8 MICA
90A 376500 HEAT SINK
M1A1730 10128 SCREW M3x10
@ IC601 56A 574 1 TDA9302H BY SGS
IC601 56A 574501 STV9302A
PARTS LIST OF IC101 ASS'Y
