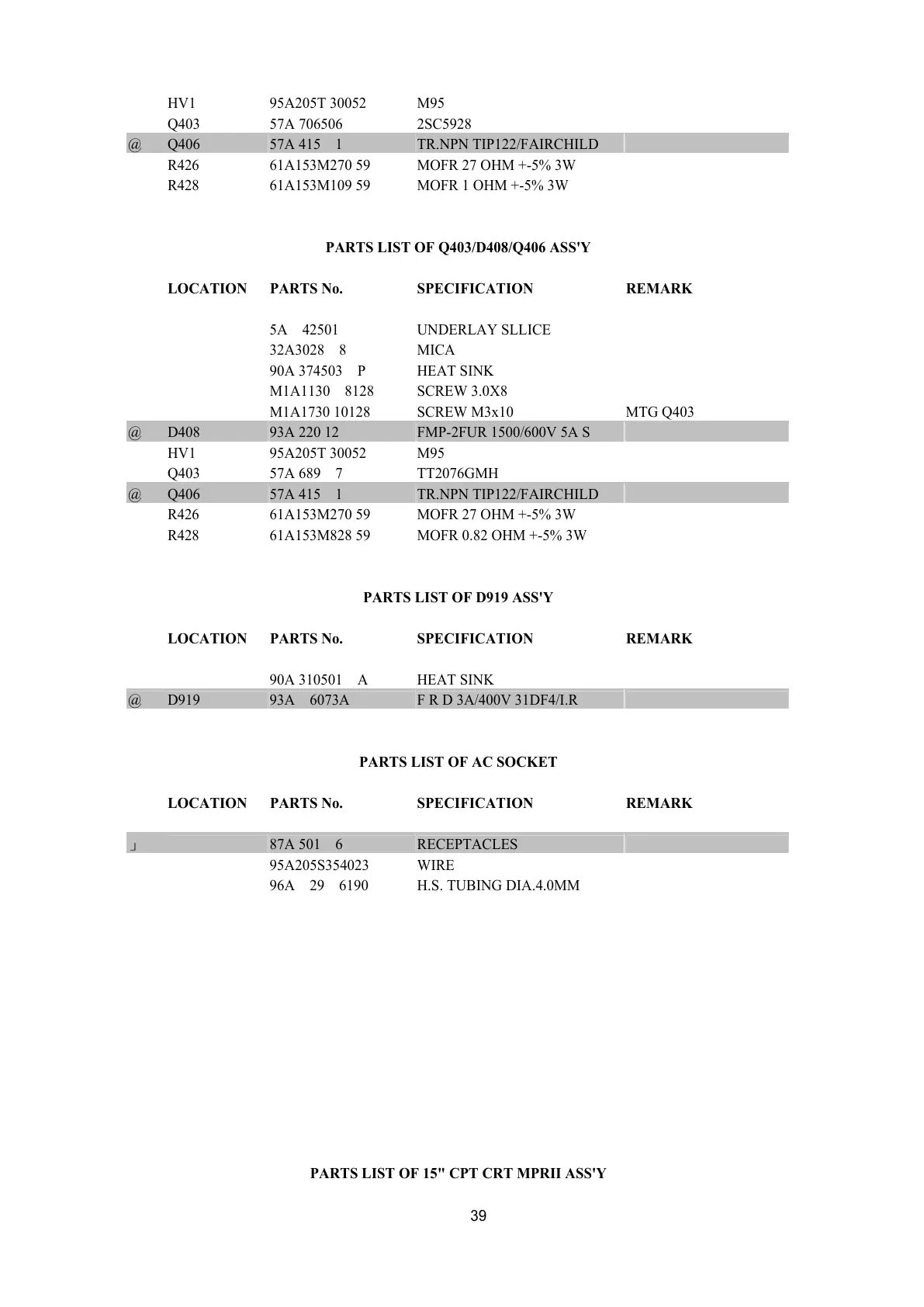

39
HV1 95A205T 30052 M95
Q403 57A 706506 2SC5928
@ Q406 57A 415 1 TR.NPN TIP122/FAIRCHILD
R426 61A153M270 59 MOFR 27 OHM +-5% 3W
R428 61A153M109 59 MOFR 1 OHM +-5% 3W
PARTS LIST OF Q403/D408/Q406 ASS'Y
LOCATION PARTS No. SPECIFICATION REMARK
5A 42501 UNDERLAY SLLICE
32A3028 8 MICA
90A 374503 P HEAT SINK
M1A1130 8128 SCREW 3.0X8
M1A1730 10128 SCREW M3x10 MTG Q403
@ D408 93A 220 12 FMP-2FUR 1500/600V 5A S
HV1 95A205T 30052 M95
Q403 57A 689 7 TT2076GMH
@ Q406 57A 415 1 TR.NPN TIP122/FAIRCHILD
R426 61A153M270 59 MOFR 27 OHM +-5% 3W
R428 61A153M828 59 MOFR 0.82 OHM +-5% 3W
PARTS LIST OF D919 ASS'Y
LOCATION PARTS No. SPECIFICATION REMARK
90A 310501 A HEAT SINK
@ D919 93A 6073A F R D 3A/400V 31DF4/I.R
PARTS LIST OF AC SOCKET
LOCATION PARTS No. SPECIFICATION REMARK
」
87A 501 6 RECEPTACLES
95A205S354023 WIRE
96A 29 6190 H.S. TUBING DIA.4.0MM
PARTS LIST OF 15" CPT CRT MPRII ASS'Y
