Acer AL2216W

19
MACHINE DISASSEMBLY
AND ASSEMBLY

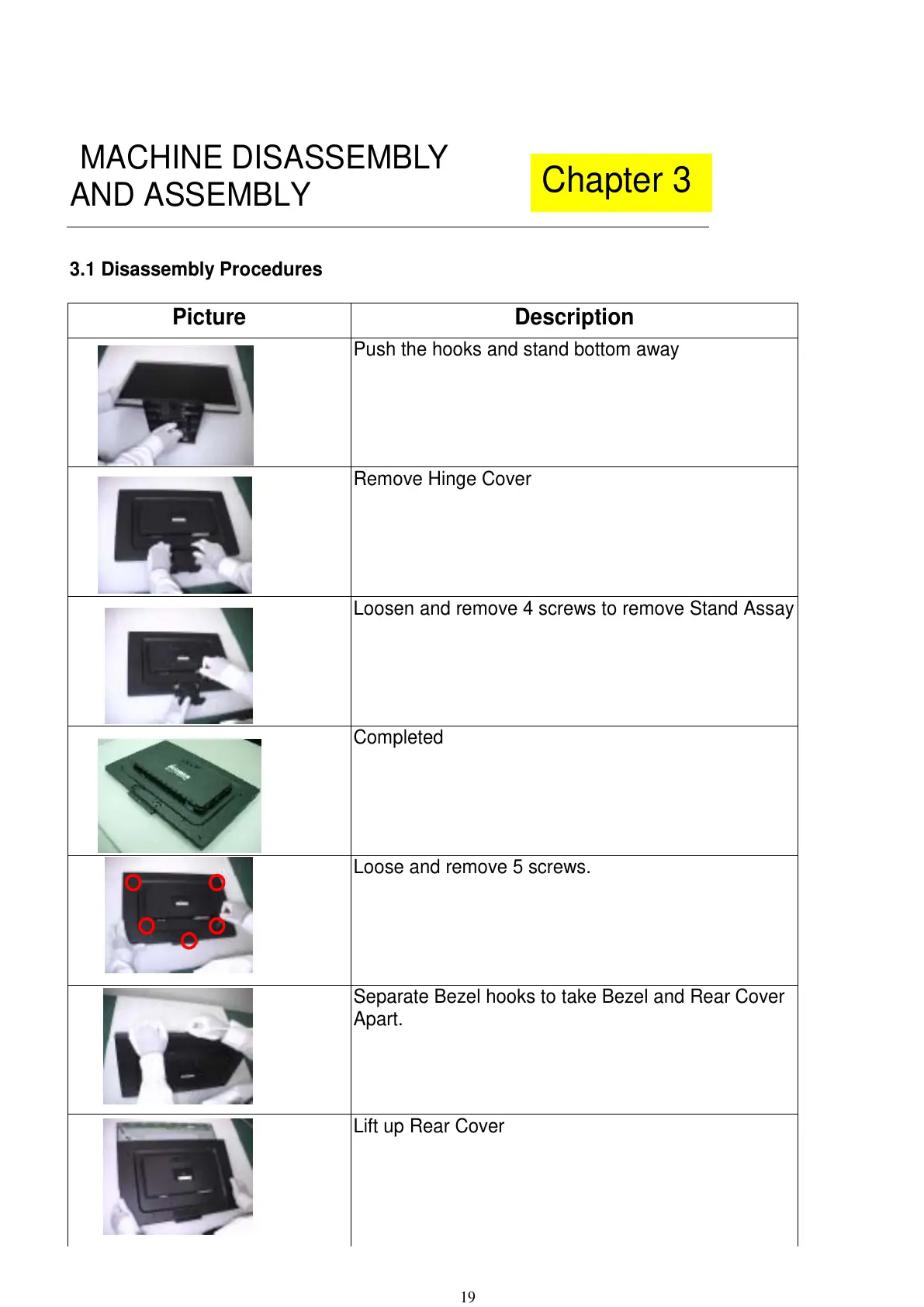

3.1 Disassembly Procedures
Picture Description
Push the hooks and stand bottom away
Remove Hinge Cover
Loosen and remove 4 screws to remove Stand Assay
Completed
Loose and remove 5 screws.
Separate Bezel hooks to take Bezel and Rear Cover
Apart.
Lift up Rear Cover
